Removal








STEERING COLUMN: MULTIPLEX TILT AND TELESCOPIC ECU: REMOVAL

REMOVAL

1. REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY
2. REMOVE INSTRUMENT PANEL LOWER LH
3. REMOVE MULTIPLEX TILT AND TELESCOPIC ECU

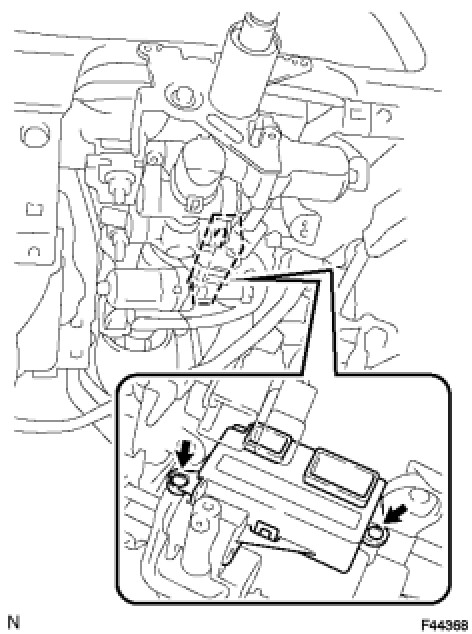

(a) Remove the 2 screws and multiplex tilt and telescopic ECU.
