Front Passenger Side Power Window Auto Up / Down Function Does Not Operate With Front Passenger Side Power Window Switch: Procedure

1. Check that the door glass can be operated manually.

NG → OTHER PROBLEM

OK: Go to next step

1. Turn the ignition switch ON.

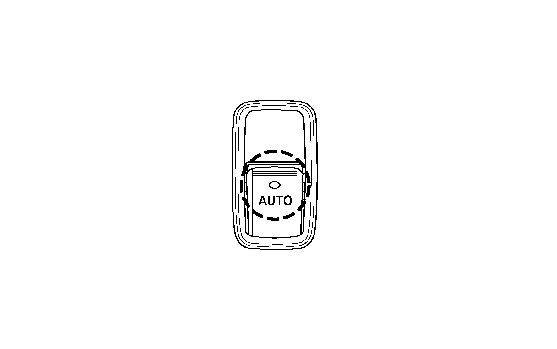

   Fig 1: Identifying Power Window Regulator Switch

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Operate the power window switch.
3. Check the blinking pattern of the illumination as shown in the illustration.

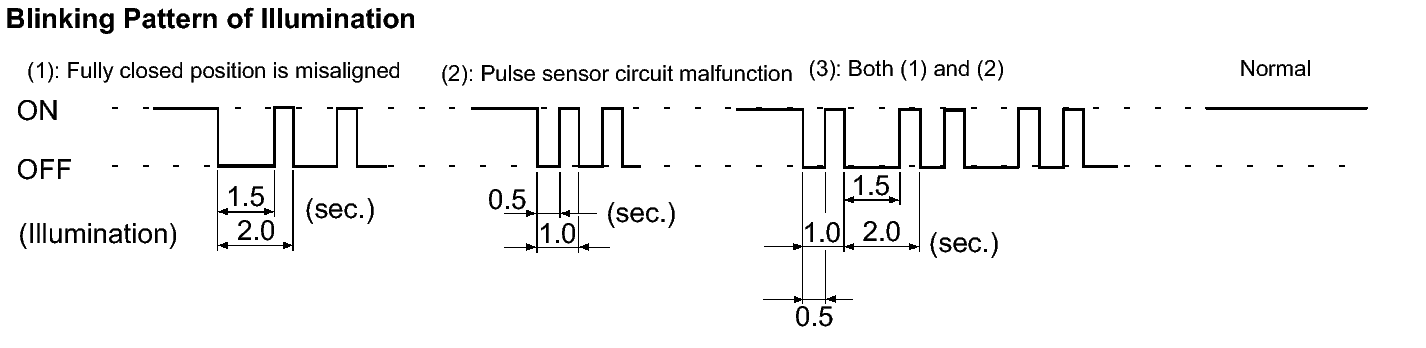

   Fig 2: Identifying Blinking Pattern Of Power Window Regulator Switch

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   1. If pattern (1) is displayed, proceed to A.
   2. If pattern (2) or (3) is displayed, proceed to B.
   3. If the normal pattern is displayed, proceed to C.

C → REPLACE POWER WINDOW REGULATOR SWITCH (PASSENGER SIDE)

B → See step   4

A: Go to next step

1. Turn the ignition switch ON.
2. Open the door glass.
3. Fully pull up the power window switch until the door glass is fully closed.
4. Continue to hold the switch 1 second or more even after the door glass is fully closed.
5. Check that the AUTO UP/DOWN function operates completely.

OK → END

NG: Go to next step

1. Remove the passenger side door trim board.

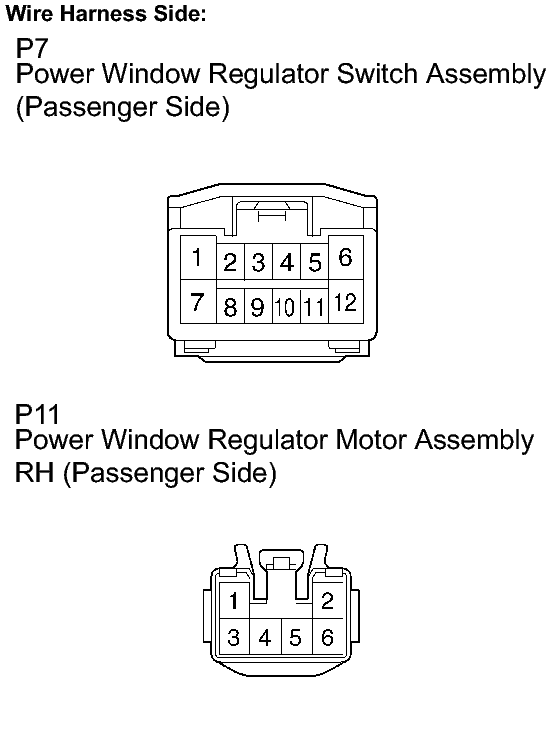

   Fig 3: Identifying P7 Power Window Switch And P11 Power Window Motor Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the P7 power window switch connector.
3. Disconnect the P11 power window motor connector.
4. Check the continuity between the wire harness side connectors. Standard:

   Standard resistance

   Terminal No.	Specified Condition
   P7-5 - P11-4	Below 1 Ω
   P7-3 - P11-5	Below 1 Ω
   P7-4 - P11-3	Below 1 Ω
   P7-8 - P11-6	Below 1 Ω
   P7-3 - Body ground	No continuity
   P7-4 - Body ground	No continuity
   P7-5 - Body ground	No continuity
   P7-8 - Body ground	No continuity

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK → REPLACE POWER WINDOW REGULATOR MOTOR (PASSENGER SIDE)
