Manual Up / Down Function Does Not Operate On Passenger Side Only: Wiring Diagram

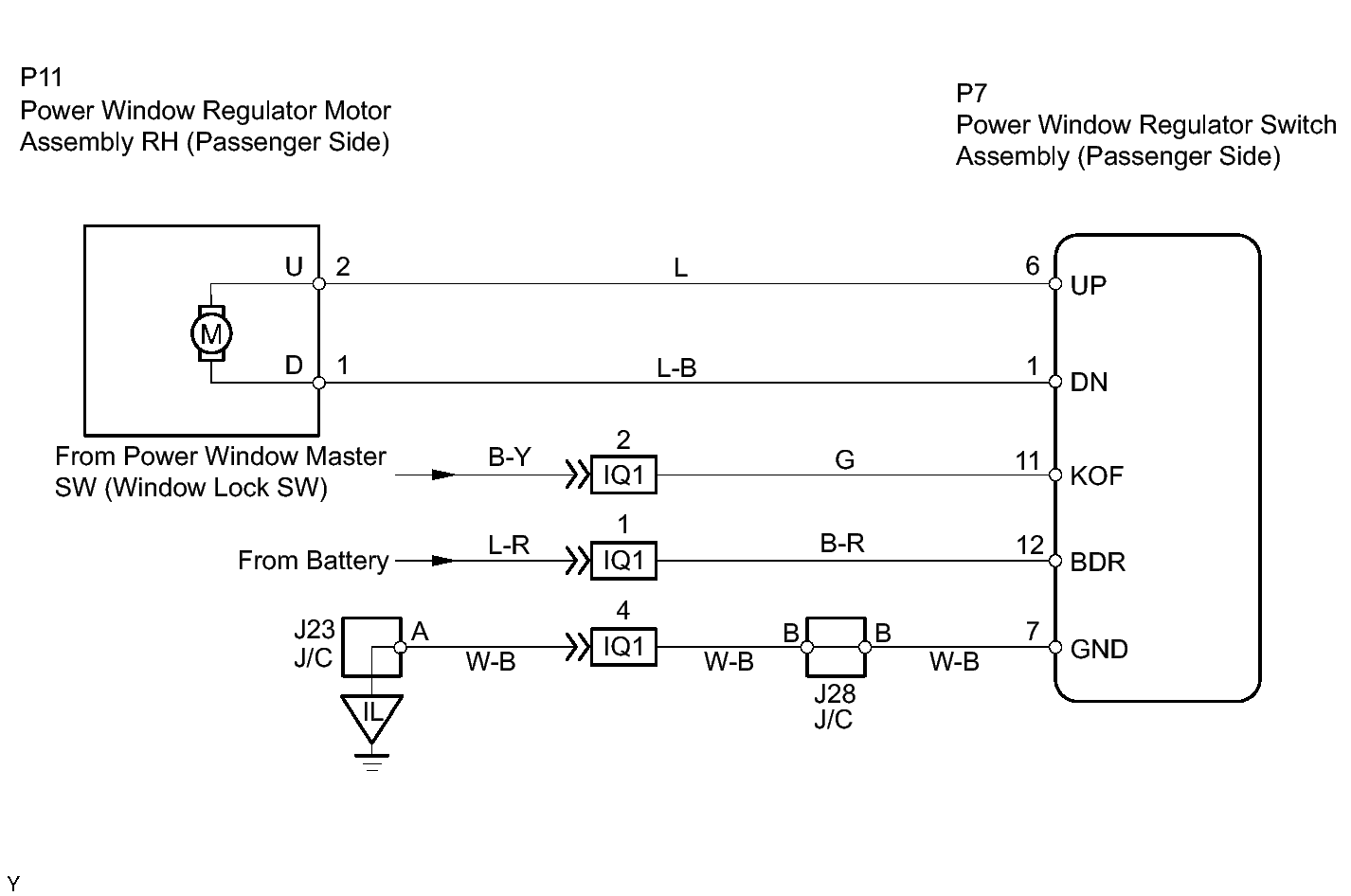

Fig 1: Identifying Power Window Regulator Motor Assembly Wiring Diagram
GTY120590Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
