Manual Up / Down Function Does Not Operate On Rear RH Only: Procedure

1. Remove the power window switch (the connector is connected).

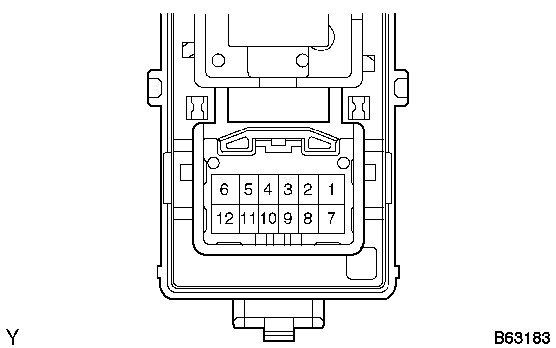

   Fig 1: Identifying Power Window Regulator Switch Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Check the continuity between terminal 7 and the body ground.

   Standard resistance

   Below 1 Ω

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Check the voltage between terminals 12 and 7.
   Fig 2: Identifying Power Window Regulator Switch Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard voltage

   10 to 14 V (Constant)

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR (POWER WINDOW REGULATOR SWITCH - POWER SOURCE)

OK: Go to next step

1. Turn the ignition switch ON.
   Fig 3: Identifying Power Window Regulator Switch Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Check the voltage between terminals 11 and 7 when operating the window lock switch on the master switch.

   Standard voltage

   Terminal No.	Window Lock Switch	Specified Condition
   11 - 7	ON	5 V
   	OFF	Less than 1 V

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR (WINDOW REGULATOR SWITCH - WINDOW REGULATOR MASTER SWITCH)

OK: Go to next step

1. Disconnect the P9 power window switch connector.

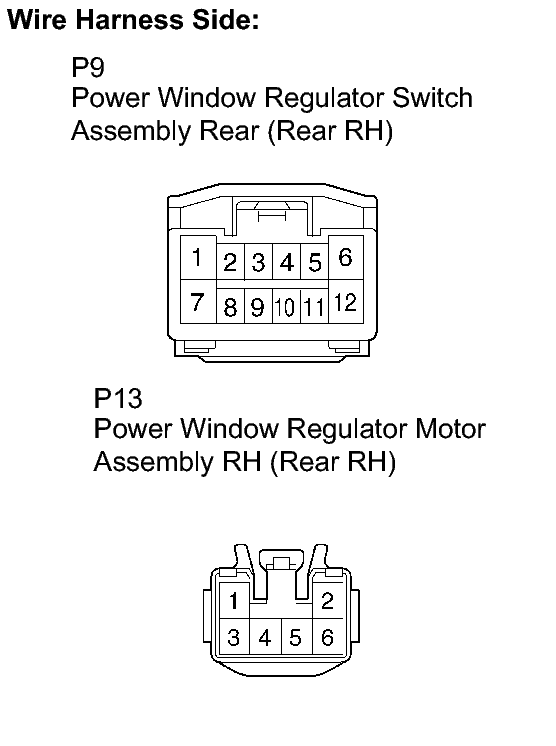

   Fig 4: Identifying Power Window Regulator Switch & Power Window Regulator Motor Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the rear door trim RH.
3. Disconnect the P13 power window motor connector.
4. Check the continuity between the wire harness side connectors.

   Standard resistance

   Terminal No.	Specified Condition
   P9-1 - P13-2	Below 1 Ω
   P9-6 - P13-1	Below 1 Ω
   P9-1 - Body ground	No continuity
   P9-6 - Body ground	No continuity

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Remove the motor.

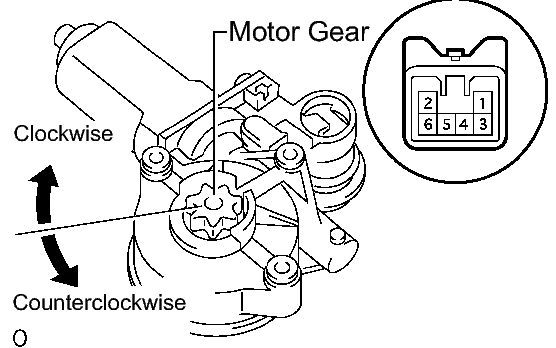

   Fig 5: Identifying Power Window Regulator Motor (Rear RH)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Apply battery voltage to the connector between terminals 1 and 2.
3. Check that the motor rotates smoothly.
   NOTE:

   Do not apply battery voltage to the terminals except 1 and 2.

   Standard

   Terminal No.	Motor Gear Rotation
   Battery positive voltage → 1 Battery negative voltage → 2	Clockwise
   Battery positive voltage → 2 Battery negative voltage → 1	Counterclockwise

NG → REPLACE POWER WINDOW REGULATOR MOTOR (REAR RH)

OK → REPLACE POWER WINDOW REGULATOR SWITCH (REAR RH)
