Lexus
>>
2009
>>
GX 470
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
OEM System Circuits
>>
Engine Immobiliser System
>>
Notes
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Engine Immobiliser System: Notes

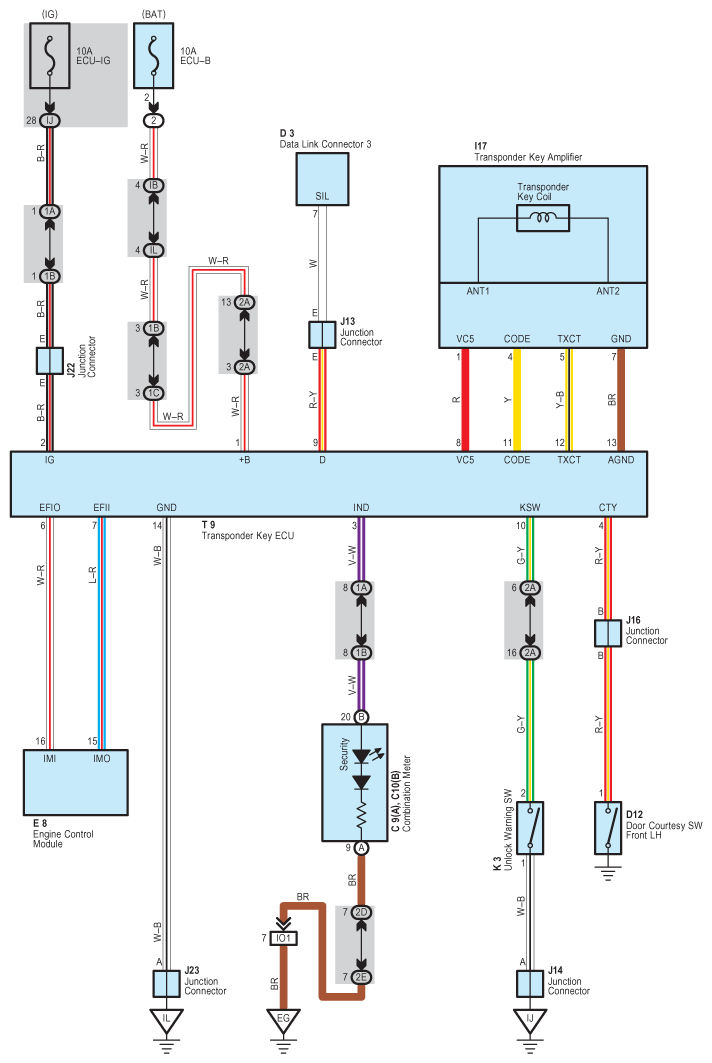

Fig 1: Engine Immobiliser System - Circuit Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
