AIR CONDITIONING: INTEGRATION CONTROL AND PANEL: DISASSEMBLY

DISASSEMBLY

1. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL

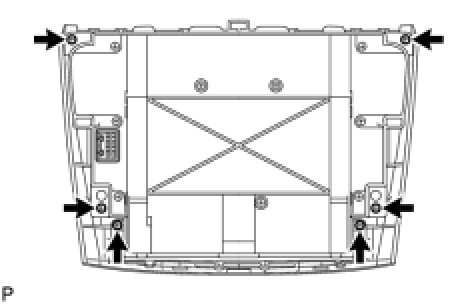

(a) Remove the 6 screws.

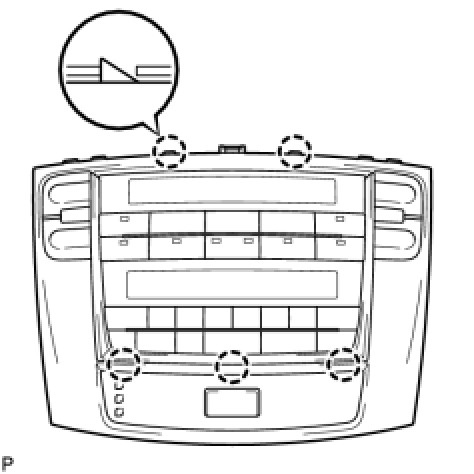

(b) Disengage the 5 claws, and remove the center instrument cluster finish panel.

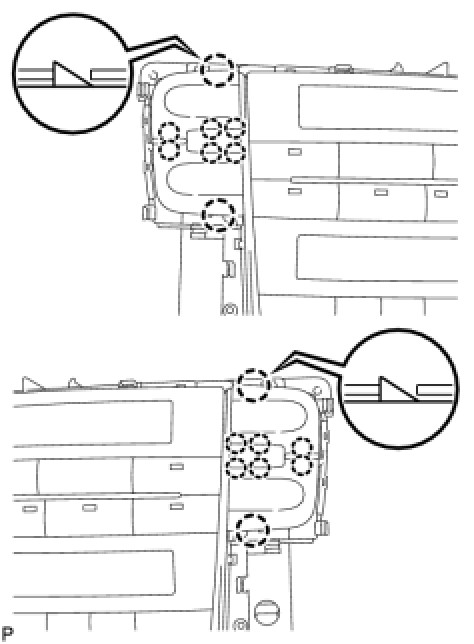

2. REMOVE NO. 1 CONTROL KNOB SUB-ASSEMBLY





(a) Disengage the 16 claws, and remove the No. 1 control knob sub-assembly.
