Reassembly

AIR CONDITIONING: INTEGRATION CONTROL AND PANEL: REASSEMBLY

REASSEMBLY

1. INSTALL NO. 1 CONTROL KNOB SUB-ASSEMBLY

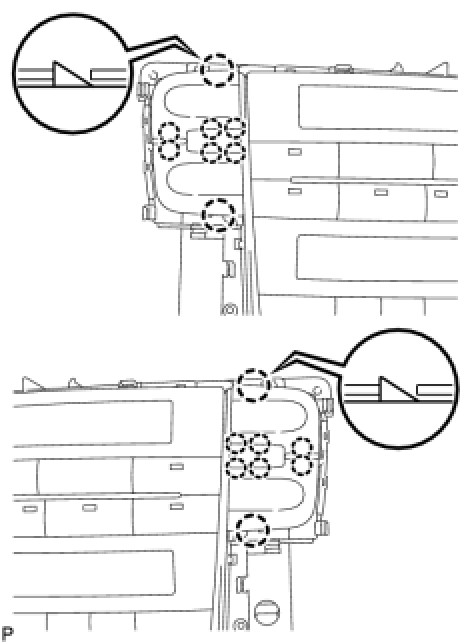

(a) Engage the 16 claws, and install the No. 1 control knob sub-assembly.
2. INSTALL INSTRUMENT CLUSTER FINISH PANEL CENTER





(a) Engage the 5 claws.





(b) Install the integration control panel with 6 screws.
