Driver Side Seat Memory Switch Circuit: Wiring Diagram

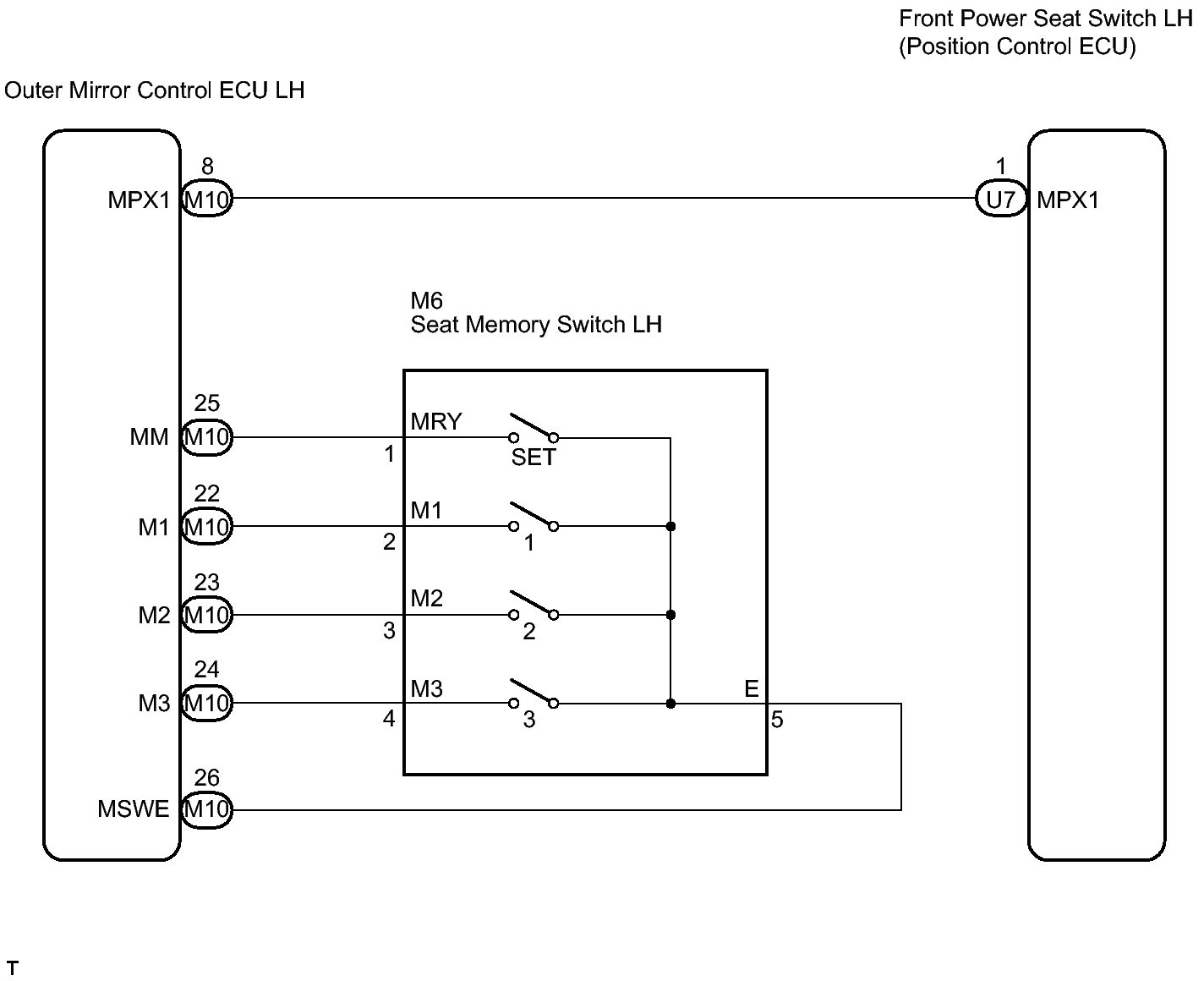

Fig 1: Identifying Driver Side Seat Memory Switch Circuit Diagram
GTY127449Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
