Charging (Service Information): Generator: Disassembly: Disassembly

  1. REMOVE CLUTCH PULLEY
    1. Using a screwdriver, remove the generator pulley cap.
      Fig 1: Removing Generator Pulley Cap
      GTY145196Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Set SST (A) and (B).

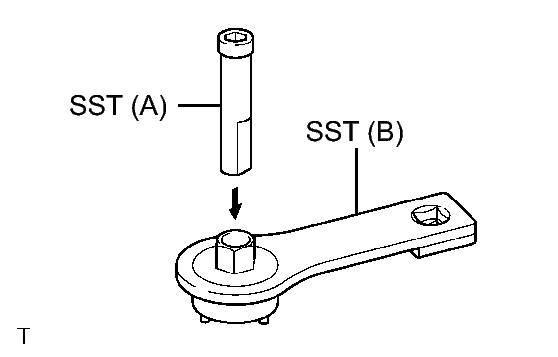

      Fig 2: Setting SST (A) And (B)
      GTY125557Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09820-63020
    3. Clamp SST (A) in a vise.
    4. Place the rotor shaft end into SST (A).

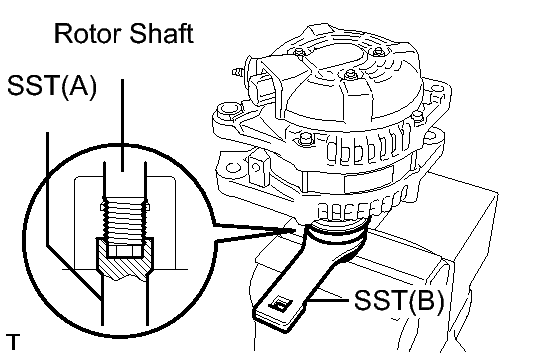

      Fig 3: Placing Rotor Shaft End Into SST (A)
      GTY139131Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Fit SST (B) to the clutch pulley.

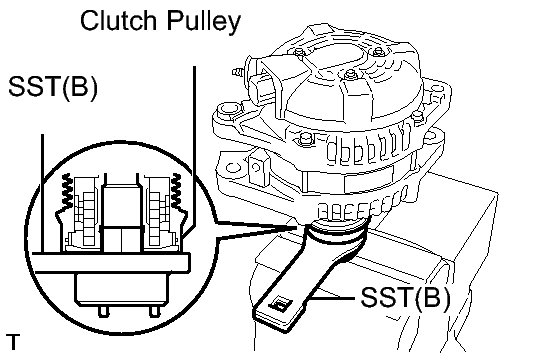

      Fig 4: Fitting SST (B) To Clutch Pulley
      GTY145825Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Loosen the pulley by turning SST (B) in the direction shown in the illustration.

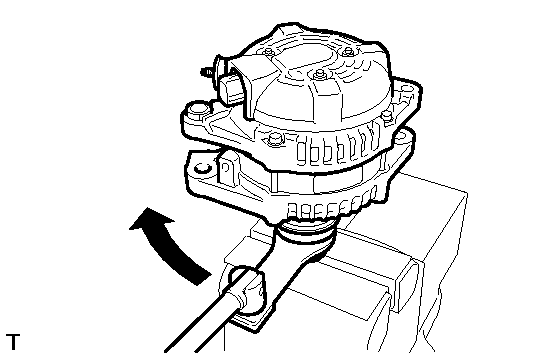

      Fig 5: Loosening Pulley
      GTY145826Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Remove the generator assembly from the SST.
    8. Remove the clutch pulley from the rotor shaft.
  2. REMOVE GENERATOR REAR END COVER
    1. Place the generator assembly on the clutch pulley.

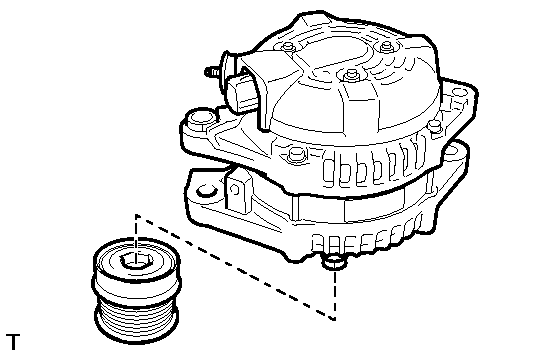

      Fig 6: Placing Generator Assembly On Clutch Pulley
      GTY121539Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 3 nuts and end cover.
      Fig 7: Identifying Clutch Pulley And Rotor Shaft
      GTY145194Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE TERMINAL INSULATOR
    1. Remove the terminal insulator from the generator coil.
      Fig 8: Locating Terminal Insulator
      GTY145195Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE GENERATOR BRUSH HOLDER ASSEMBLY
    1. Remove the 2 screws and brush holder from the generator coil.
      Fig 9: Locating Generator Brush Holder Assembly
      GTY133051Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE GENERATOR COIL ASSEMBLY
    1. Remove the 4 bolts.
      Fig 10: Identifying Generator Coil Assembly Bolts
      GTY102940Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using SST, remove the generator coil assembly.
      Fig 11: Removing Generator Coil Assembly
      GTY145827Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09950-40011
        • 09951-04020
        • 09952-04010
        • 09953-04020
        • 09954-04010
        • 09955-04071
        • 09957-04010
        • 09958-04011
  6. REMOVE GENERATOR ROTOR ASSEMBLY
    1. Remove the generator washer.
      Fig 12: Placing Generator Washer On Generator Rotor
      GTY100085Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the rotor assembly from the drive end frame.
      Fig 13: Installing Rotor Assembly To Drive End Frame
      GTY103817Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSPECT GENERATOR DRIVE END FRAME BEARING  See step  4
  8. REMOVE GENERATOR DRIVE END FRAME BEARING
    1. Remove the 4 screws and retainer plate from the drive end frame.
      Fig 14: Removing Retainer Plate From Drive End Frame Screws
      GTY134975Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using SST and a hammer, tap out the drive end frame bearing from the drive end frame.
      Fig 15: Tapping Out Drive End Frame Bearing From Drive End Frame
      GTY146176Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09950-60010
        • 09951-00250
      • SST: 09950-70010
        • 09951-07100
