Cold Start Injector Circuit: Procedure

1. Disconnect the E57 cold start injector connector.

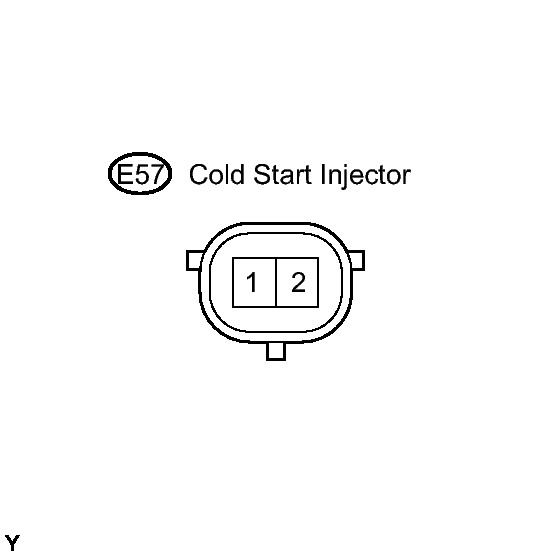

   Fig 1: Identifying Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   Tester Connection	Condition	Specified Condition
   1 - 2	20°C (68°F)	11.6 to 12.6 Ω

NG → REPLACE COLD START INJECTOR

OK: Go to next step

1. Turn the engine switch on (IG).

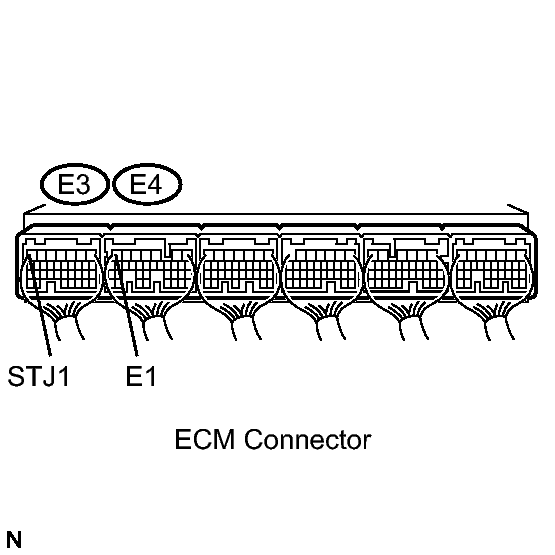

   Fig 2: Identifying E3 And E4 ECM Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the voltage according to the value(s) in the table below.

   Standard voltage

   Tester Connection	Specified condition
   STJ1 (E3-7) - E1 (E4-7)	9 to 14 V

OK → REPLACE ECM

NG: Go to next step

1. Disconnect the E57 cold start injector connector.

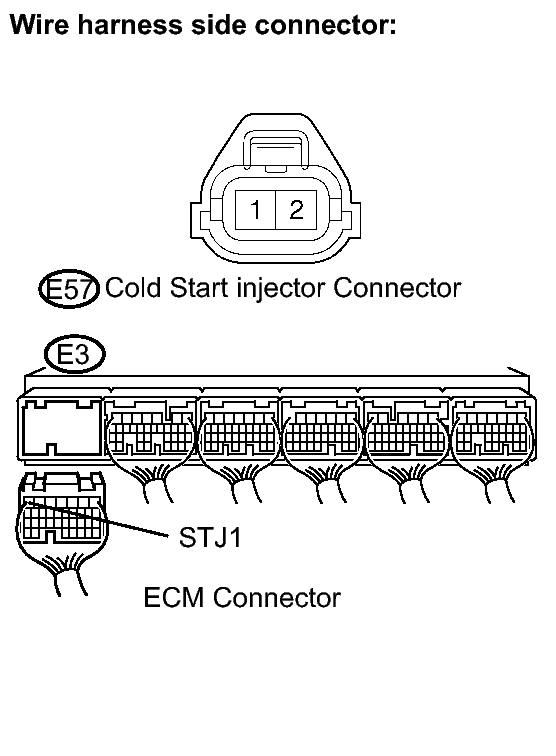

   Fig 3: Identifying Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the E3 ECM connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard (Check for open)

   Tester Connection	Specified condition
   E57-1 - STJ1 (E3-7)	Below 1 Ω

   Standard (Check for short)

   Tester Connection	Specified condition
   E57-1 or STJ1 (E3-7) - Body ground	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK → CHECK AND REPLACE HARNESS AND CONNECTOR (COLD START INJECTOR - BATTERY POSITIVE TERMINAL)
