Power Seat for Front Passenger's Seat without Memory: Notes

WARNING: This page is about a different car, the 2008 Lexus IS 350 and 2008 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.

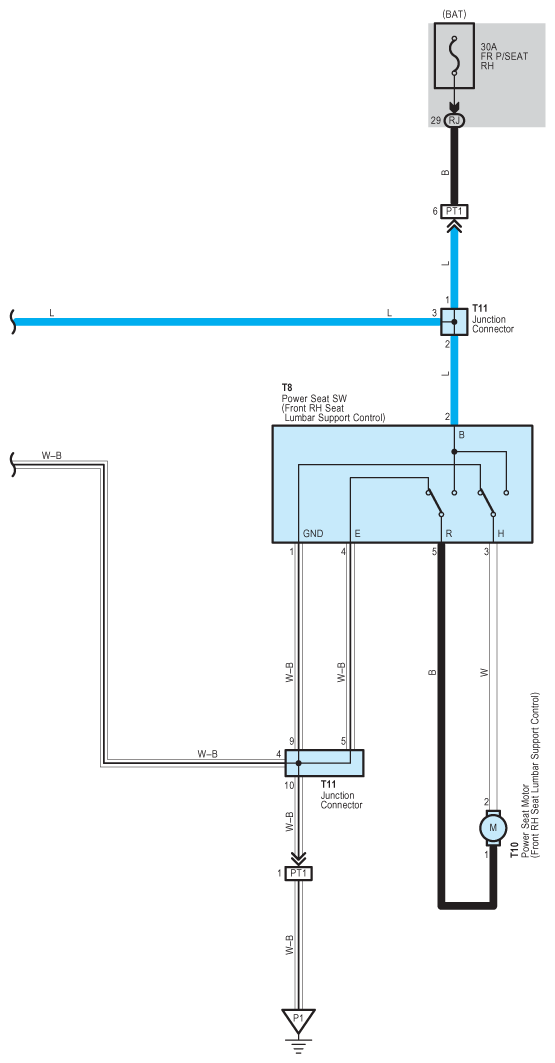

Fig 1: Power Seat For Front Passenger's Seat Without Memory - Circuit Diagram (1 Of 2)

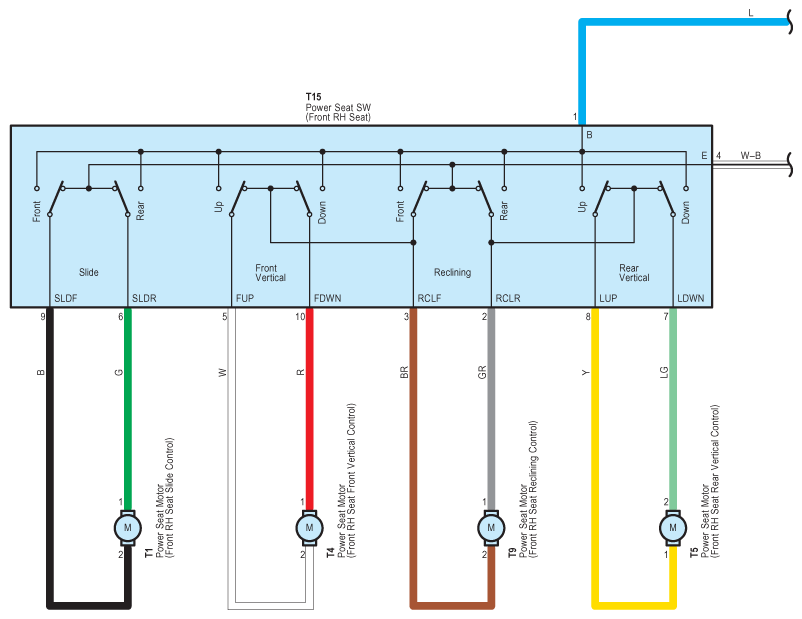

Fig 2: Power Seat For Front Passenger's Seat Without Memory - Circuit Diagram (2 Of 2)
