DTC P2009: Intake Manifold Runner Control Circuit Low (Bank 1); DTC P2010: Intake Manifold Runner Control Circuit High (Bank 1): Procedure

1. Inspect the swirl control valve. Refer to ON-VEHICLE INSPECTION - Step 2 .

NG → REPLACE INTAKE MANIFOLD

OK: Go to next step

1. Disconnect the E6 ECM connector.

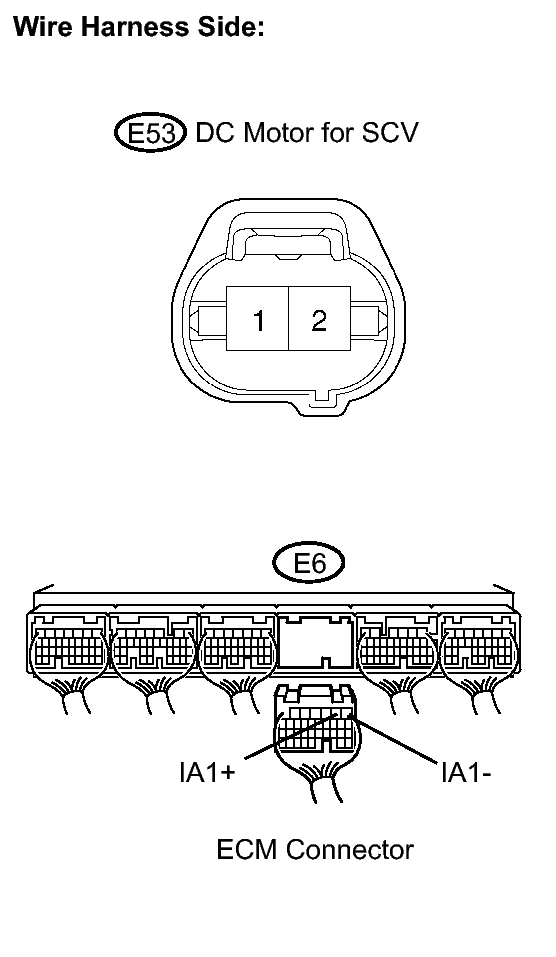

   Fig 1: Identifying Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the E53 DC motor for SCV connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard resistance (Check for open)

   Tester Connection	Specified Condition
   IA1- (E6-1) - E53-2	Below 1 Ω
   IA1+ (E6-2) - E53-1	Below 1 Ω

   Standard resistance (Check for short)

   Tester Connection	Specified Condition
   IA1- (E6-1) or E53-2 - Body ground	10 kΩ or higher
   IA1+ (E6-2) or E53-1 - body ground	10 kΩ or higher

4. Reconnect the ECM connector.
5. Reconnect the DC motor for SCV connector.

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Connect Techstream to the DLC3.
2. Turn the engine switch on (IG).
3. Turn the tester on.
4. Clear DTCs.
5. Enter the following menus: Powertrain / Engine and ECT / Trouble Codes.
6. Read DTCs.

   Result

   Display (DTC Output)	Proceed to
   P2009 or P2010	A
   No DTC	B

B → CHECK FOR INTERMITTENT PROBLEMS

A → REPLACE ECM
