Navigation, Parking Assist (Rear View Monitor) and Audio System: Notes

WARNING: This page is about a different car, the 2008 Lexus IS 350 and 2008 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.

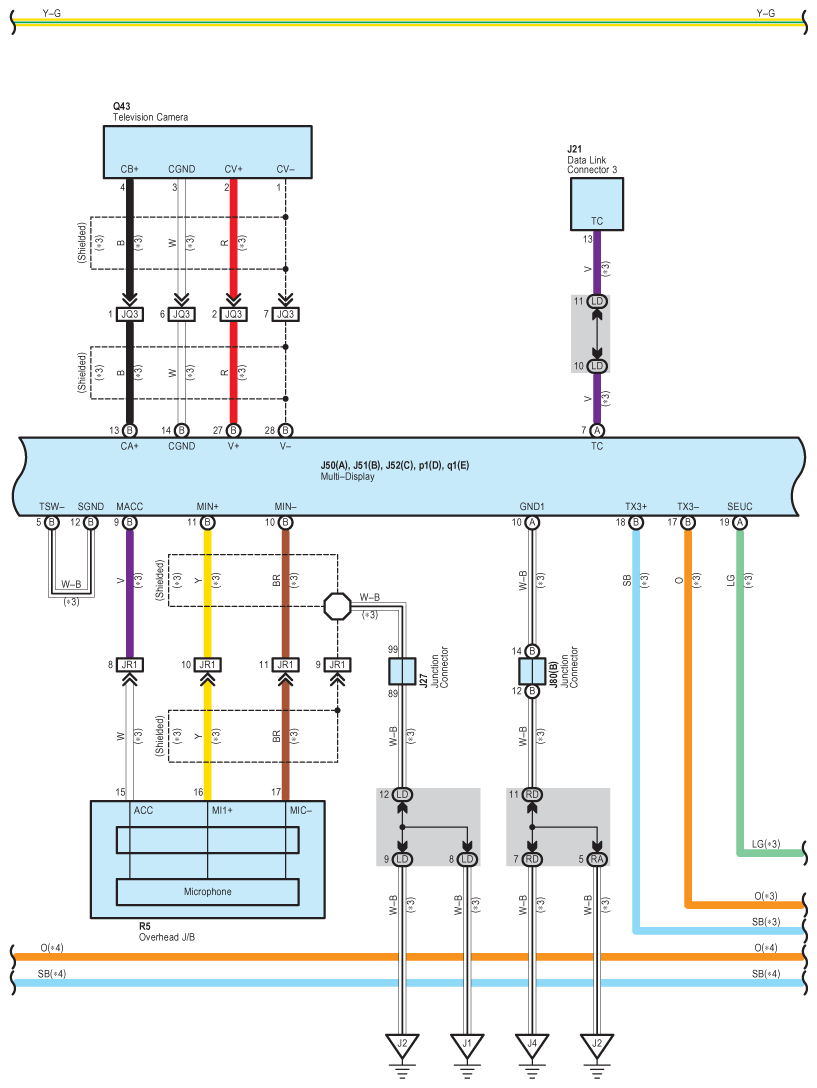

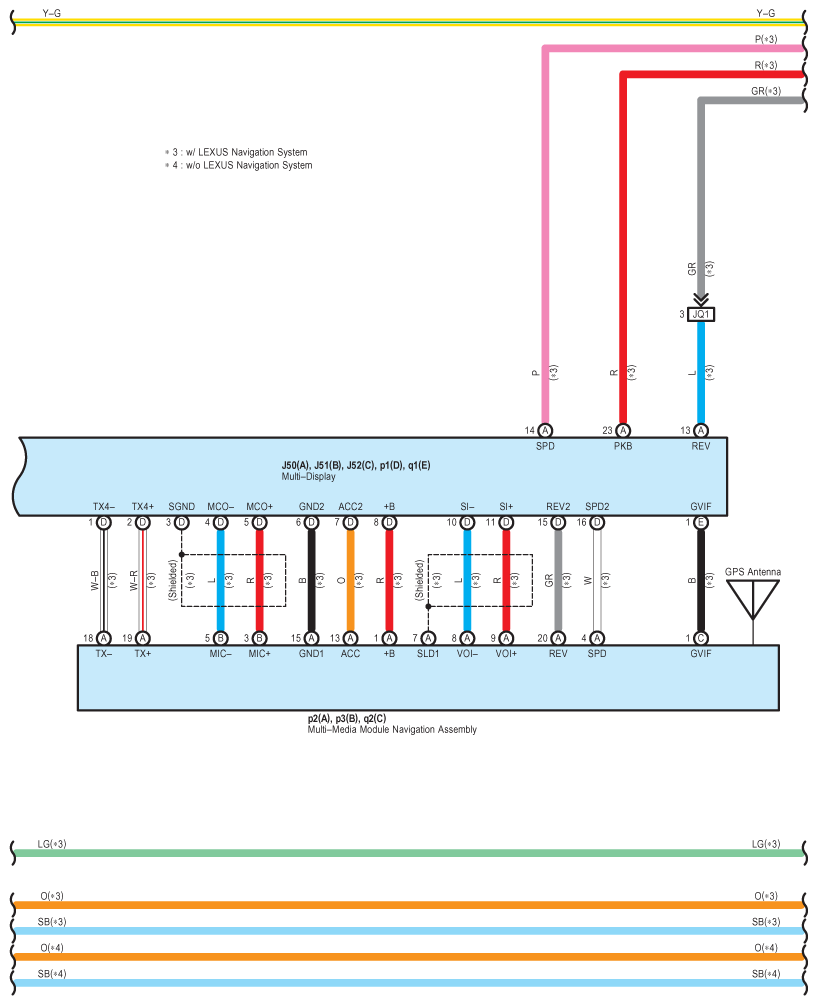

Fig 1: Navigation, Parking Assist (Rear View Monitor) And Audio System - Circuit Diagram (1 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

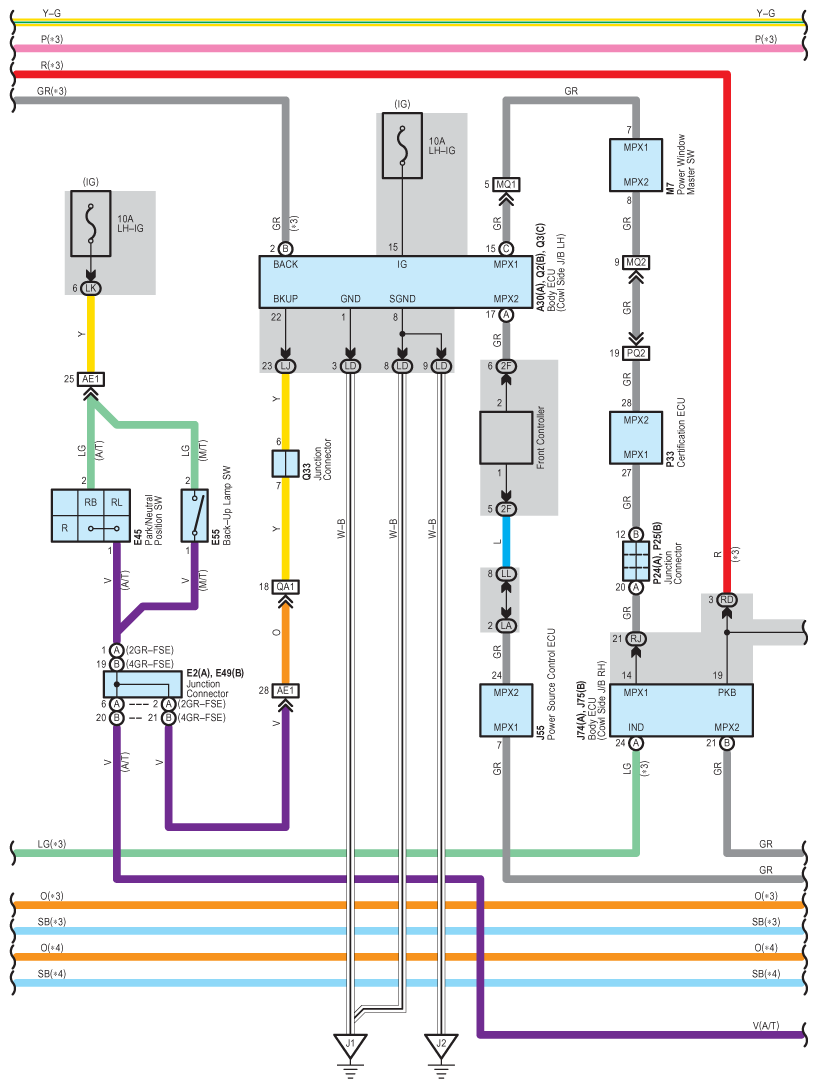

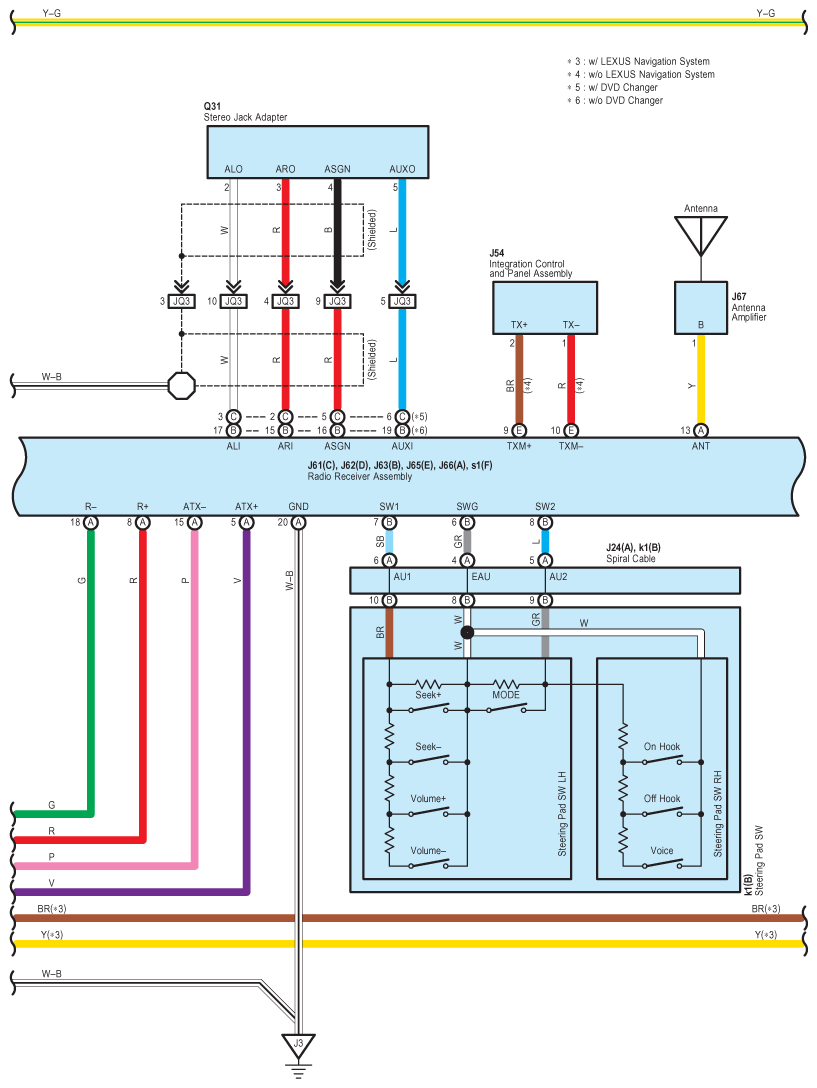

Fig 2: Navigation, Parking Assist (Rear View Monitor) And Audio System - Circuit Diagram (2 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

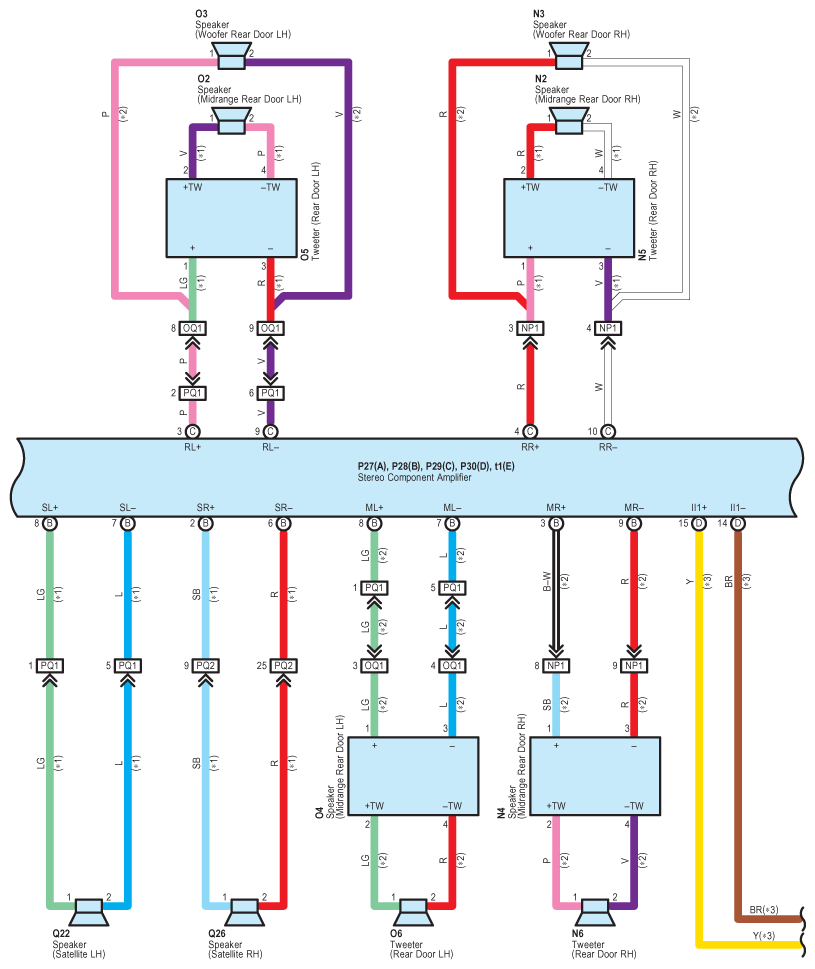

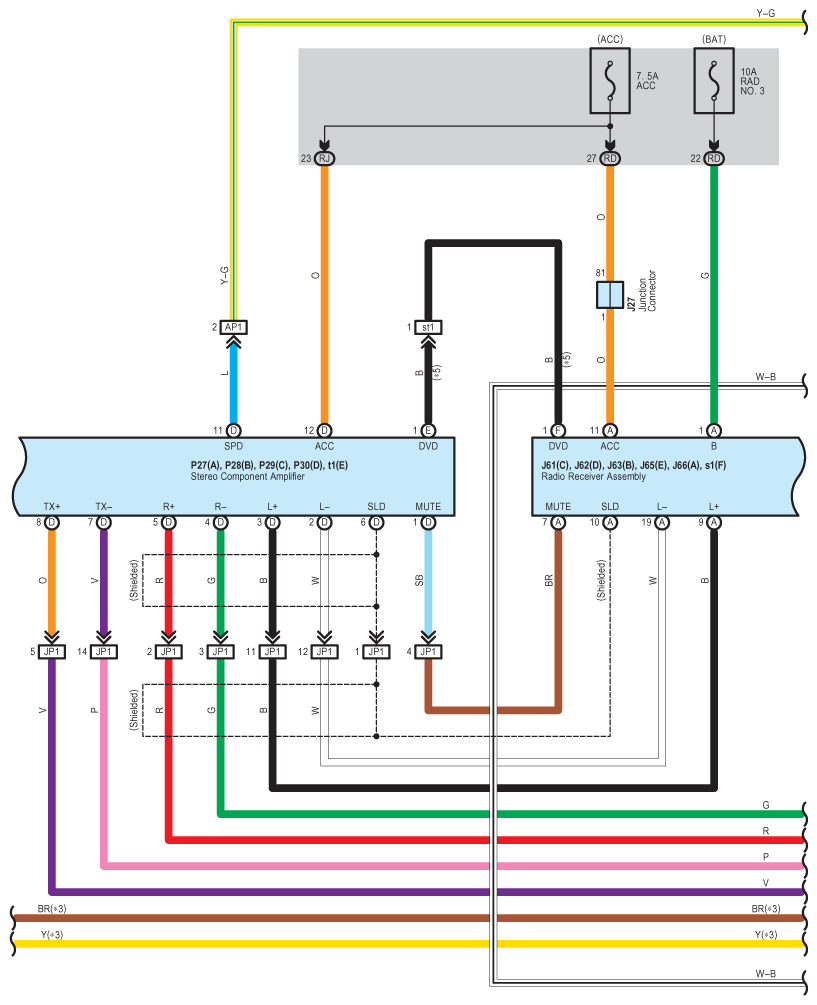

Fig 3: Navigation, Parking Assist (Rear View Monitor) And Audio System - Circuit Diagram (3 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

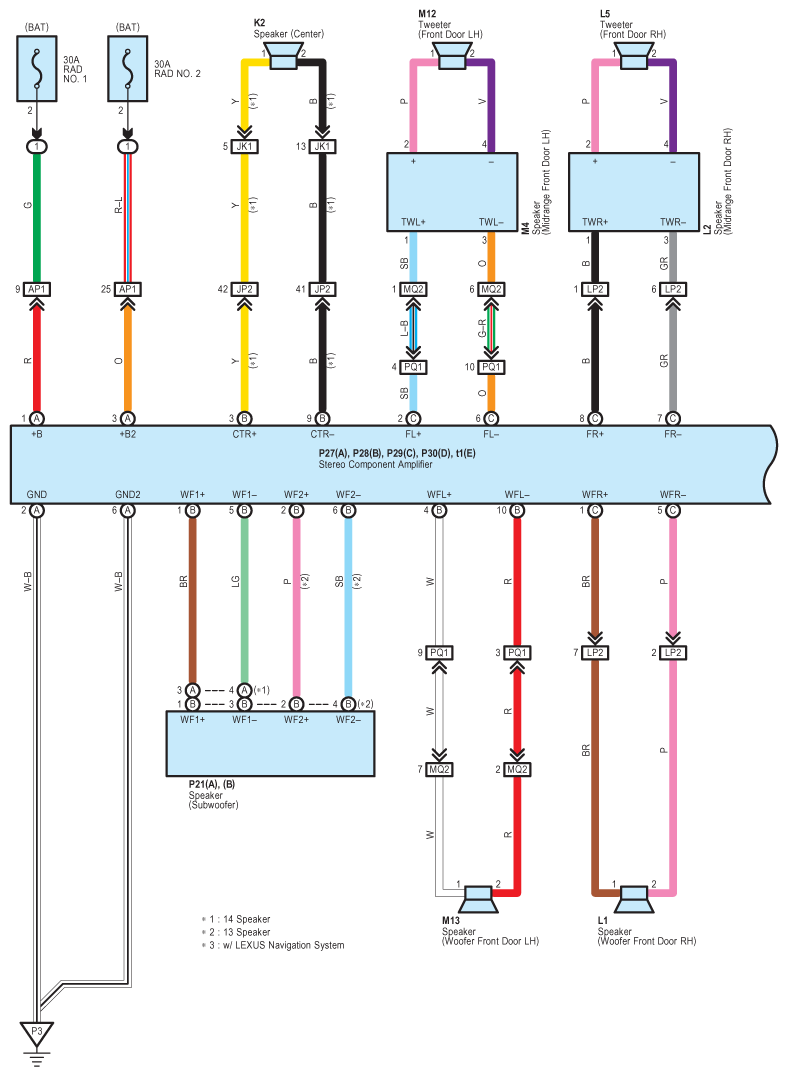

Fig 4: Navigation, Parking Assist (Rear View Monitor) And Audio System - Circuit Diagram (4 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

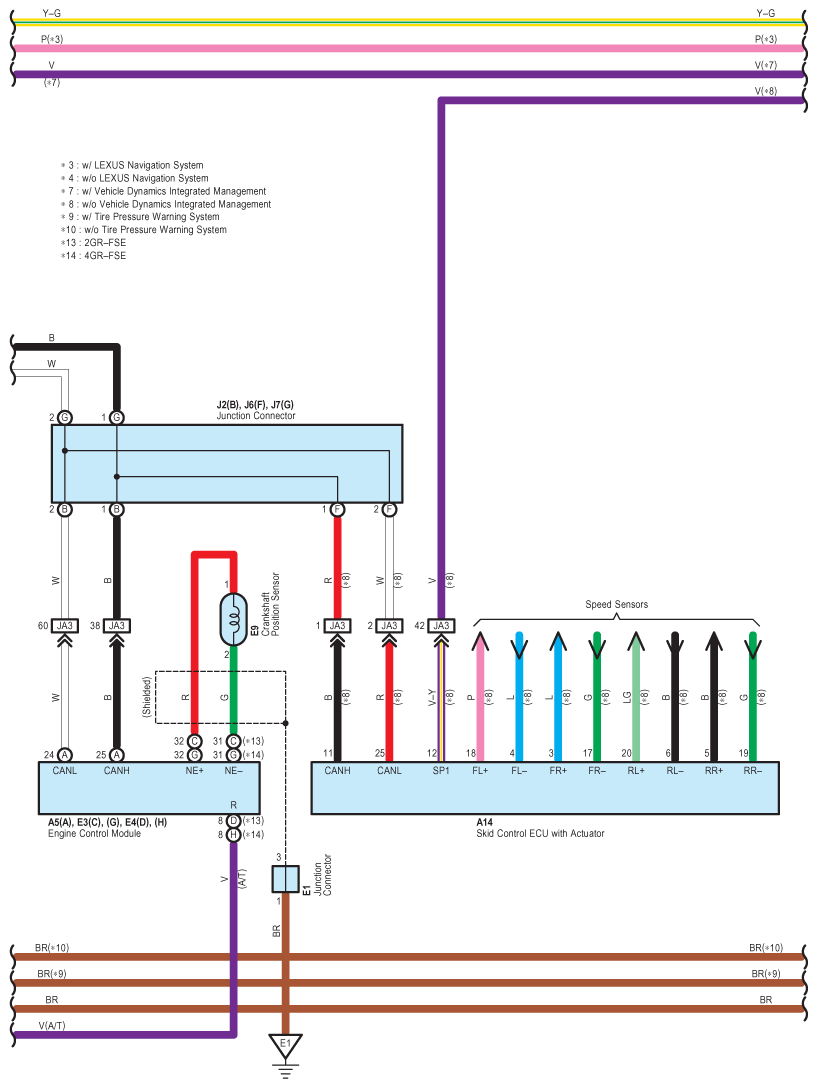

Fig 5: Navigation, Parking Assist (Rear View Monitor) And Audio System - Circuit Diagram (5 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

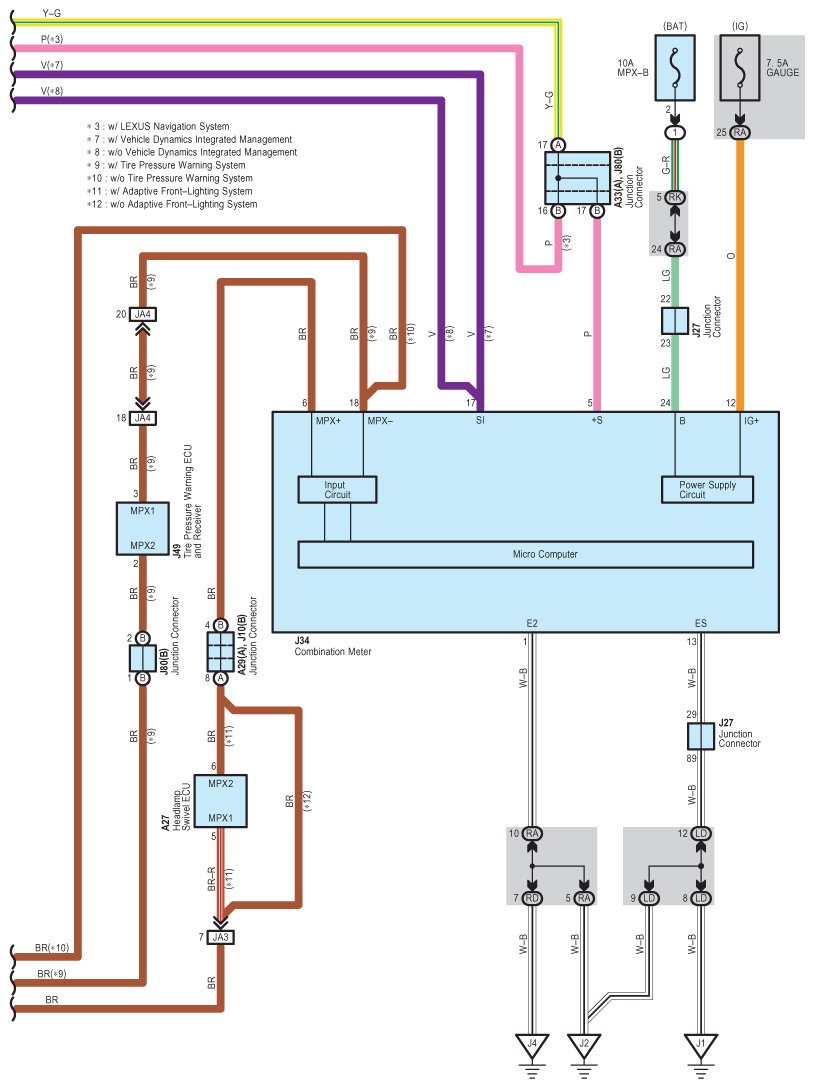

Fig 6: Navigation, Parking Assist (Rear View Monitor) And Audio System - Circuit Diagram (6 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

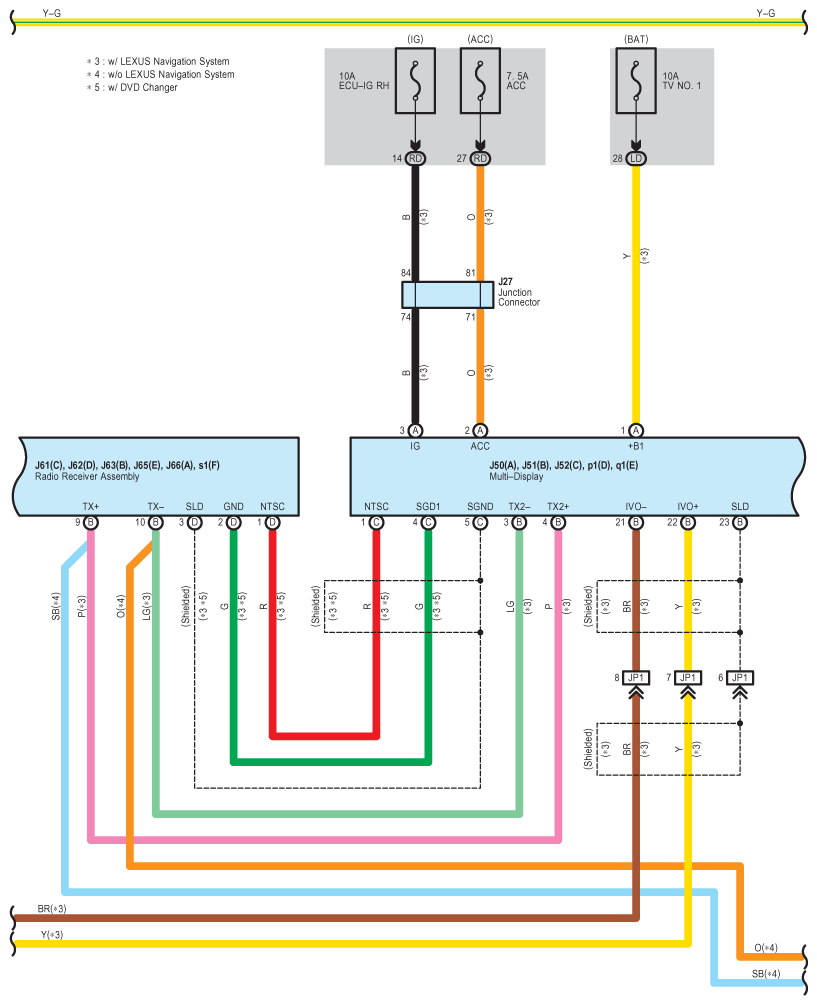

Fig 7: Navigation, Parking Assist (Rear View Monitor) And Audio System - Circuit Diagram (7 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

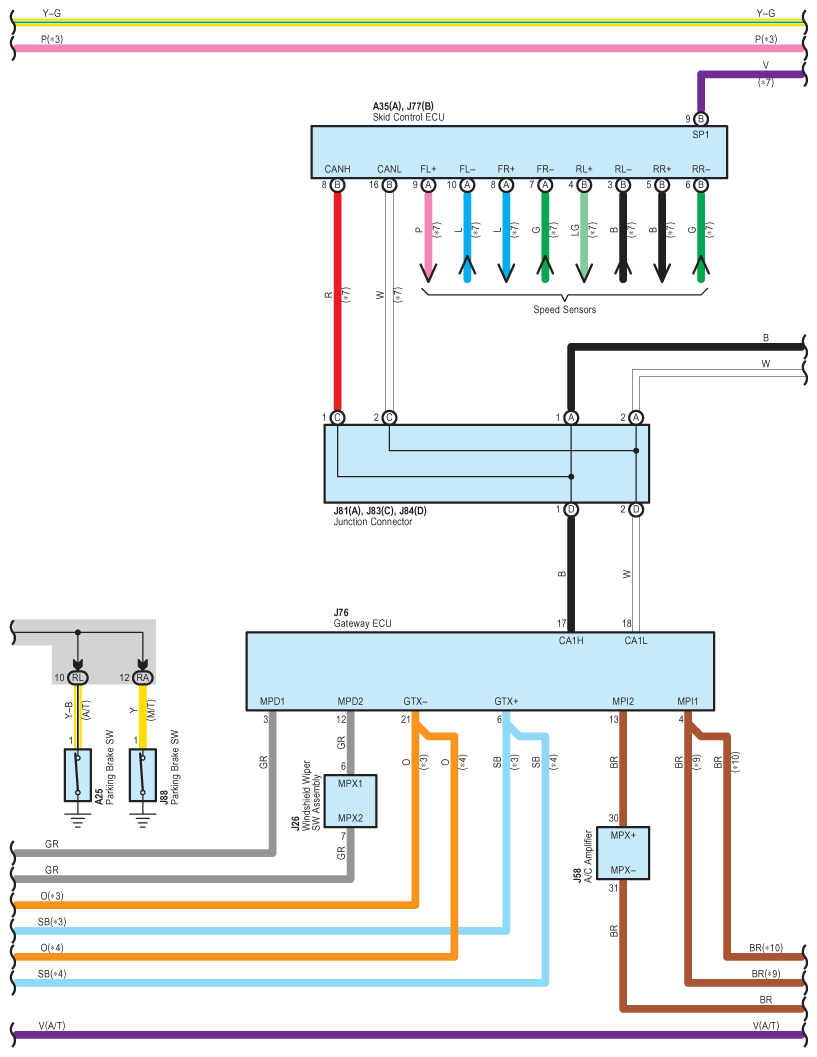

Fig 8: Navigation, Parking Assist (Rear View Monitor) And Audio System - Circuit Diagram (8 Of 11)

Fig 9: Navigation, Parking Assist (Rear View Monitor) And Audio System - Circuit Diagram (9 Of 11)

Fig 10: Navigation, Parking Assist (Rear View Monitor) And Audio System - Circuit Diagram (10 Of 11)

Fig 11: Navigation, Parking Assist (Rear View Monitor) And Audio System - Circuit Diagram (11 Of 11)
