Removal

SEAT: SEAT MEMORY SWITCH: REMOVAL

REMOVAL

1. REMOVE FRONT DOOR INSIDE HANDLE BEZEL PLUG LH Disassembly
2. REMOVE POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY Disassembly
3. REMOVE COURTESY LIGHT ASSEMBLY Disassembly
4. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY Disassembly
5. REMOVE FRONT INNER DOOR GLASS WEATHERSTRIP Disassembly

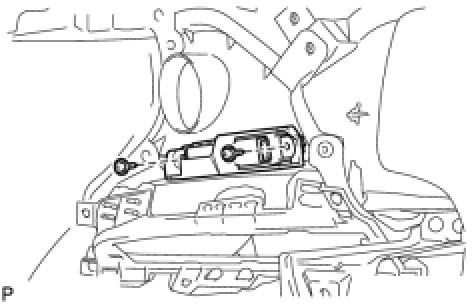

6. REMOVE SEAT MEMORY SWITCH





(a) Disconnect the connector.
(b) Remove the 2 screws and memory switch.
