2UR-GSE ENGINE CONTROL: KNOCK SENSOR: INSTALLATION

INSTALLATION





1. INSTALL KNOCK CONTROL SENSOR

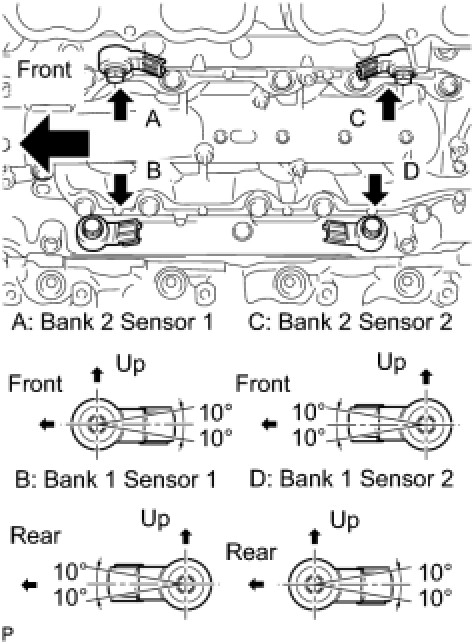

(a) Install the 4 knock control sensors with the 4 bolts so that the sensors are angled as shown in the illustration.
Torque: 20 Nm (204 kgf-cm, 15 ft-lbf)
NOTE:
The acceptable installation angle of the knock control sensors is within +/- 10° from the horizontal position.

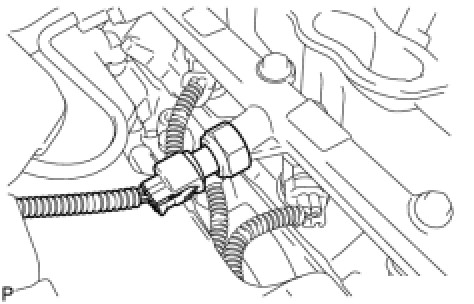

(b) Connect the 4 knock control sensor connectors.
2. INSTALL CASE SEPARATOR

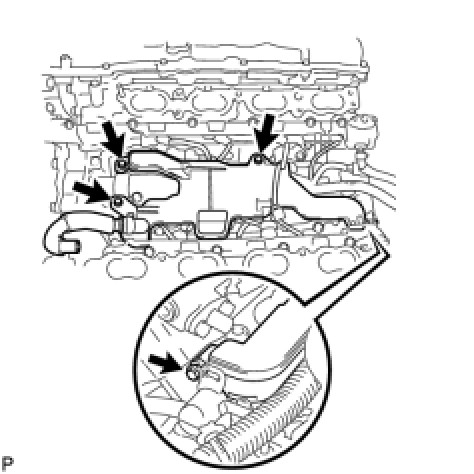

(a) Install the case separator with the 4 bolts.
Torque: 10 Nm (102 kgf-cm, 7 ft-lbf)





(b) Connect the fuel pressure sensor connector.
3. INSTALL NO. 4 FUEL PIPE SUB-ASSEMBLY Installation
4. INSTALL NO. 2 ENGINE COVER SUB-ASSEMBLY LH Installation
5. INSTALL NO. 1 ENGINE COVER SUB-ASSEMBLY Installation
6. INSTALL INTAKE AIR SURGE TANK ASSEMBLY
(a) Install the intake air surge tank assembly Installation.
7. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

8. INSPECT FOR FUEL LEAK Testing and Inspection
