Removal

AA80E AUTOMATIC TRANSMISSION / TRANSAXLE: TCM: REMOVAL

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

2. REMOVE COOL AIR INTAKE DUCT SEAL Removal
3. REMOVE ENGINE ROOM SIDE COVER LH Removal
4. REMOVE ENGINE ROOM ECU COVER Removal

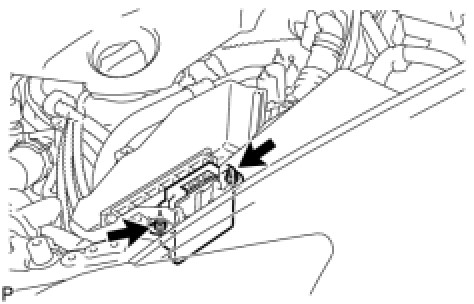

5. REMOVE TCM

(a) Using a screwdriver, disconnect the connector holder.
(b) Disconnect the 8 connectors.
