LIGHTING (EXT): AFS ECU: INSTALLATION

INSTALLATION

1. INSTALL AFS ECU

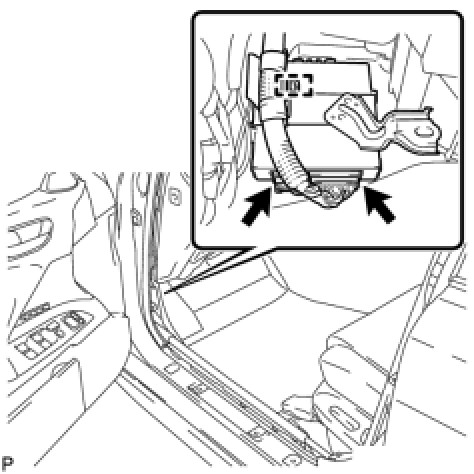

(a) Engage the clamp and connect the connectors.





(b) Install the AFS ECU with the bolt and nut.





(c) Install the connector holder with the 2 clips.
2. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY Installation
3. INSTALL FRONT DOOR OPENING TRIM COVER LH Installation
4. INSTALL FRONT DOOR SCUFF PLATE LH Installation
5. VEHICLE PREPARATION FOR HEADLIGHT AIMING ADJUSTMENT Adjustments
6. PREPARATION FOR HEADLIGHT AIMING (Using a headlight aim test machine) Adjustments
7. PREPARATION FOR HEADLIGHT AIMING (Using a screen) Adjustments
8. INSPECT HEADLIGHT AIMING Adjustments
9. ADJUST HEADLIGHT AIMING Adjustments
