STEERING COLUMN: MULTIPLEX TILT AND TELESCOPIC ECU: INSTALLATION

INSTALLATION

1. INSTALL MULTIPLEX TILT AND TELESCOPIC ECU

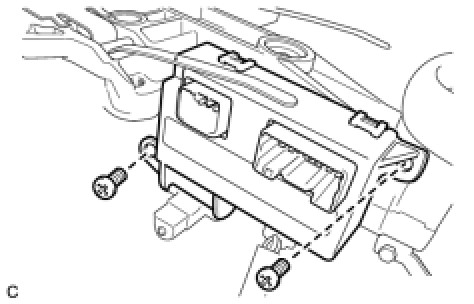

(a) Install the multiplex tilt and telescopic ECU with the 2 screws.
Torque: 1.5 Nm (15 kgf-cm, 13 in-lbf)

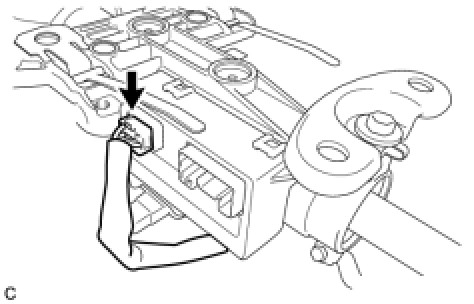

(b) Connect the connector to the multiplex tilt and telescopic ECU.
- The connectors on both ends of the wire harness between the telescopic motor and ECU are the same shape.
- When installing them, connect the connectors of the same color.

2. INSTALL STEERING LOCK ACTUATOR ASSEMBLY Reassembly
3. INSTALL STEERING COLUMN ASSEMBLY
HINT: Refer to the instructions for Installation of the steering column assembly Installation.
