System Diagram

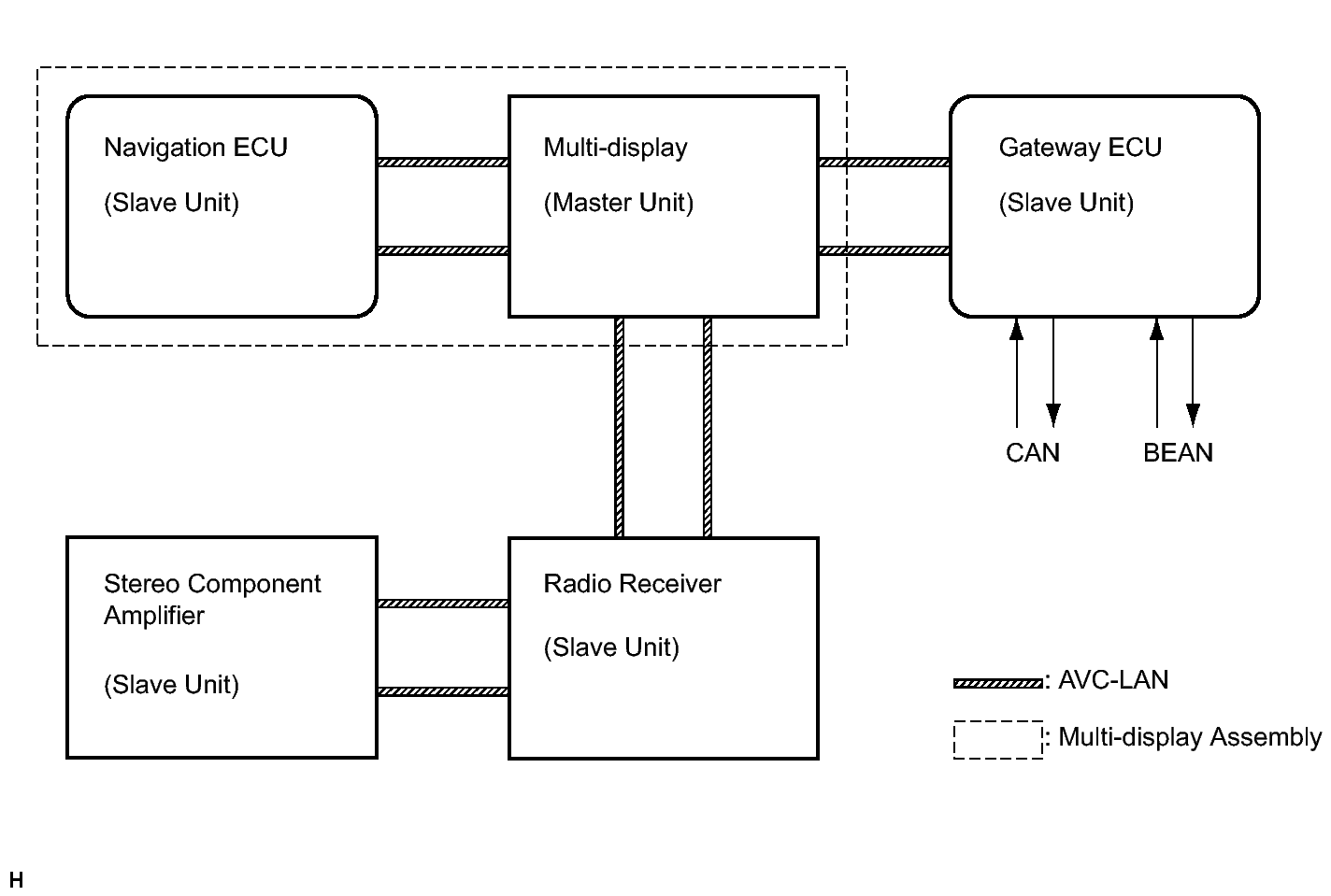

Fig 1: Navigation System Diagram (1 Of 2)
GTY153741Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

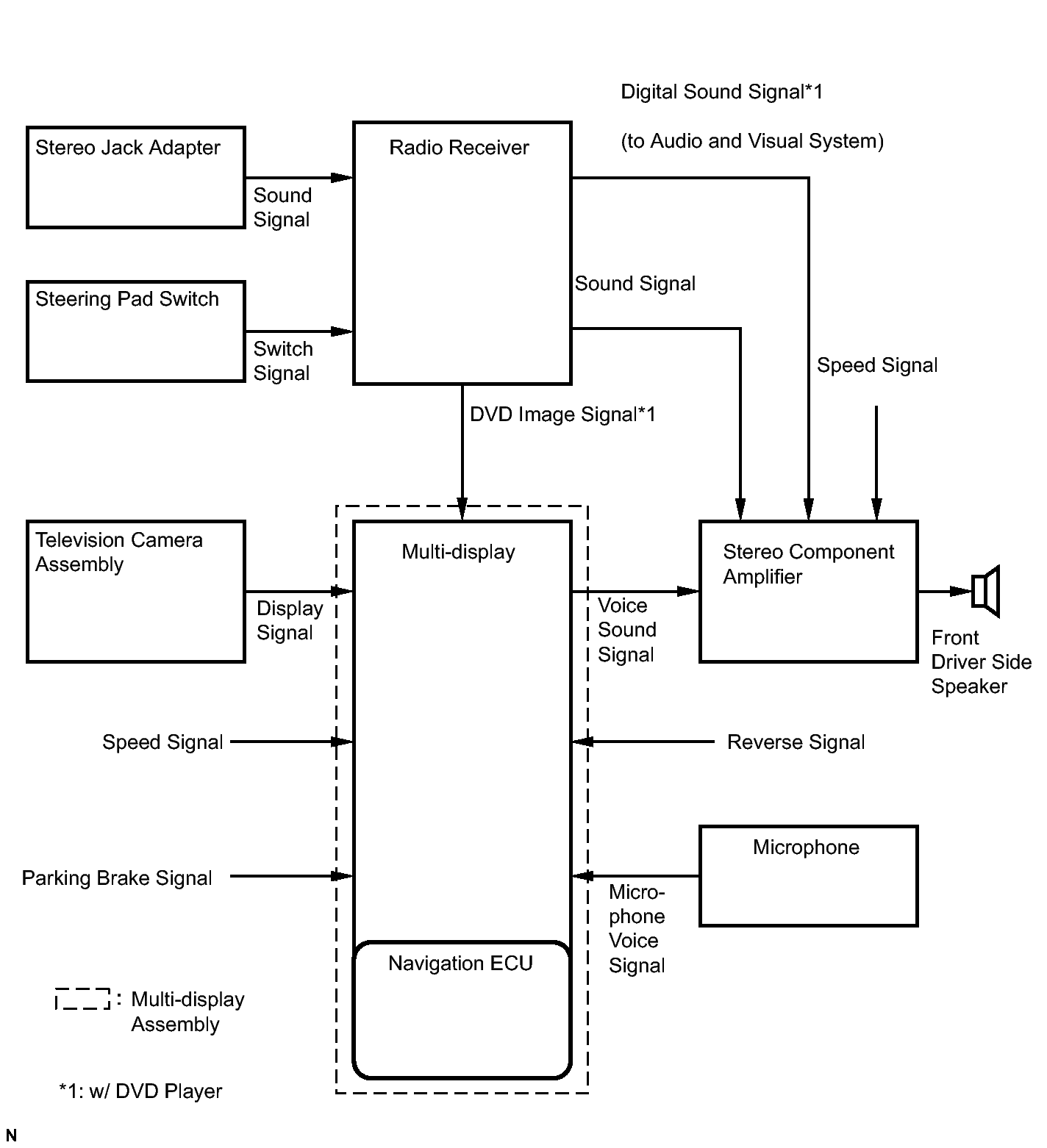

Fig 2: Navigation System Diagram (2 Of 2)
GTY129924Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
