Skid Control Buzzer Circuit: Procedure

1. Connect the Techstream to the DLC3.
2. Turn the engine switch on (IG).
3. Select the Active Test mode on the Techstream. Refer to DATA LIST / ACTIVE TEST .
   SKID CONTROL BUZZER - ACTIVE TEST



   Tester Display	Test Part	Control Range	Diagnostic Note
   Buzzer	Skid control buzzer	Buzzer ON/OFF	Buzzer can be heard

4. Check that the buzzer sounds/stops when turning the skid control buzzer on/off using the Techstream.

   Result

   Result	Proceed to
   Buzzer does not sound or sounds constantly	A
   Buzzer sounds/stops	B

   HINT:

   If troubleshooting has been carried out according to Problem Symptoms Table, refer back to the table and proceed to the next step. Refer to PROBLEM SYMPTOMS TABLE .

B → END

A: Go to next step

1. Turn the engine switch off.

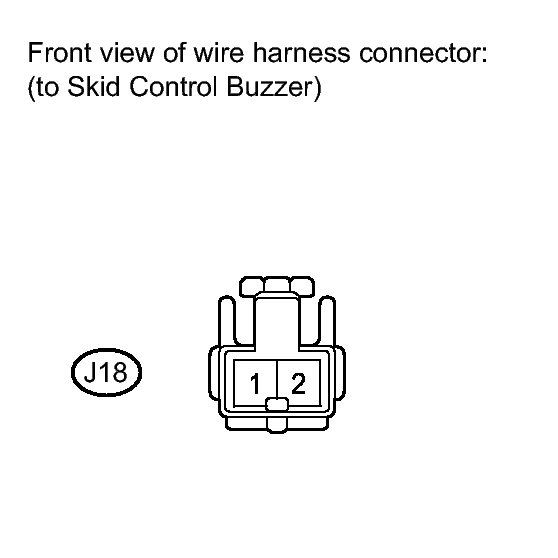

   Fig 1: Identifying Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the skid control buzzer connector.
3. Turn the engine switch on (IG).
4. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Switch Condition	Specified Condition
   J18-2 - Body ground	Engine switch on (IG)	11 to 14 V

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR (POWER SOURCE CIRCUIT)

OK: Go to next step

1. Turn the engine switch off.

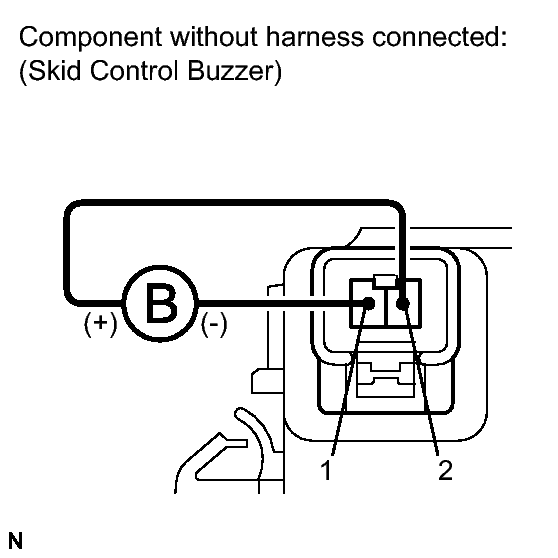

   Fig 2: Inspecting Skid Control Buzzer

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Apply battery negative voltage to terminal 1, and battery positive voltage to terminal 2 of the skid control buzzer, and then check that the buzzer sounds.

   OK

   Skid control buzzer sounds.

NG → See step   6

OK: Go to next step

1. Disconnect the skid control ECU connector.

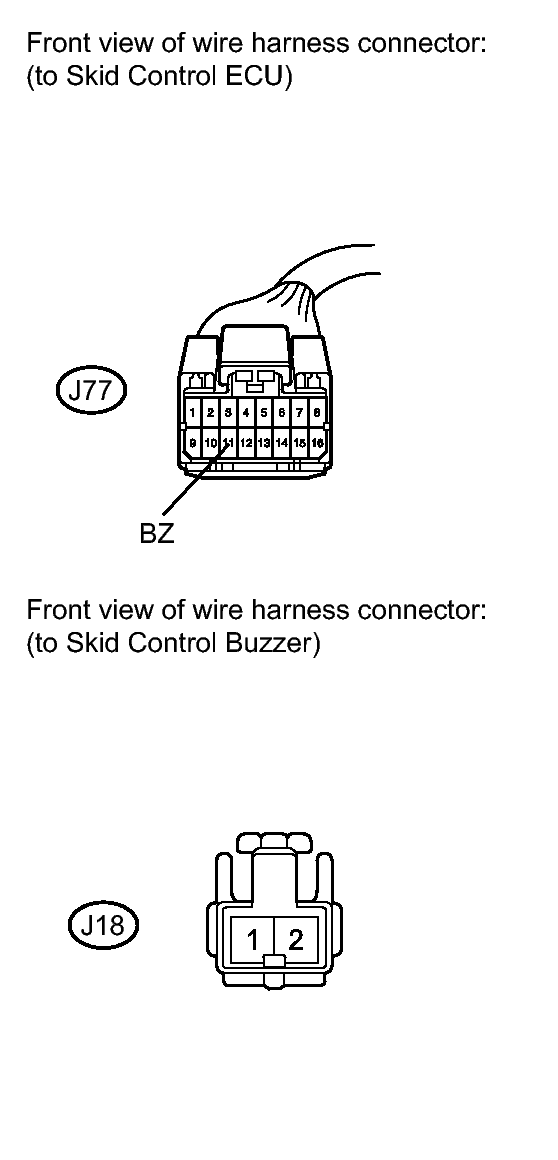

   Fig 3: Identifying Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   J77-11 (BZ) - J18-1	Always	Below 1 Ω
   J77-11 (BZ) - Body ground	Always	10 kΩ or higher

   HINT:

   If troubleshooting has been carried out according to Problem Symptoms Table, refer back to the table and proceed to the next step before replacing the part. Refer to PROBLEM SYMPTOMS TABLE .

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK → See step   5
