Audio System, LEXUS Navigation System and Parking Assist (Rear View Monitor): Notes

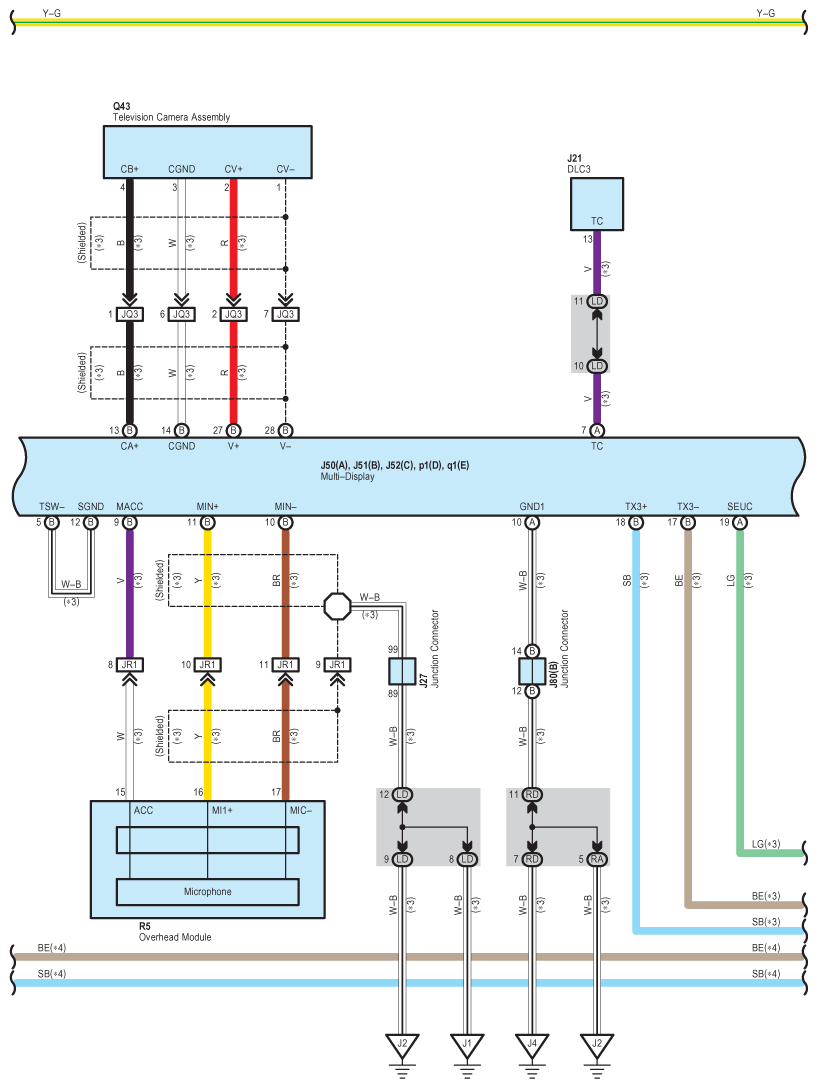

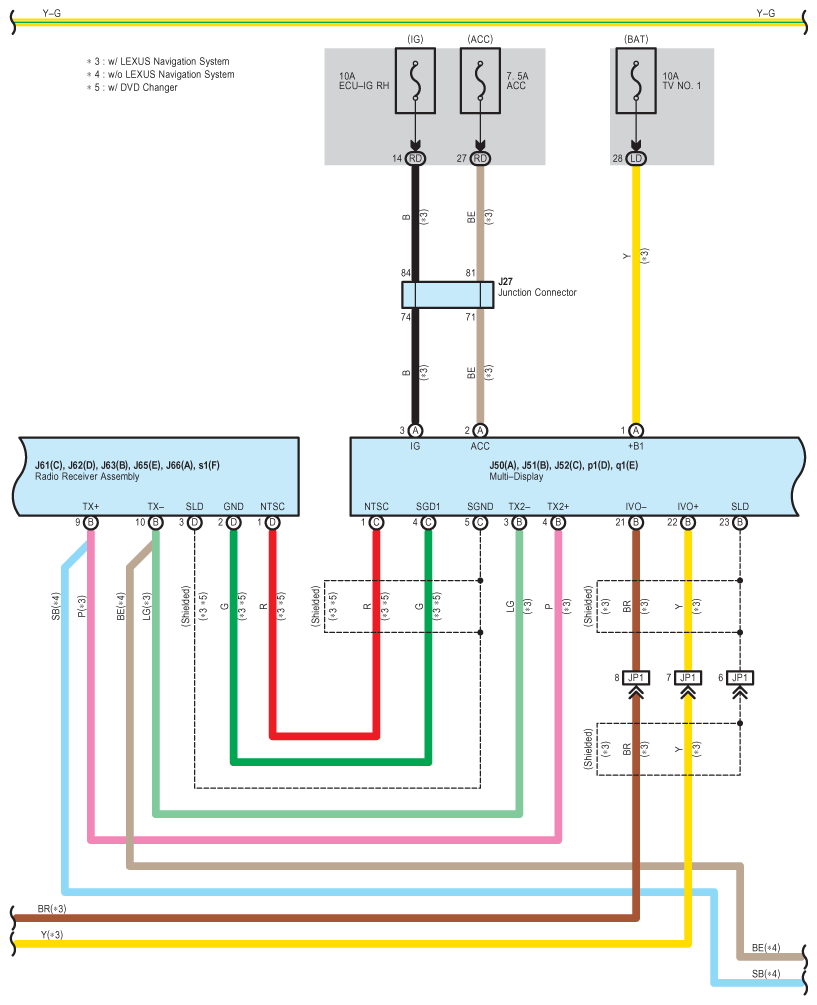

Fig 1: Audio System, Lexus Navigation System And Parking Assist (Rear View Monitor) - Circuit Diagram (1 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

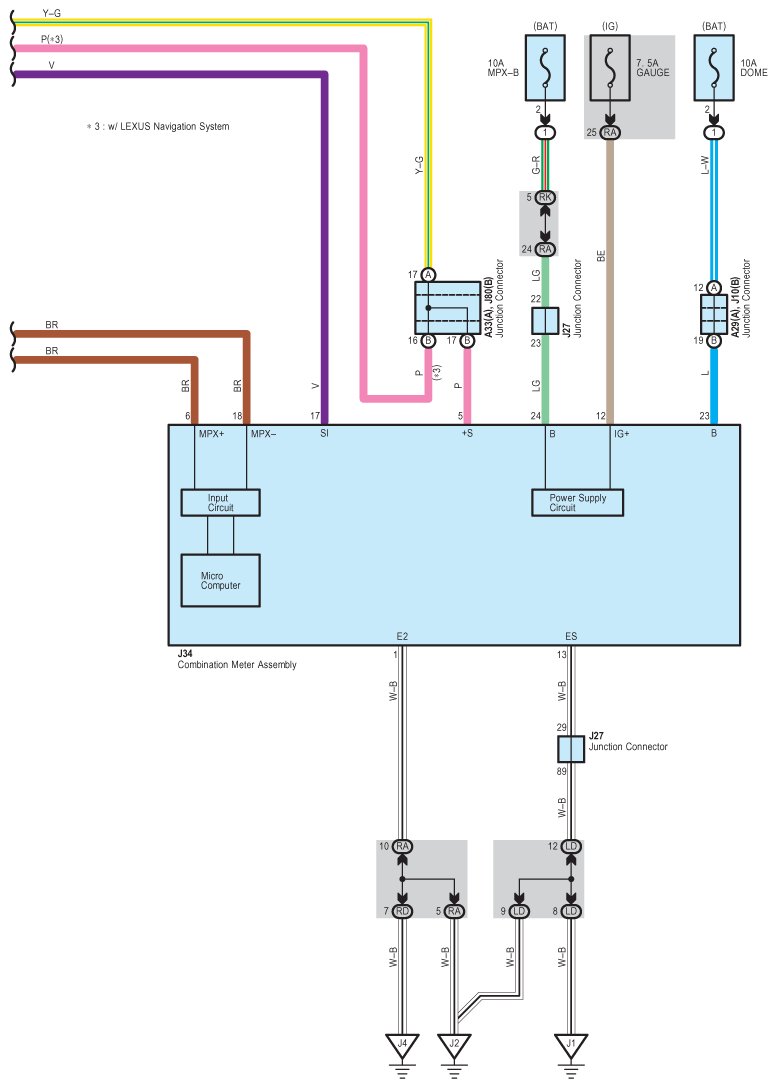

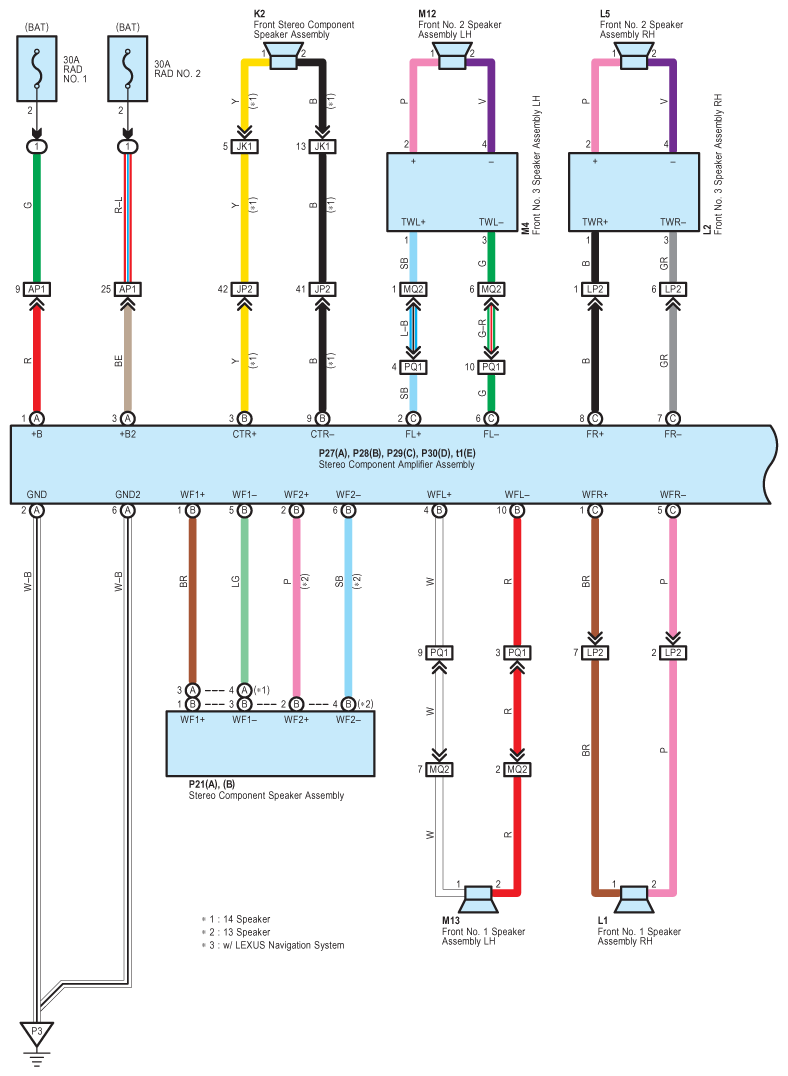

Fig 2: Audio System, Lexus Navigation System And Parking Assist (Rear View Monitor) - Circuit Diagram (2 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

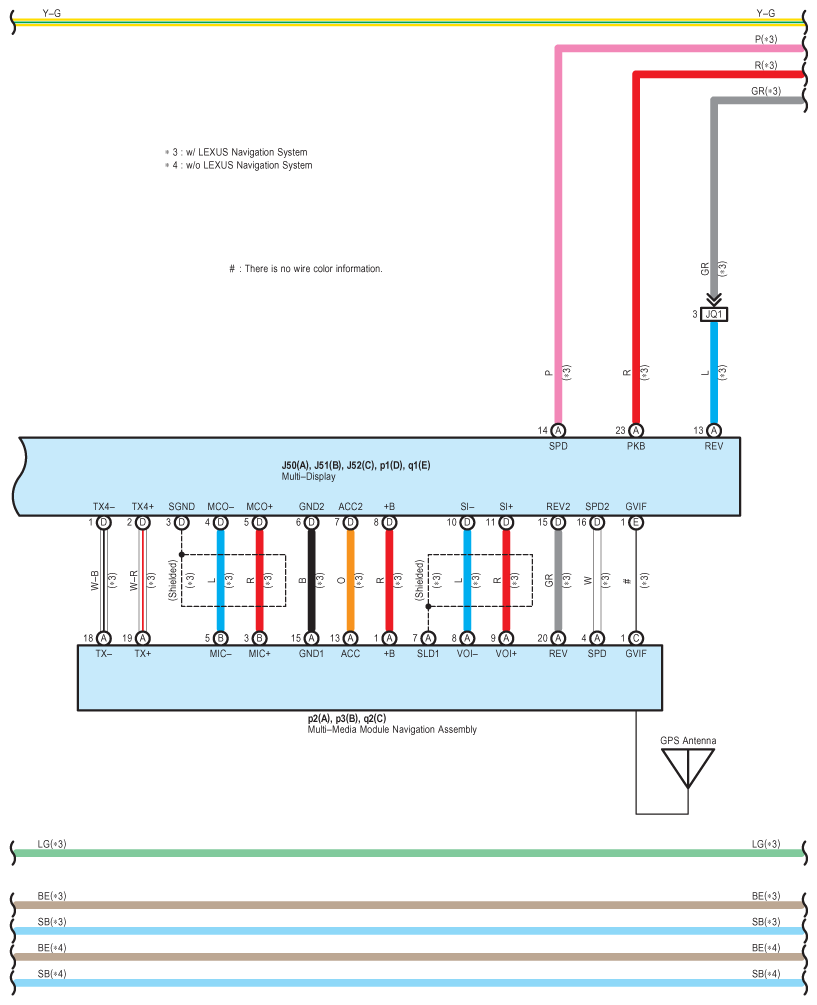

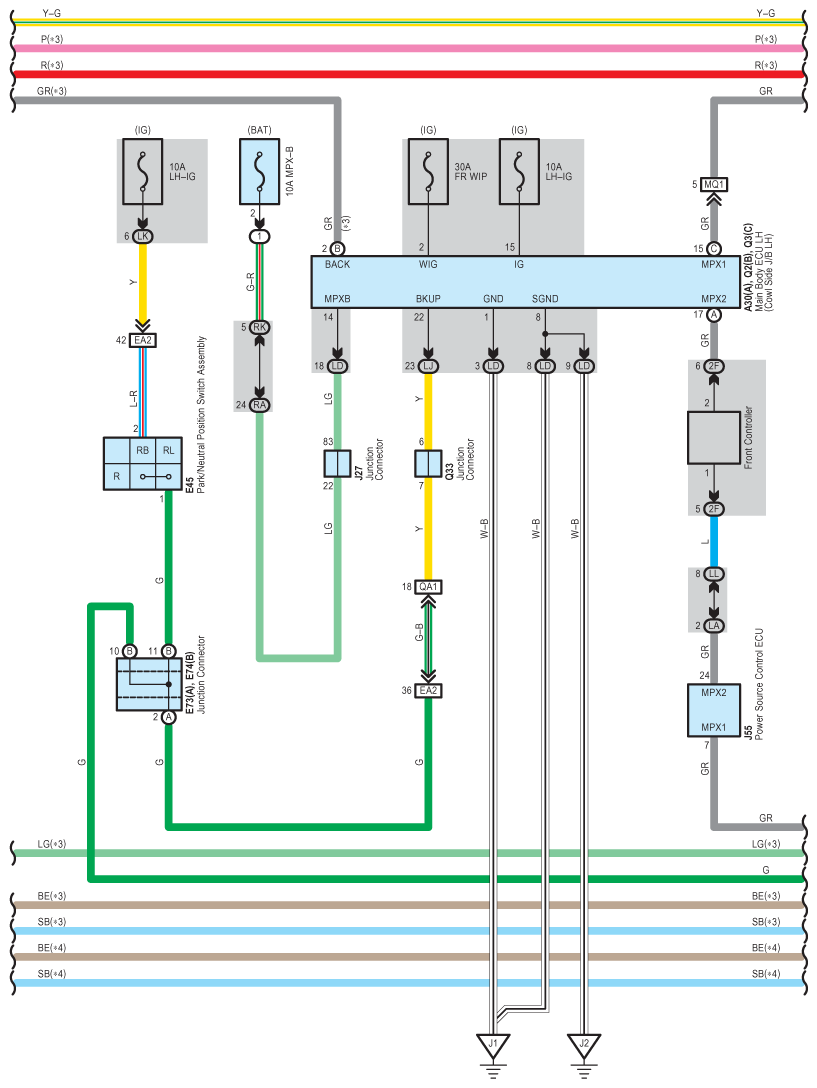

Fig 3: Audio System, Lexus Navigation System And Parking Assist (Rear View Monitor) - Circuit Diagram (3 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

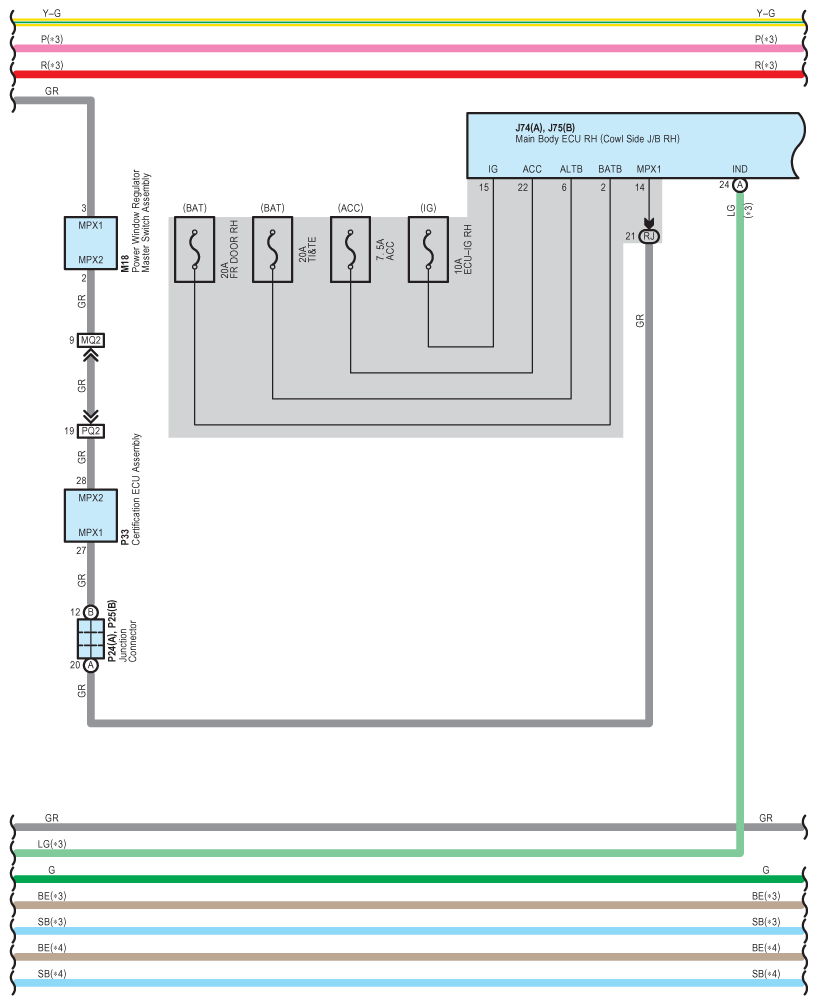

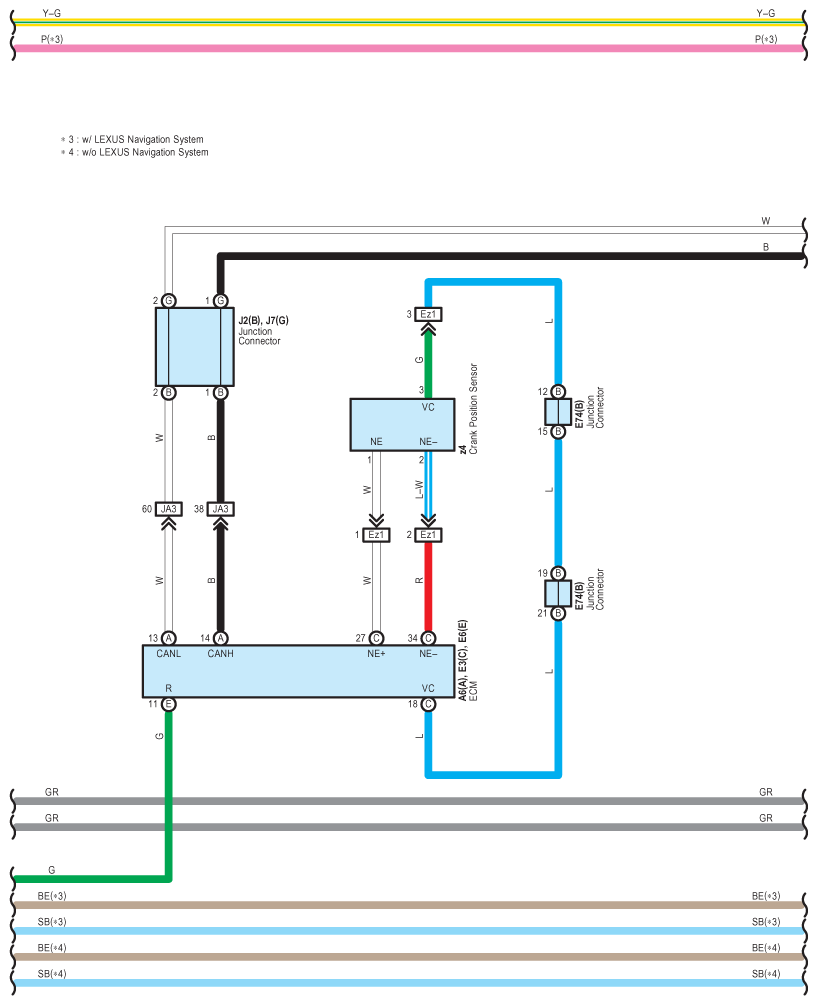

Fig 4: Audio System, Lexus Navigation System And Parking Assist (Rear View Monitor) - Circuit Diagram (4 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

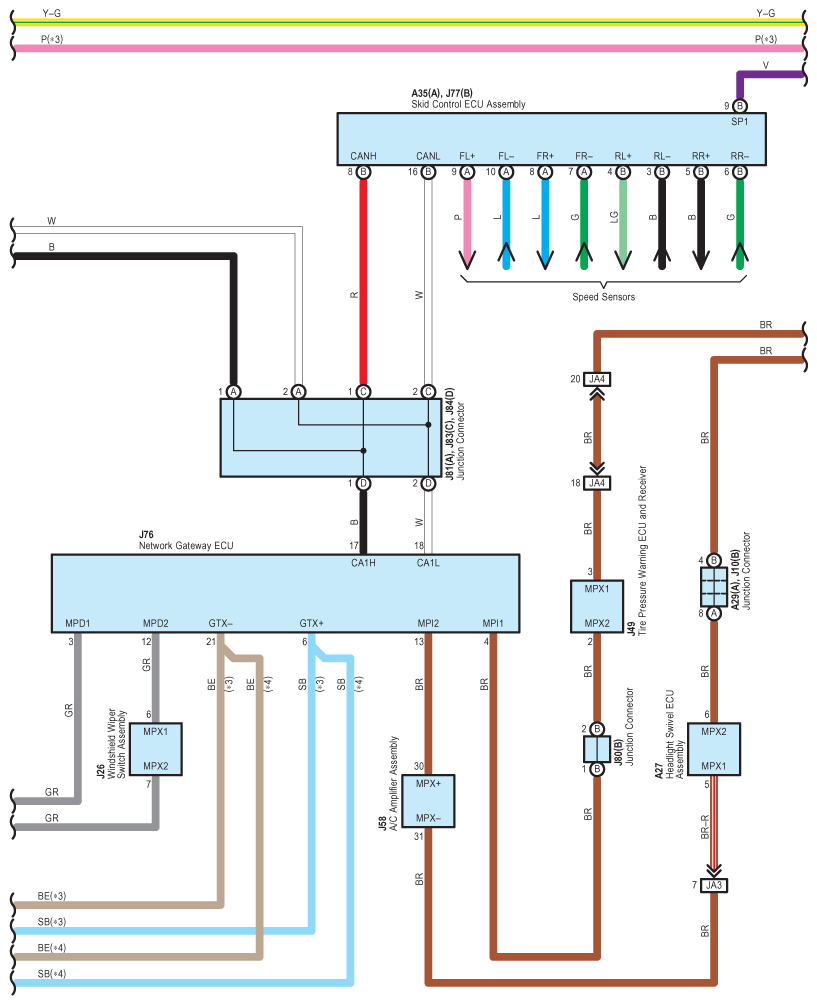

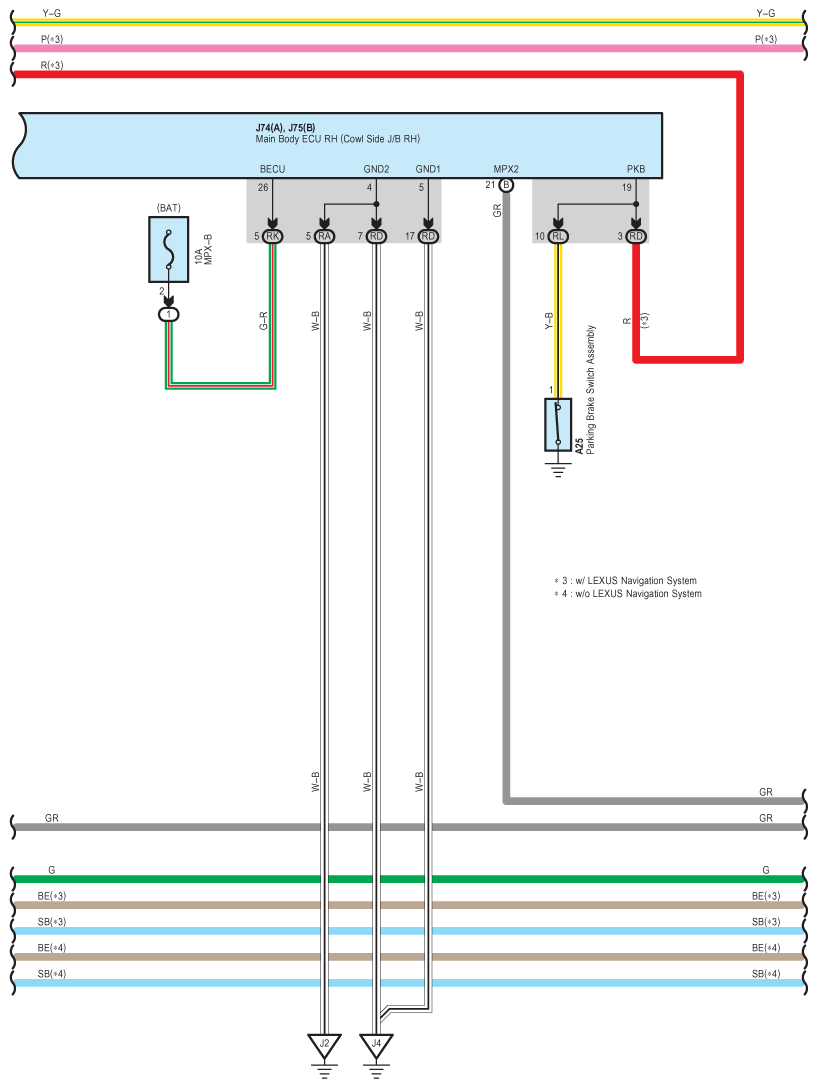

Fig 5: Audio System, Lexus Navigation System And Parking Assist (Rear View Monitor) - Circuit Diagram (5 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

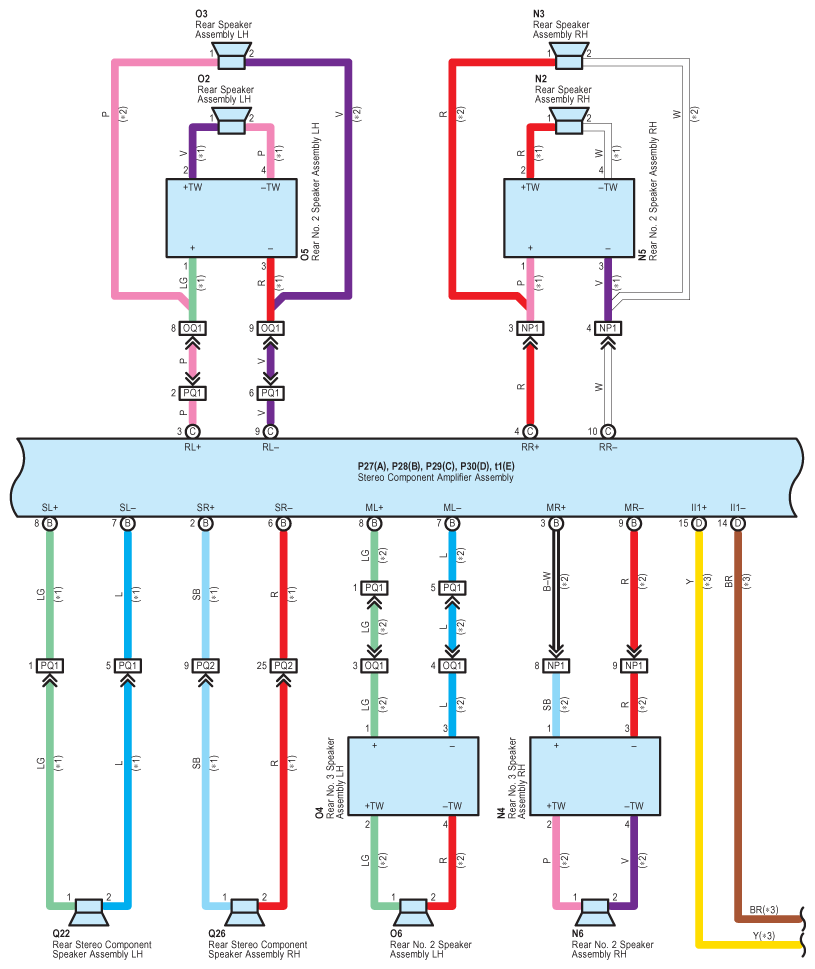

Fig 6: Audio System, Lexus Navigation System And Parking Assist (Rear View Monitor) - Circuit Diagram (6 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

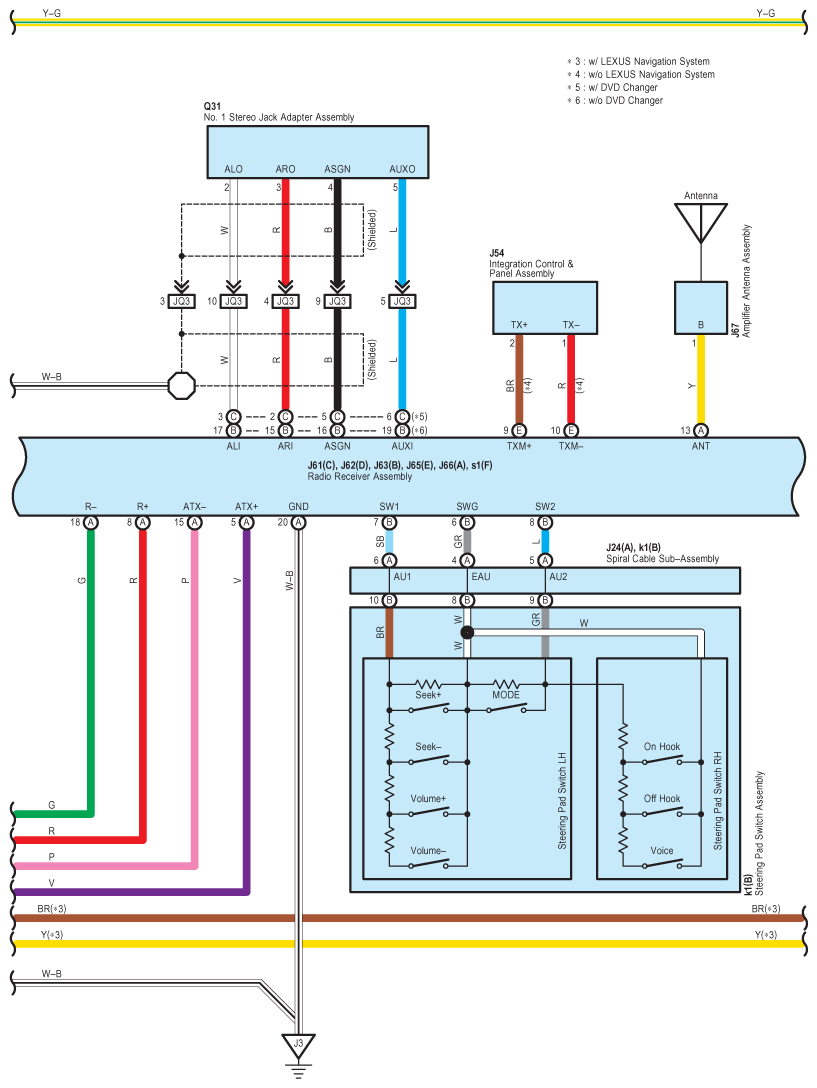

Fig 7: Audio System, Lexus Navigation System And Parking Assist (Rear View Monitor) - Circuit Diagram (7 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

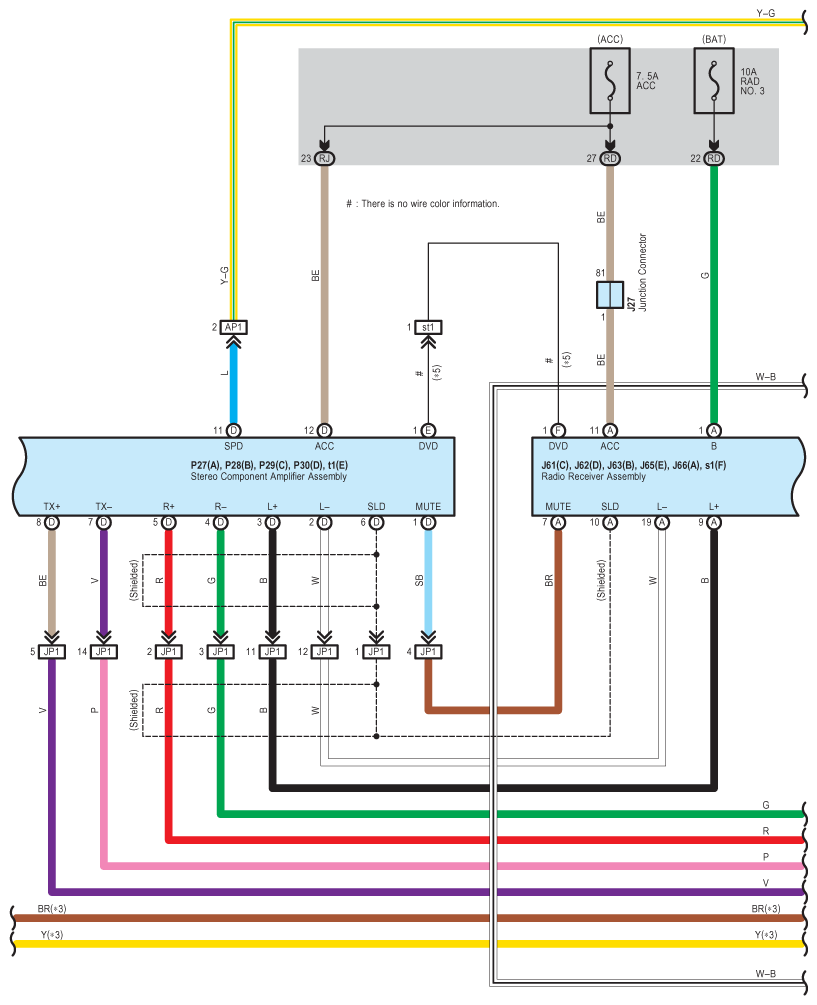

Fig 8: Audio System, Lexus Navigation System And Parking Assist (Rear View Monitor) - Circuit Diagram (8 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Audio System, Lexus Navigation System And Parking Assist (Rear View Monitor) - Circuit Diagram (9 Of 13)

Fig 10: Audio System, Lexus Navigation System And Parking Assist (Rear View Monitor) - Circuit Diagram (10 Of 13)

Fig 11: Audio System, Lexus Navigation System And Parking Assist (Rear View Monitor) - Circuit Diagram (11 Of 13)

Fig 12: Audio System, Lexus Navigation System And Parking Assist (Rear View Monitor) - Circuit Diagram (12 Of 13)

Fig 13: Audio System, Lexus Navigation System And Parking Assist (Rear View Monitor) - Circuit Diagram (13 Of 13)
