Engine Unit: Components: Illustration

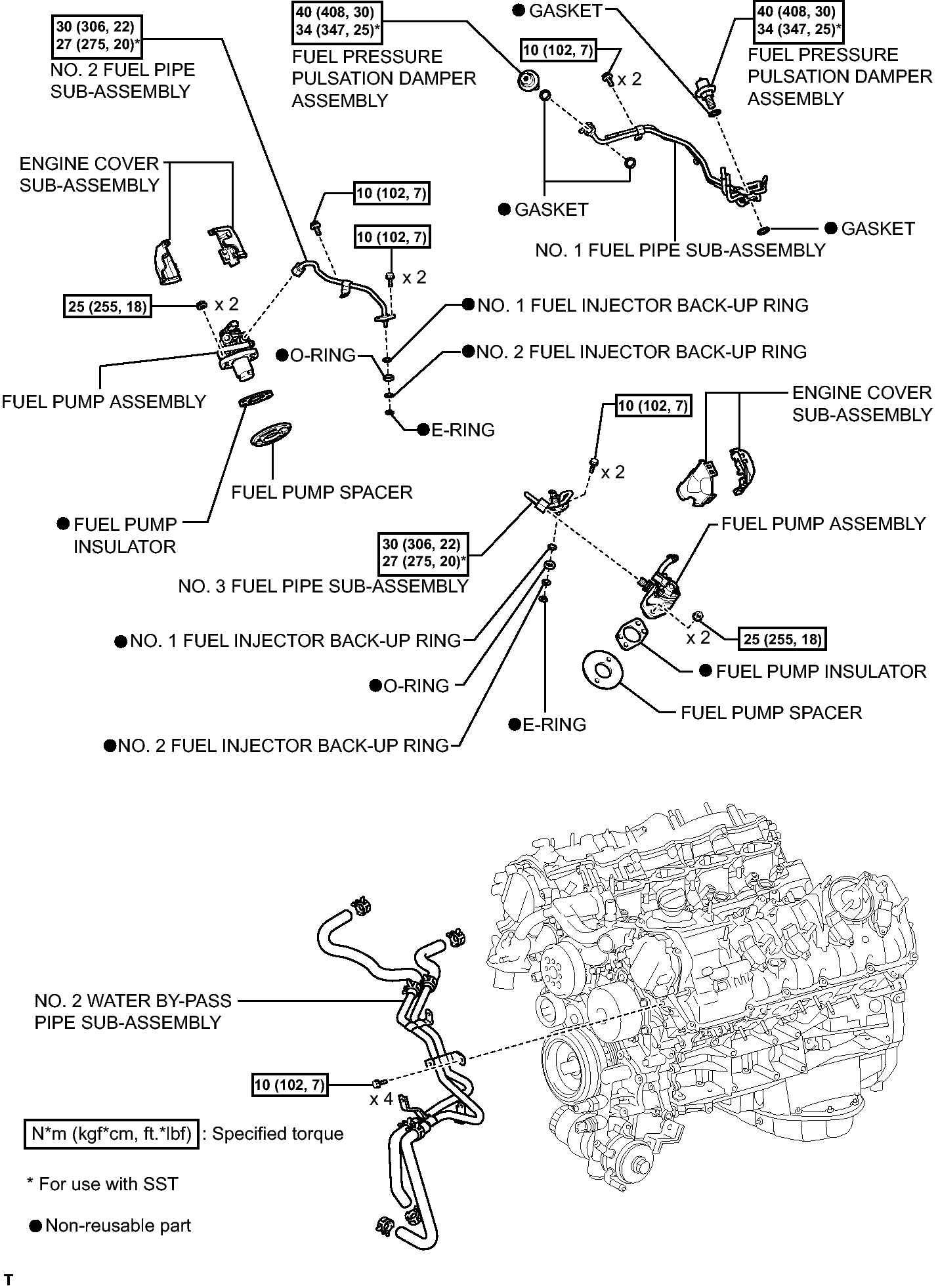

Fig 1: Identifying Engine Unit Replacement Components (1 Of 15) with Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

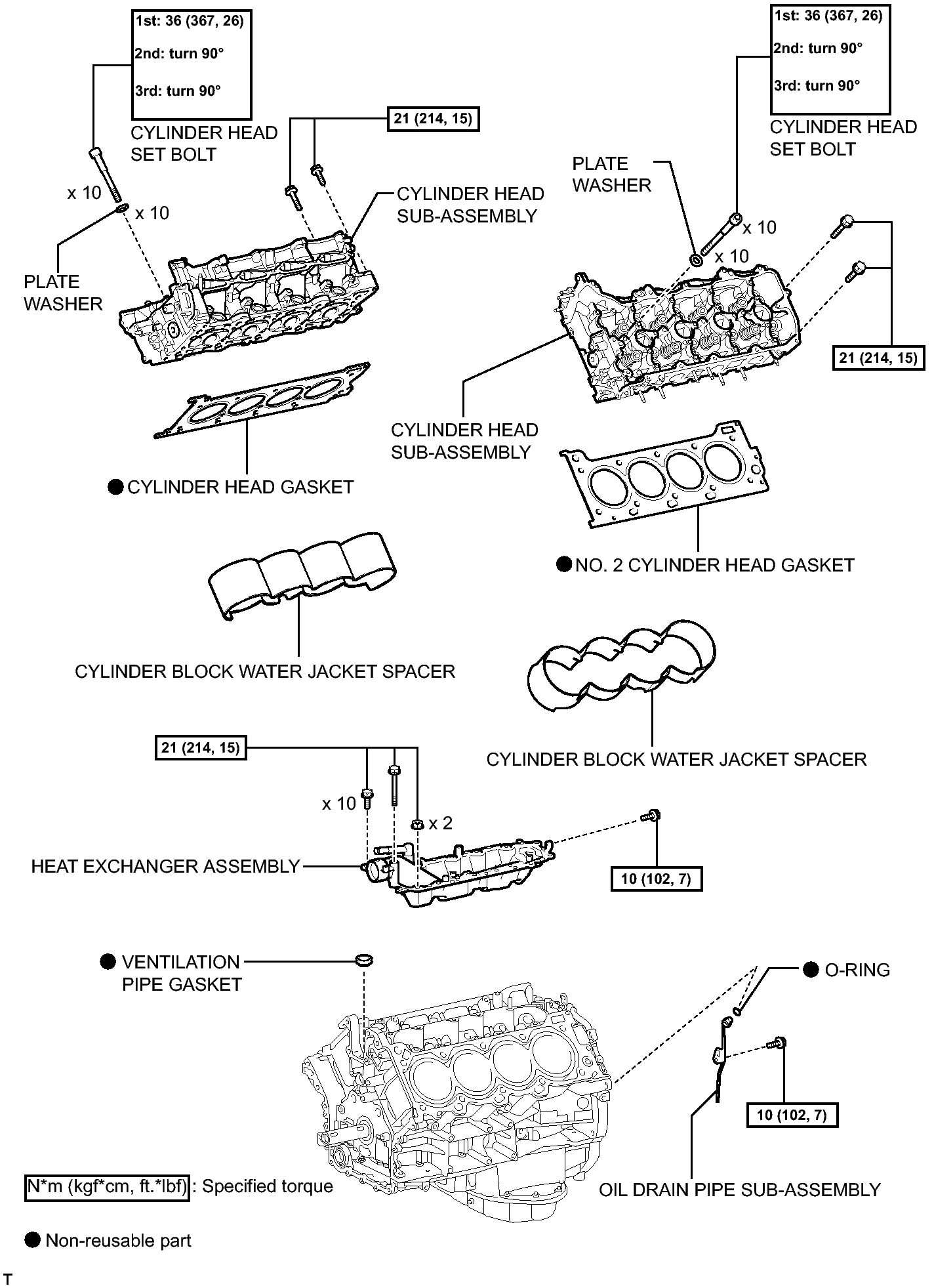

Fig 1: Identifying Engine Unit Replacement Components (2 Of 15) with Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 1: Identifying Engine Unit Replacement Components (3 Of 15) with Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 1: Identifying Engine Unit Replacement Components (4 Of 15) with Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 1: Identifying Engine Unit Replacement Components (5 Of 15) with Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 1: Identifying Engine Unit Replacement Components (6 Of 15) Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 1: Identifying Engine Unit Replacement Components (7 Of 15) with Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 1: Identifying Engine Unit Replacement Components (8 Of 15) with Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 1: Identifying Engine Unit Replacement Components (9 Of 15) with Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 1: Identifying Engine Unit Replacement Components (10 Of 15) with Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 1: Identifying Engine Unit Replacement Components (11 Of 15) with Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 1: Identifying Engine Unit Replacement Components (12 Of 15) with Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 1: Identifying Engine Unit Replacement Components (13 Of 15) with Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 1: Identifying Engine Unit Replacement Components (14 Of 15) with Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 1: Identifying Engine Unit Replacement Components (15 Of 15) with Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
