Monitor Result
Refer to Checking Monitor Status. Refer to CHECKING MONITOR STATUS .
The test value and test limit information are described in the following table. This information is included under Monitor Result in the emission-related DTC sections:
- MID (Monitor Identification Data) is assigned to each emission-related component.
- TID (Test Identification Data) is assigned to each test value.
- Scaling is used to calculate the test value indicated on generic OBD II scan tools.
MONITOR RESULT
| MID | TID | Scaling | Unit | Description |
|---|---|---|---|---|
| $3D | $C9 | Multiply by 0.001 | kPa | Test value for small leak (P0456) Refer to pressure D* |
| $3D | $CA | Multiply by 0.001 | kPa | Test value for gross leak (P0455) Refer to pressure E* |
| $3D | $CB | Multiply by 0.001 | kPa | Test value for leak detection pump OFF stuck (P2401) Refer to pressure A* |
| $3D | $CD | Multiply by 0.001 | kPa | Test value for leak detection pump ON stuck (P2402) Refer to pressure A* |
| $3D | $CE | Multiply by 0.001 | kPa | Test value for vent valve OFF stuck (P2420) Refer to pressure C* |
| $3D | $CF | Multiply by 0.001 | kPa | Test value for vent valve ON stuck (P2419) Refer to pressure A* |
| $3D | $D0 | Multiply by 0.001 | kPa | Test value for reference orifice low flow (P043E) Refer to pressure B* |
| $3D | $D1 | Multiply by 0.001 | kPa | Test value for reference orifice high flow (P043F) Refer to pressure A* |
| $3D | $D4 | Multiply by 0.001 | kPa | Test value for purge VSV closed stuck (P0441) Refer to pressure F* |
| $3D | $D5 | Multiply by 0.001 | kPa | Test value for purge VSV open stuck (P0441) Refer to pressure E* |
| $3D | $D7 | Multiply by 0.001 | kPa | Test value for purge flow insufficient (P0441) Refer to pressure G* |

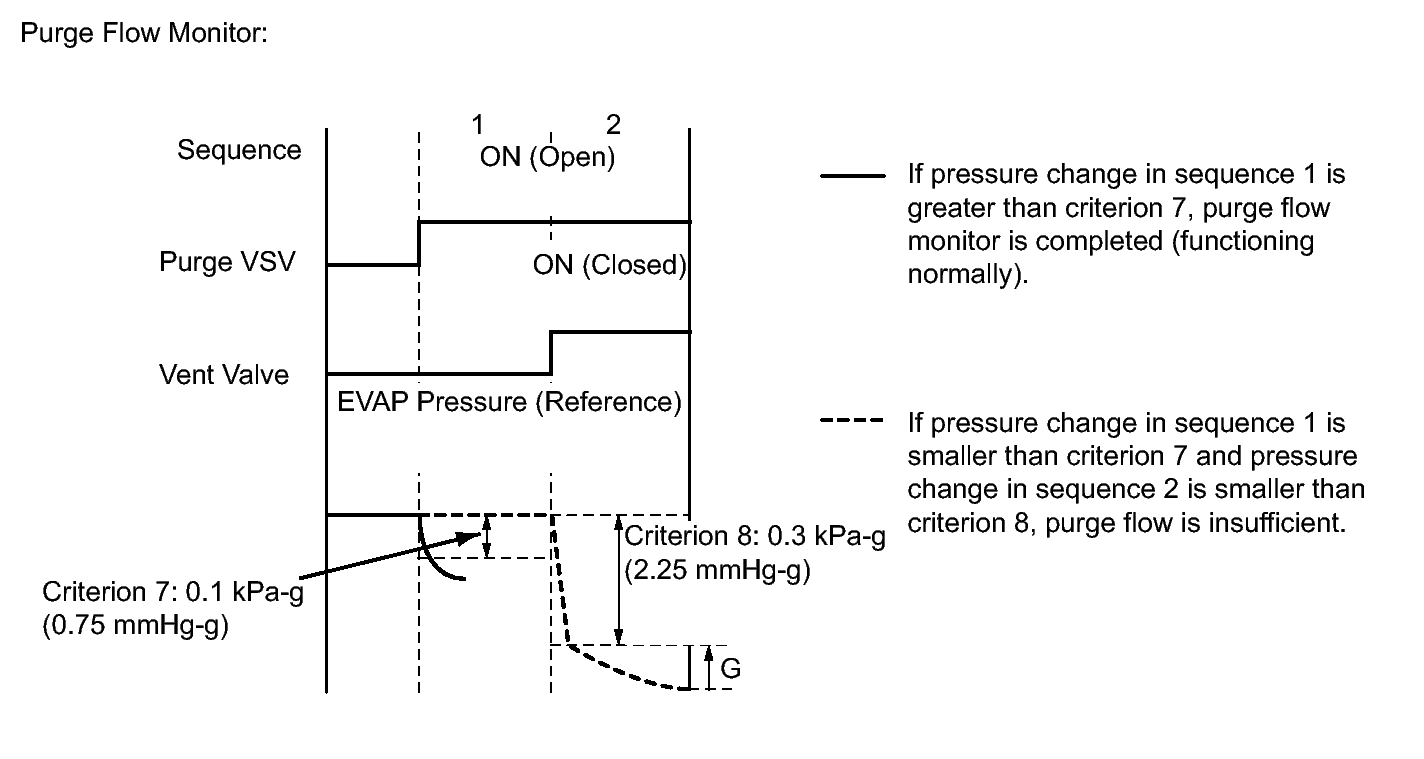

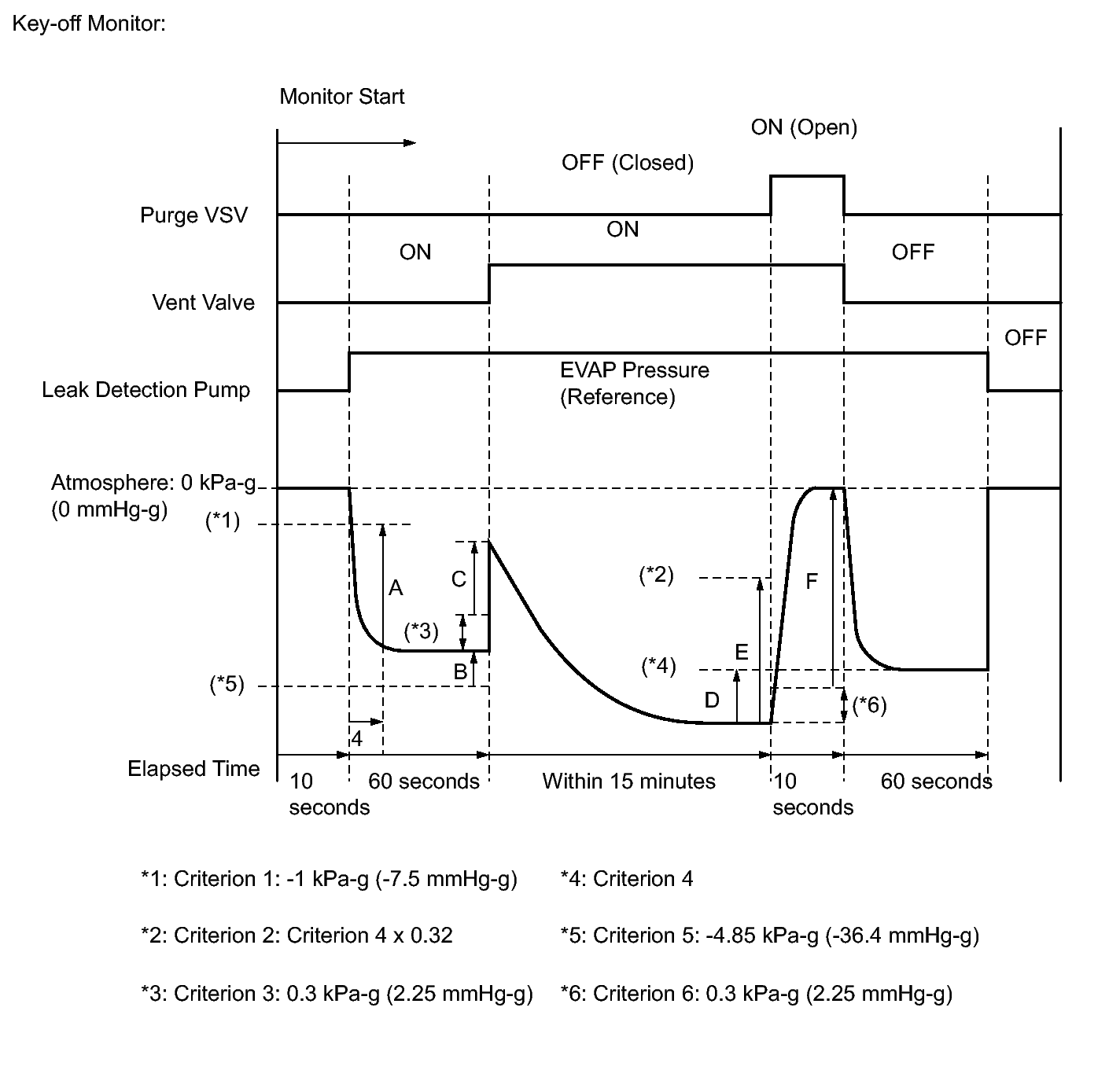

* Pressures A to G are indicated in the diagrams in Fig 1 and Fig 2.
