Confirmation Driving Pattern
HINT:
Performing this confirmation pattern will activate the catalyst monitor. This is very useful for verifying the completion of a repair.
- (a) Connect the Techstream to the DLC3.
- (b) Turn the engine switch on (IG).
- (c) Turn the Techstream ON.
- (d) Clear DTCs (if set). Refer to DTC CHECK / CLEAR .
- (e) Enter the following menus: Powertrain / Engine / Monitor.
- (f) Check that Catalyst / Status2 is Incomplete.

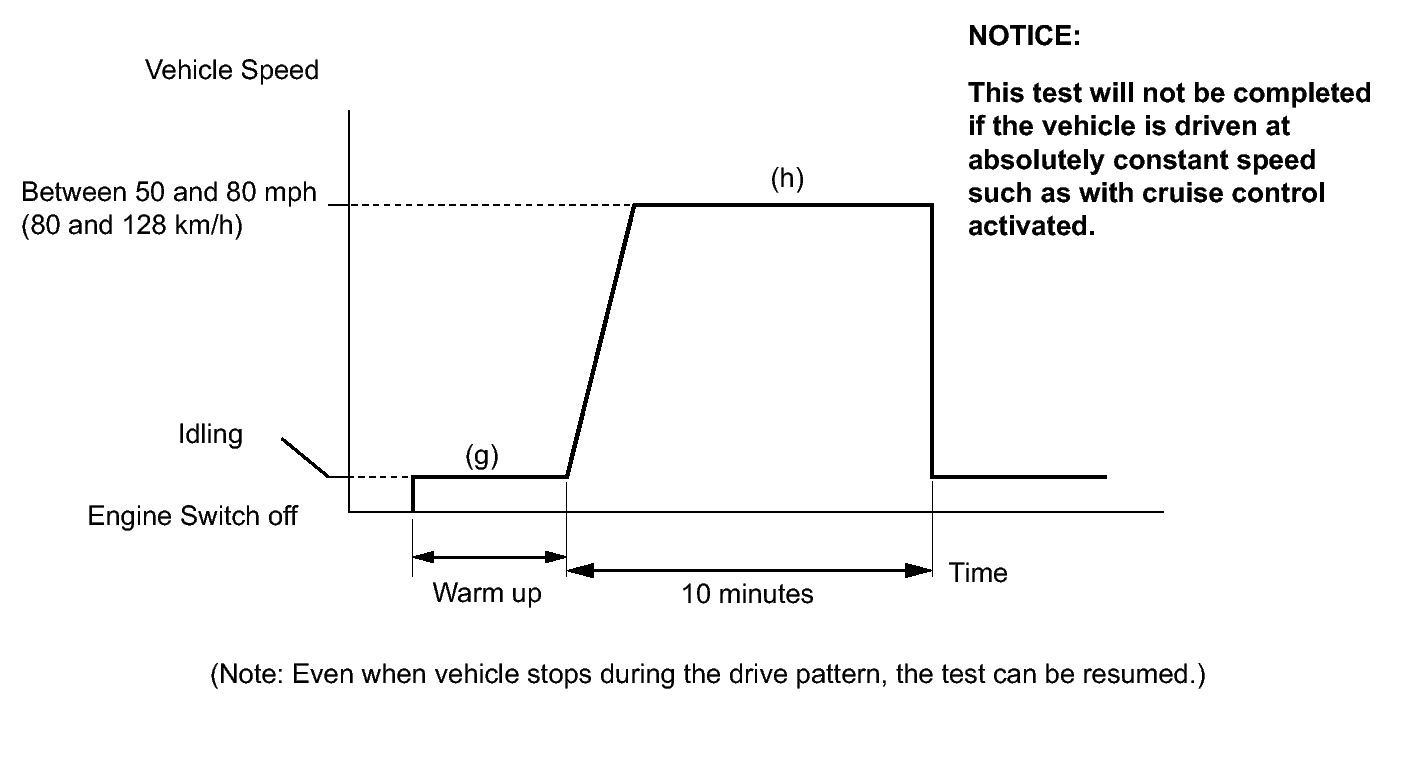

- (g) Start the engine and warm it up.
- (h) Drive the vehicle at between 50 mph and 80 mph (80 km/h and 128 km/h) for at least 10 minutes.
- (i) Those items will change to Complete as Catalyst monitor operates.
- (j) Enter the following menus: Powertrain / Engine / Trouble Codes / Pending; then check if any DTCs (any pending DTCs) are set.
HINT:
- If Catalyst does not change to Complete and any pending DTCs fail to set, extend the driving time.
