Engine Room Relay Block No.3

WARNING: This page is about a different car, the 2008 Lexus IS F. However, it is still accessible from the selected car via links, so may be relevant.

Left Engine Compartment  (See Figure)

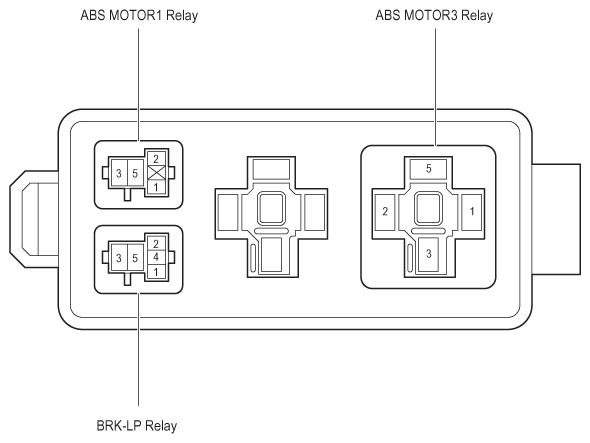

Fig 1: Engine Room R/B No.3 Relay Locations
G07592129Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ENGINE ROOM R/B NO.3 RELAY IDENTIFICATION

RELAY DESCRIPTION
ABS Motor1 Relay
ABS Motor3 Relay
BRK-LP Relay
