Installation (To 12/2010): Installation

WARNING: This page is about a different car, the 2011 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL ATF TEMPERATURE SENSOR ASSEMBLY
1. Coat a new O-ring with ATF and install it to the ATF temperature sensor assembly.

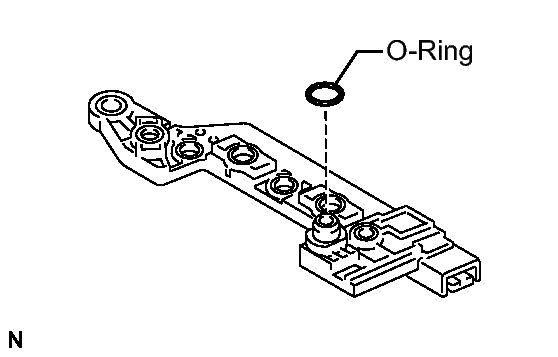

  Fig 1: Identifying O-Ring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Coat the 4 bolts with ATF.
3. Install the ATF temperature sensor assembly and clamp to the valve body with the 4 bolts.

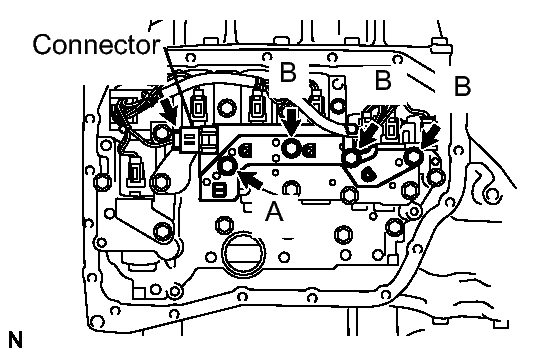

  Fig 2: Identifying ATF Temperature Sensor Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 11 N*m (112 kgf*cm, 8 ft.*lbf)

  Bolt length

  Bolt A

  25 mm (0.98 in.)

  Bolt B

  85 mm (3.35 in.)
4. Connect the connector.
INSTALL VALVE BODY OIL STRAINER ASSEMBLY See step 3
INSTALL AUTOMATIC TRANSAXLE OIL PAN SUB-ASSEMBLY See step 4
INSTALL AUTOMATIC TRANSAXLE ASSEMBLY
HINT:

See step 10.
