AUDIO / VISUAL: REAR SEAT ENTERTAINMENT ECU: INSTALLATION

INSTALLATION





1. INSTALL NO. 1 REAR SEAT ENTERTAINMENT ECU BRACKET

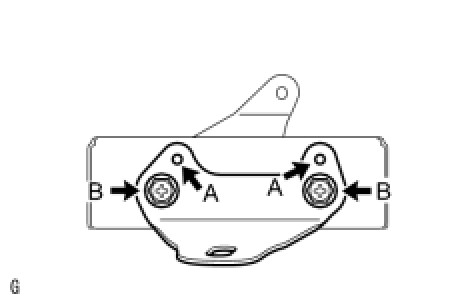

(a) Set the bracket's aligning protrusions labeled A into the ECU holes.
(b) Install the bracket with the 2 bolts labeled B.





2. INSTALL NO. 2 REAR SEAT ENTERTAINMENT ECU BRACKET

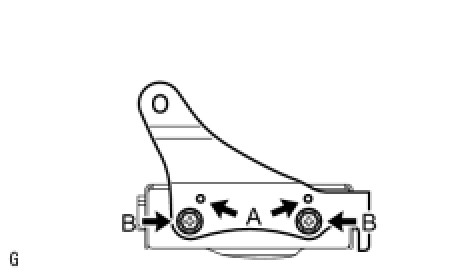

(a) Set the bracket's aligning protrusions labeled A into the ECU holes.
(b) Install the bracket with the 2 bolts labeled B.





3. INSTALL REAR SEAT ENTERTAINMENT ECU WITH BRACKET

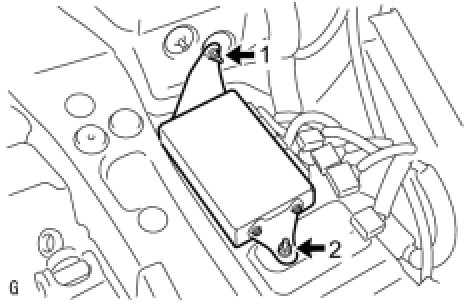

(a) Install the ECU with the 2 nuts in the order shown in the illustration.
(b) Connect the connectors.
4. INSTALL STEREO COMPONENT AMPLIFIER ASSEMBLY Installation
5. INSTALL LUGGAGE COMPARTMENT TRIM COVER ASSEMBLY RH Installation
6. INSTALL NO. 1 COOLER COVER (W/ Rear Cooler) Installation
7. INSTALL LUGGAGE COMPARTMENT TRIM COVER FRONT Installation
8. INSTALL NO. 2 LUGGAGE COMPARTMENT TRIM HOOK (W/O Rear Cooler) Installation
9. INSTALL NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY Installation
10. INSTALL REAR FLOOR FINISH PLATE Installation
11. INSTALL DECK TRIM SIDE BOARD RH Installation
12. INSTALL ROPE HOOK Installation
13. INSTALL ROPE HOOK ASSEMBLY Installation
14. INSTALL LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY Installation
15. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
16. INSTALL COWL TOP VENTILATOR LOUVER RH Installation
17. PERFORM INITIALIZATION
(a) Perform initialization Repair Instruction - Initialization.
NOTE:
Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
