Seat Memory Switch (for Front Side)

SEAT: SEAT MEMORY SWITCH (for Front Side): INSPECTION

INSPECTION

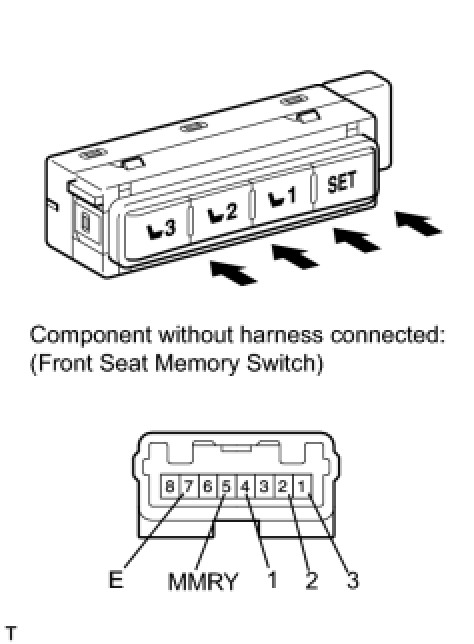

1. INSPECT SEAT MEMORY SWITCH LH

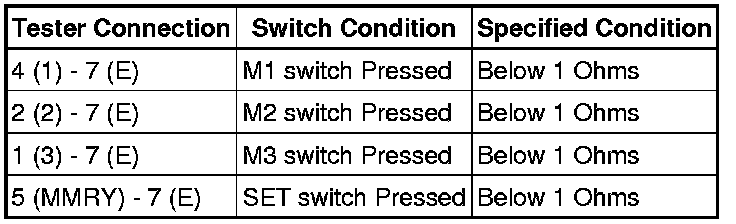

(a) Measure the resistance according to the value(s) in the table below.
Standard resistance:





If the result is not as specified, replace the switch.

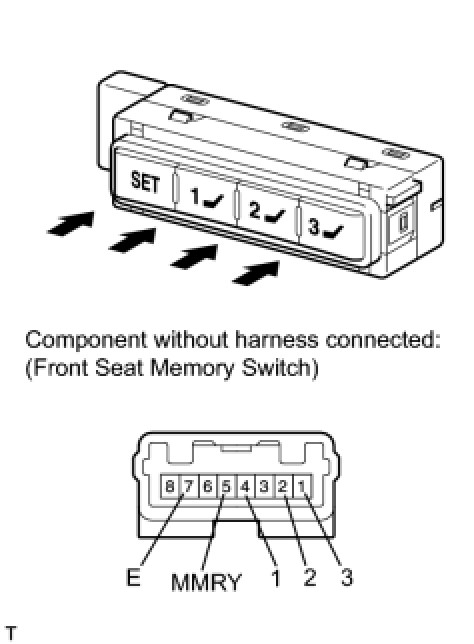

2. INSPECT SEAT MEMORY SWITCH RH





(a) Measure the resistance according to the value(s) in the table below.
Standard resistance:





If the result is not as specified, replace the switch.
