STEERING COLUMN: MULTIPLEX TILT AND TELESCOPIC ECU: REMOVAL

REMOVAL

1. REMOVE STEERING COLUMN ASSEMBLY
HINT: Refer to the instructions for removal of the steering column assembly Removal.

2. REMOVE STEERING LOCK ACTUATOR ASSEMBLY
(a) Using a center punch, mark the center of the 2 tapered-head bolts.
(b) Using a 3 to 4 mm (0.12 to 0.16 in.) drill, drill a hole in the 2 bolts.

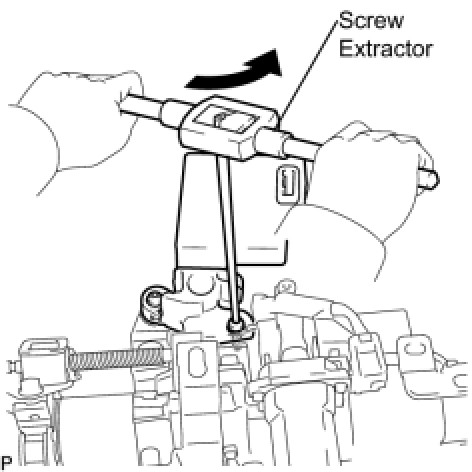

(c) Using a screw extractor, remove the 2 bolts and steering lock actuator assembly from the steering column assembly.
3. REMOVE MULTIPLEX TILT AND TELESCOPIC ECU





(a) Disconnect the ECU connector.
(b) Using a screwdriver, remove the 2 screws and ECU.
