Display And Navigation Assembly: Components: Illustration

WARNING: This page is about a different car, the 2010 Lexus LS 460L and 2010 Lexus LS 460. However, it is still accessible from the selected car via links, so may be relevant.

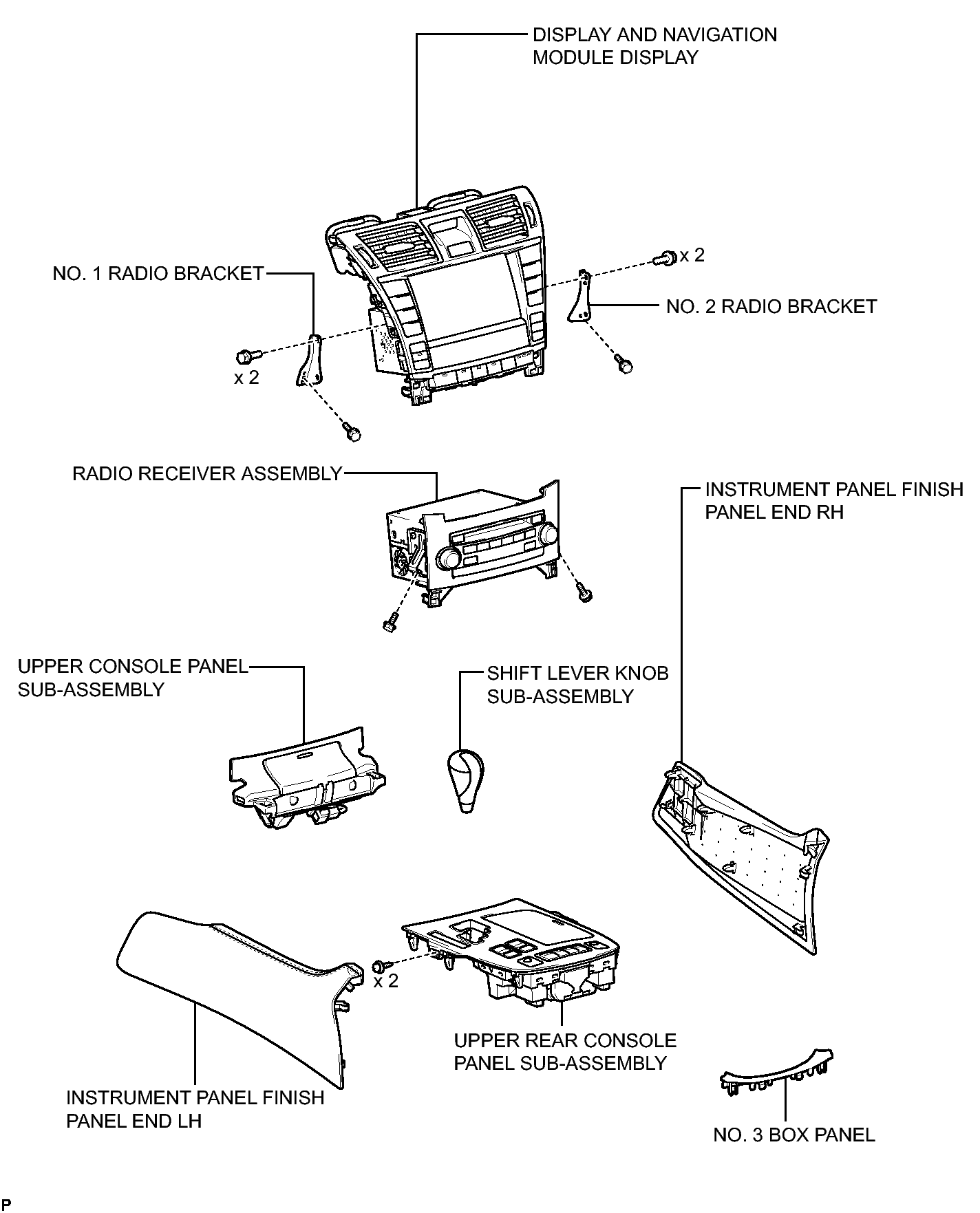

Fig 1: Identify Display And Navigation Assembly Replacement Components (1 of 2)
GTY266964Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

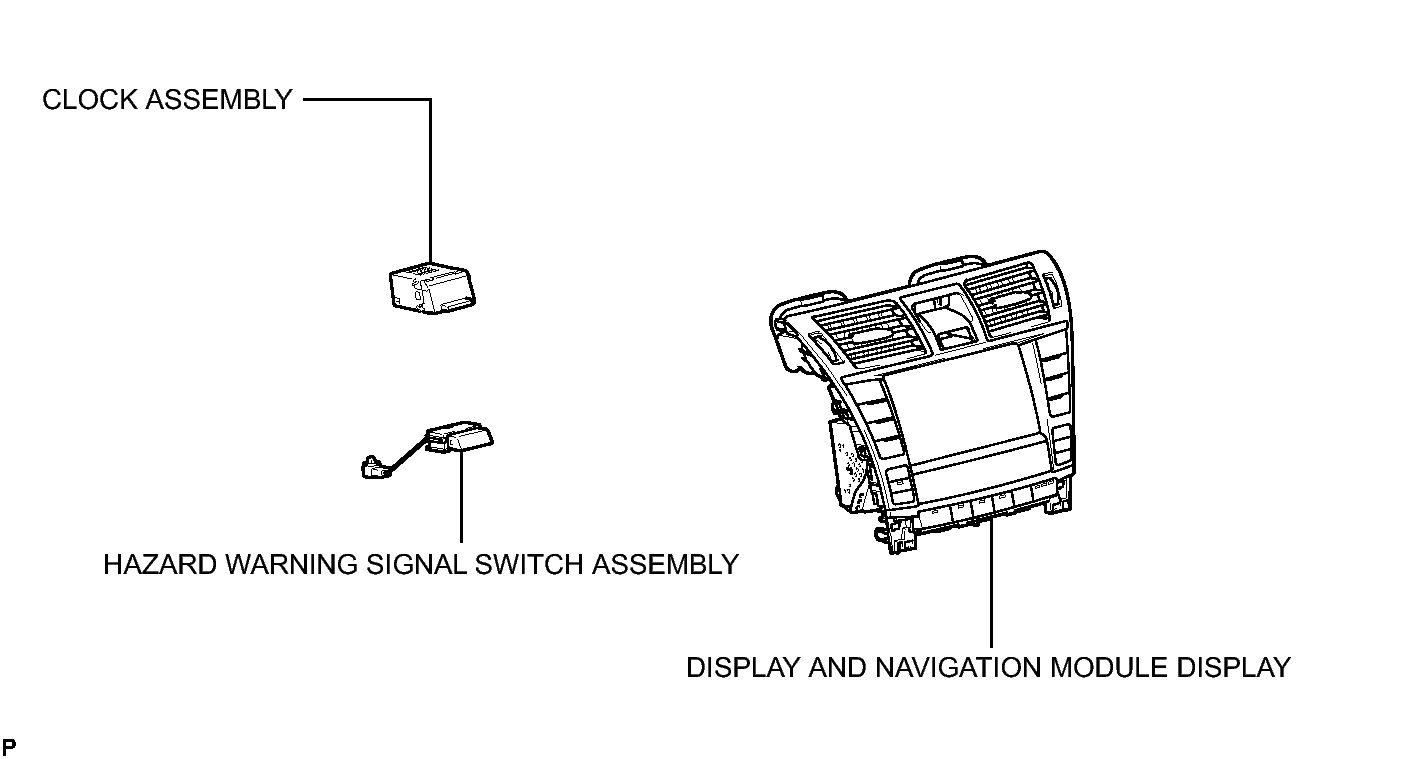

Fig 1: Identify Display And Navigation Assembly Replacement Components (2 of 2)
GTY283984Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
