Display And Navigation Assembly: Installation: Installation

WARNING: This page is about a different car, the 2010 Lexus LS 460L and 2010 Lexus LS 460. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

A bolt without a torque specification is shown in the standard bolt chart. Refer to SPECIFIED TORQUE FOR STANDARD BOLTS .

INSTALL NO. 2 RADIO BRACKET

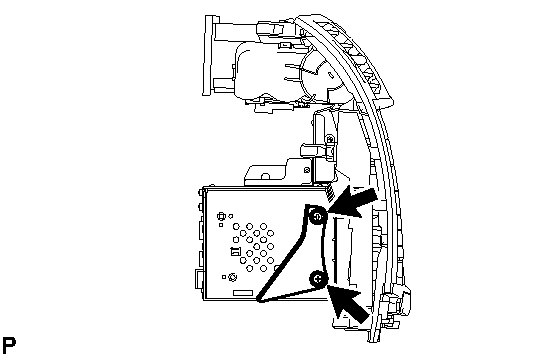

Fig 1: Installing The Bracket With The 2 Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Install the bracket with the 2 bolts.
INSTALL NO. 1 RADIO BRACKET

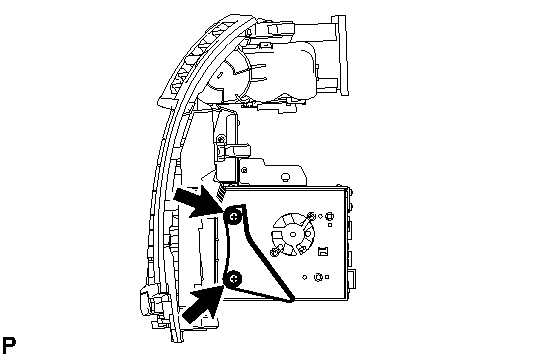

Fig 2: Installing The Bracket With The 2 Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Install the bracket with the 2 bolts.
INSTALL DISPLAY AND NAVIGATION MODULE DISPLAY WITH BRACKET
1. Connect the connectors.
2. Insert the display and navigation module display with bracket to attach the 6 clips on its backside.

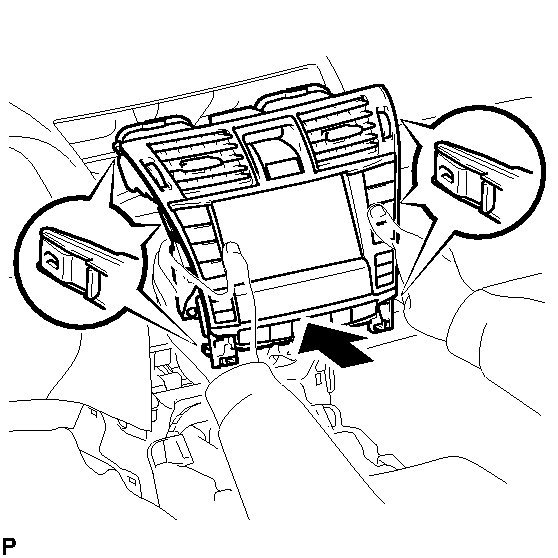

  Fig 3: Insert The Display And Navigation Module Display
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the display and navigation module display with bracket with the 2 bolts.

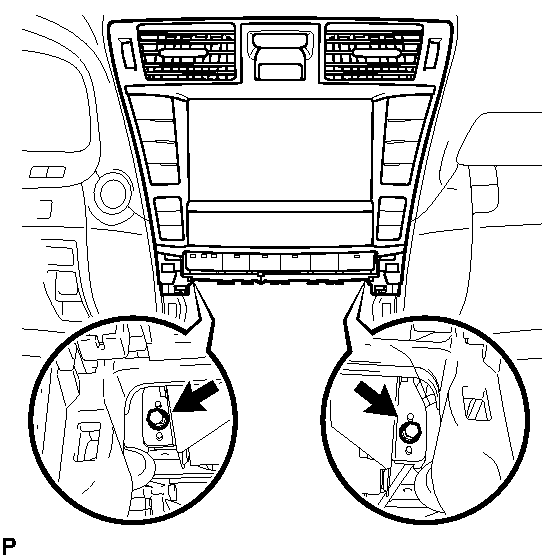

  Fig 4: Installing The Display And Navigation Module Display
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL RADIO RECEIVER ASSEMBLY WITH BRACKET . Refer to INSTALLATION - Step 4
INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY . Refer to INSTALLATION - Step 4
INSTALL UPPER REAR CONSOLE PANEL SUB-ASSEMBLY . Refer to INSTALLATION - Step 5
INSTALL NO. 3 BOX PANEL . Refer to INSTALLATION - Step 6
INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY . Refer to INSTALLATION - Step 7
INSTALL INSTRUMENT PANEL FINISH PANEL END RH . Refer to INSTALLATION - Step 9
INSTALL INSTRUMENT PANEL FINISH PANEL END LH . Refer to INSTALLATION - Step 8
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .
INSTALL COWL TOP VENTILATOR LOUVER RH . Refer to INSTALLATION - Step 11
