DTC 5-1 LEXUS Link Communication Error: Wiring Diagram

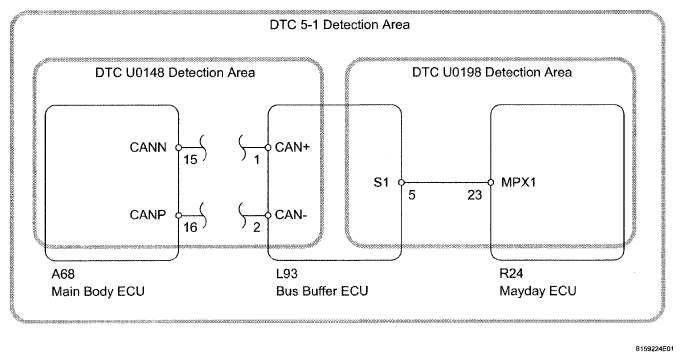

Fig 1: LEXUS Link Communication Error - Wiring Diagram
G04945817Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
