DTC U0198 Lost Communication with Telematic Control Module: Wiring Diagram

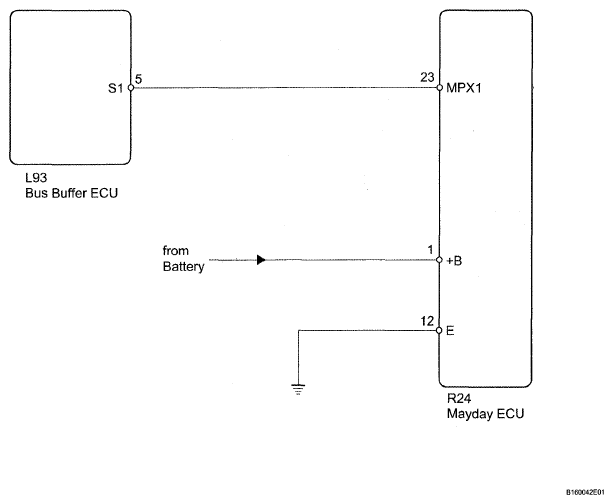

Fig 1: Lost Communication With Telematic Control Module - Wiring Diagram
G04945822Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
