Inspection Procedure

NOTE: When using the Techstream with the engine switch off to troubleshoot:
Connect the Techstream to the vehicle, and turn a courtesy switch on and off at 1.5 second intervals until communication between the Techstream and vehicle begins.

CLEAR DTC
1. Clear the DTC (see DTC CHECK/CLEAR ).

CHECK FOR DTC

Check for DTC (see DTC CHECK/CLEAR ).

Result:

RESULT REFERENCE

Result	Proceed to
DTC U0211, U0246, U1130* and U1131* are output	A
DTC U0211, U0246, U1130* or U1131* is output	B
No DTC is output	C
HINT: *: w/ Rear Climate Control Seat System

B: GO TO DTC CHART

C: USE SIMULATION METHOD TO CHECK (See HOW TO PROCEED WITH TROUBLESHOOTING )

A: Go to next step

CHECK HARNESS AND CONNECTOR (REAR POWER SEAT MODULE SWITCH - POSITION CONTROL ECU LH)

Disconnect the r2*1 or S15*2 module switch connectors.
HINT:

*1: except Ottoman

*2: for Ottoman
Disconnect the f25 ECU connector.

Measure the resistance and voltage according to the value(s) in the table below.

Standard resistance

except Ottoman:

SPECIFIED CONDITION CHART

Tester Connection	Condition	Specified Condition
r2-6 (LIN) - f25-7 (LIN)	Always	Below 1 Ω
r2-6 (LIN) or f25-7 (LIN) - Body ground	Always	10 kΩ or higher

for Ottoman:

SPECIFIED CONDITION CHART

Tester Connection	Condition	Specified Condition
S15-3 (LIN) - f25-7 (LIN)	Always	Below 1 Ω
S15-3 (LIN) or f25-7 (LIN) - Body ground	Always	10 kΩ or higher

Standard voltage

except Ottoman:

VOLTAGE SPECIFICATION

Tester Connection	Condition	Specified Condition
r2-6 (LIN) or f25-7 (LIN) - Body ground	Always	Below 1 V

for Ottoman:

SPECIFIED CONDITION CHART

Tester Connection	Condition	Specified Condition
S15-3 (LIN) or f25-7 (LIN) - Body ground	Always	Below 1 V

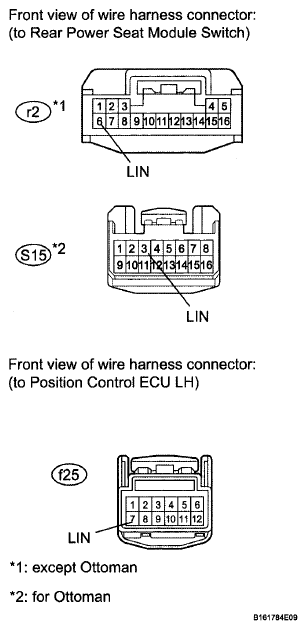

Fig 1: Identifying f25 ECU Connector Terminal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: Go to step 4

OK: REPLACE REAR POWER SEAT MODULE SWITCH (See REMOVAL )

CLEAR DTC
1. Reconnect the r2*1 or S15*2 module switch connectors.
  HINT:

  *1: except Ottoman

  *2: for Ottoman
2. Clear the DTC (see DTC CHECK/CLEAR ).

CHECK FOR DTC

Disconnect the f25 ECU connector.

Recheck for DTC (see DTC CHECK/CLEAR ).

Result:

RESULT REFERENCE

Result	Proceed to
DTC U0211, U0246, U1130* and U1131* are output	A
DTC U0211 is output	B
HINT: *: w/ Rear Climate Control Seat System

B: REPLACE POSITION CONTROL ECU RH

A: Go to next step

CLEAR DTC
1. Reconnect the f25 ECU connector.
2. Clear the DTC (see DTC CHECK/CLEAR ).

CHECK FOR DTC

Disconnect the f25 ECU connector.

Recheck for DTC (see DTC CHECK/CLEAR ).

Result:

RESULT REFERENCE

Result	Proceed to
DTC U0211 and U0246 are output	C
DTC U0211, U0246, U1130* and U1131* are output	A
DTC U0246 is output	B
HINT: *: w/ Rear Climate Control Seat System

B: REPLACE POSITION CONTROL ECU LH

C: REPAIR OR REPLACE HARNESS OR CONNECTOR

A: Go to next step

CLEAR DTC
1. Reconnect the f25 ECU connector.
2. Clear the DTC (see DTC CHECK/CLEAR ).

CHECK FOR DTC

Disconnect the f8 ECU connector.

Recheck for DTC (see DTC CHECK/CLEAR ).

Result:

RESULT REFERENCE

Result	Proceed to
DTC U0211, U0246, U1130* and U1131* are output	A
DTC U1130* is output	B
HINT: *: w/ Rear Climate Control Seat System

B: REPLACE REAR SEAT CLIMATE CONTROL ECU RH

A: Go to next step

CLEAR DTC
1. Reconnect the f8 ECU connector.
2. Clear the DTC (see DTC CHECK/CLEAR ).

CHECK FOR DTC

Disconnect the f28 ECU connector.

Recheck for DTC (see DTC CHECK/CLEAR ).

Result:

RESULT REFERENCE

Result	Proceed to
DTC U0211, U0246, U1130* and U1131* are output	A
DTC U1131* is output	B
HINT: *: w/ Rear Climate Control Seat System

B: REPLACE REAR SEAT CLIMATE CONTROL ECU LH

A: REPAIR OR REPLACE HARNESS OR CONNECTOR
