System Diagram

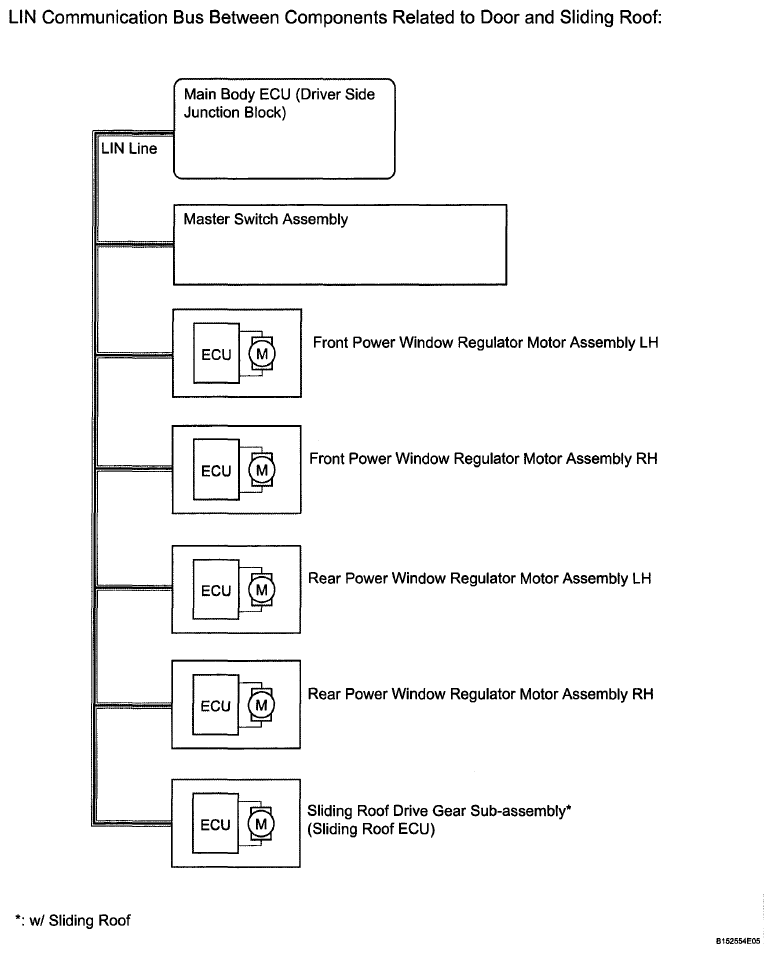

Fig 1: LIN Communication System Diagram (1 Of 9)

G06198293

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

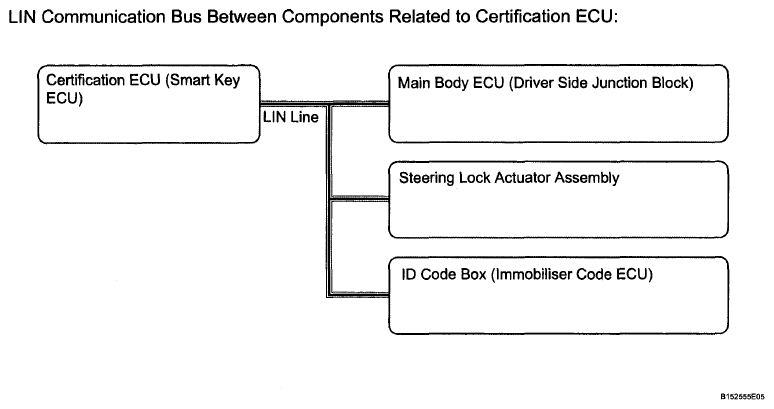

Fig 2: LIN Communication System Diagram (2 Of 9)

G06198294

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

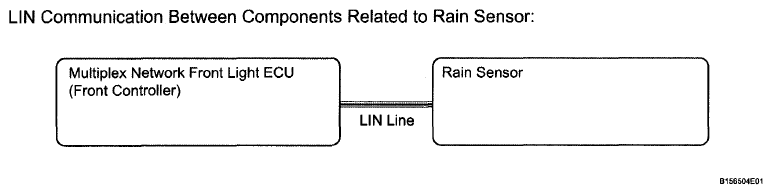

Fig 3: LIN Communication System Diagram (3 Of 9)

G06198295

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

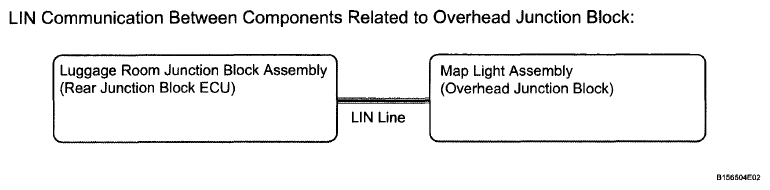

Fig 4: LIN Communication System Diagram (4 Of 9)

G06198296

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

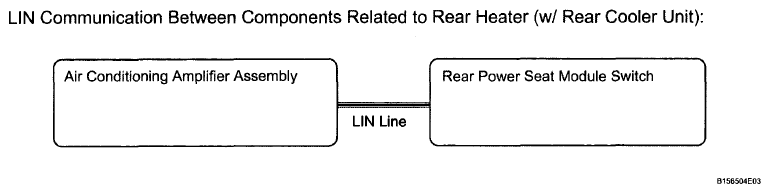

Fig 5: LIN Communication System Diagram (5 Of 9)

G06198297

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

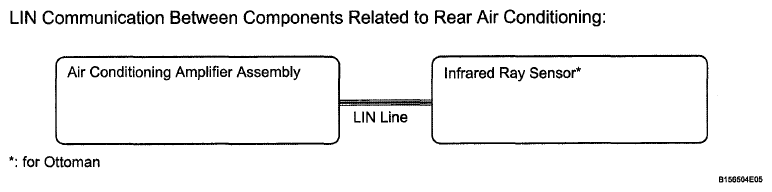

Fig 6: LIN Communication System Diagram (6 Of 9)

G06198298

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

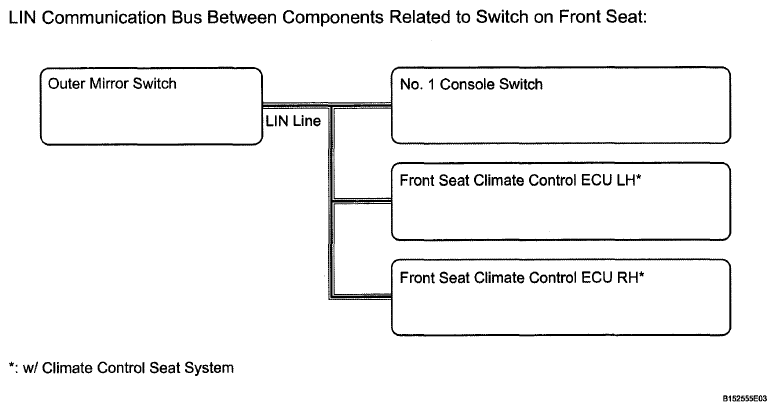

Fig 7: LIN Communication System Diagram (7 Of 9)

G06198299

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

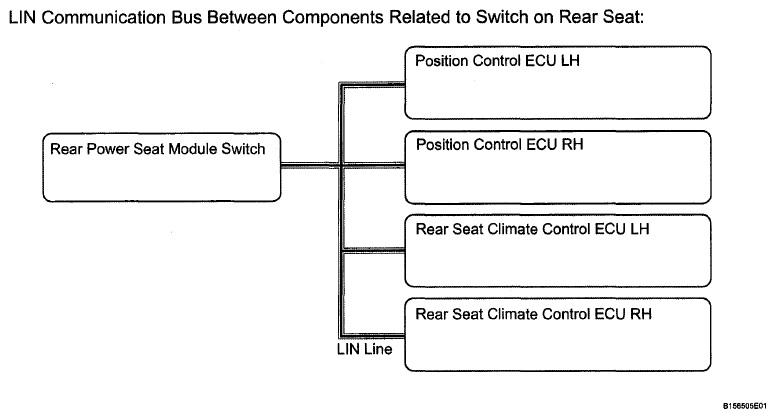

Fig 8: LIN Communication System Diagram (8 Of 9)

G06198300

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

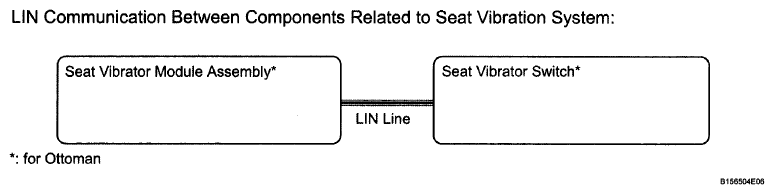

Fig 9: LIN Communication System Diagram (9 Of 9)

G06198301

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
