Inspection Procedure

CHECK FUSE (D-IG1-2)

Measure the resistance according to the value(s) in the table below.

Standard resistance

STANDARD RESISTANCE REFERENCE CHART

Tester Connection	Condition	Specified Condition
D-IG1-2 fuse	Always	Below 1 Ω

NG: REPLACE FUSE

OK: Go to next step

CHECK HARNESS AND CONNECTOR (DRIVING SUPPORT ECU - BATTERY AND BODY GROUND)

Measure the voltage according to the value(s) in the table below.

Standard voltage

STANDARD VOLTAGE REFERENCE CHART

Tester Connection	Condition	Specified Condition
A33-13 (B) - Body ground	Engine switch on (IG)	11 to 14 V
A33-13 (B) - Body ground	Engine switch off	Below 1 V

Measure the resistance according to the value(s) in the table below.

Standard resistance

STANDARD RESISTANCE REFERENCE CHART

Tester Connection	Condition	Specified Condition
A33-25 (GND) - Body ground	Always	Below 1 Ω

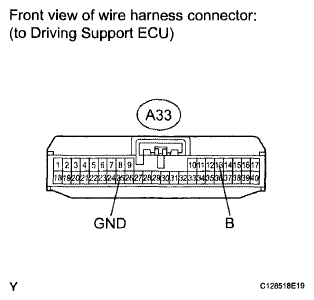

Fig 1: Identifying A33 ECU Connector Terminals

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE (See PROBLEM SYMPTOMS TABLE )
