Display And Navigation Assembly: Removal: Removal

WARNING: This page is about a different car, the 2010 Lexus LS 460L and 2010 Lexus LS 460. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE COWL TOP VENTILATOR LOUVER RH  . Refer to REMOVAL - Step 1
  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    NOTE:
    • w/ Navigation System (for HDD):

      After the engine switch is turned off, the display and navigation module display (HDD navigation system) records various types of memory and settings. As a result, after turning the engine switch off, be sure to wait for the time specified in the following table before disconnecting the cable from the negative (-) battery terminal.

      Waiting Time before Disconnecting Cable from Negative (-) Battery Terminal

      Condition Waiting Time
      Vehicle enrolled in safety connect system 6 minutes
      Vehicle not enrolled in safety connect system 1 minute
    • When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .
  3. REMOVE INSTRUMENT PANEL FINISH PANEL END LH  . Refer to REMOVAL - Step 1
  4. REMOVE INSTRUMENT PANEL FINISH PANEL END RH  . Refer to REMOVAL - Step 2
  5. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY  . Refer to REMOVAL - Step 3
  6. REMOVE NO. 3 BOX PANEL  . Refer to REMOVAL - Step 4
  7. REMOVE UPPER REAR CONSOLE PANEL SUB-ASSEMBLY  . Refer to REMOVAL - Step 5
  8. REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY  . Refer to REMOVAL - Step 6
  9. REMOVE RADIO RECEIVER ASSEMBLY WITH BRACKET  . Refer to REMOVAL - Step 9
  10. REMOVE DISPLAY AND NAVIGATION MODULE DISPLAY WITH BRACKET
    Fig 1: Removing the 2 bolts Pull The Display And Navigation Module Display
    GTY284436Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the 2 bolts.
    2. Pull the display and navigation module display with bracket to detach the 6 clips on the backside of the display and navigation module display with bracket.
    3. Disconnect the connectors and remove the display and navigation module display with bracket.

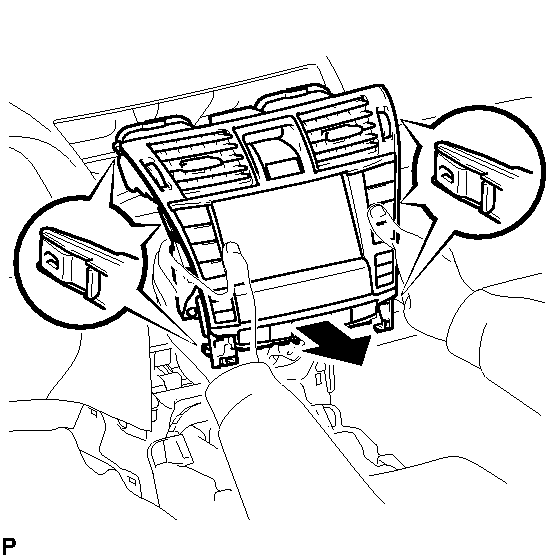

      Fig 2: Removing The Display And Navigation Module Display
      GTY266908Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE NO. 2 RADIO BRACKET
    Fig 3: Removing The 2 Bolts And Bracket
    GTY267081Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the 2 bolts and bracket.
  12. REMOVE NO. 1 RADIO BRACKET
    Fig 4: Removing The 2 Bolts And Bracket
    GTY267357Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the 2 bolts and bracket.
