Steering Pad Switch: Installation: Installation

WARNING: This page is about a different car, the 2010 Lexus GS 450h. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL STEERING PAD SWITCH ASSEMBLY
1. Engage the 2 claws and pin and install the steering pad switch assembly.

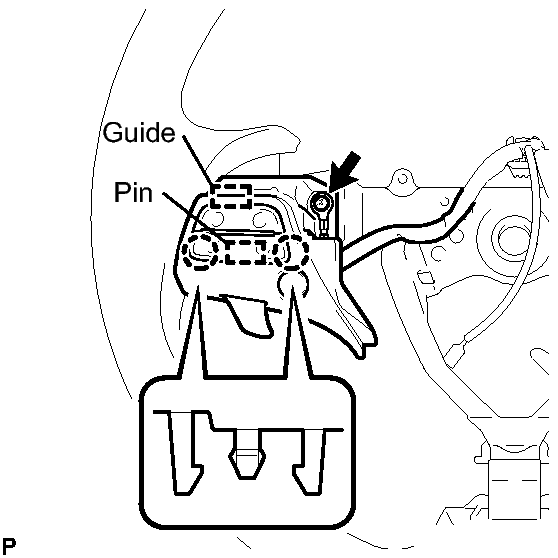

  Fig 1: Locating Steering Pad Switch Assembly Pins And Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the screw.
  Torque: 2.4 N*m (24 kgf*cm, 21 in.*lbf)
3. Engage the 2 claws and pin and install the steering pad switch assembly.

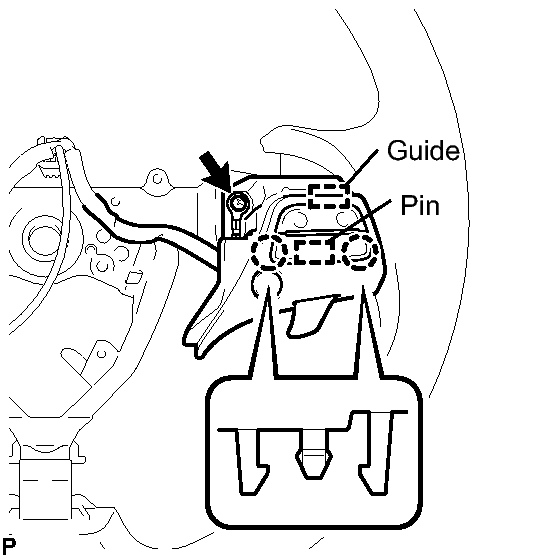

  Fig 2: Identifying Steering Pad Switch Assembly Claws And Pin
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Install the screw.
  Torque: 2.4 N*m (24 kgf*cm, 21 in.*lbf)
INSTALL LOWER STEERING WHEEL BOSS COVER
1. Engage the 2 claws.

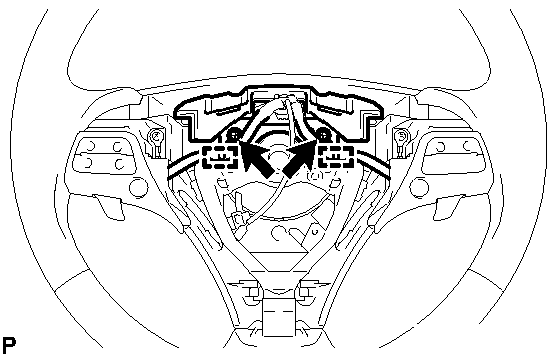

  Fig 3: Locating Lower Steering Wheel Boss Cover Screws And Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the lower steering wheel boss cover with the 2 screws.
INSTALL STEERING SHAKE DAMPER
1. Install the steering shake damper with the 2 screws.

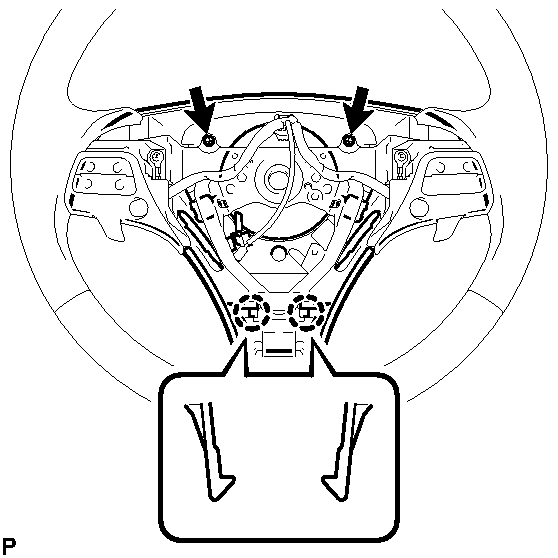

  Fig 4: Locating Steering Shake Damper Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Engage the 2 harness clamps.
INSTALL CRUISE CONTROL MAIN SWITCH . Refer to INSTALLATION - Step 1
ADJUST SPIRAL CABLE WITH STEERING SENSOR . Refer to INSTALLATION - Step 4
INSTALL STEERING WHEEL ASSEMBLY . Refer to INSTALLATION - Step 13
INSTALL STEERING PAD . Refer to INSTALLATION - Step 1
INSTALL LOWER NO. 3 STEERING WHEEL COVER
INSTALL LOWER NO. 2 STEERING WHEEL COVER
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .
INSPECT STEERING PAD . Refer to INSTALLATION - Step 5
INSPECT SRS WARNING LIGHT
