DTC P0715 Input/Turbine Speed Sensor Circuit Malfunction; DTC P0717 Input Speed Sensor Circuit No Signal: Description

WARNING: This page is about a different variant/trim than selected.

The speed sensor (NT) detects the input axis rotation speed and inputs it into the TCM as a signal. Based on the transmission speed sensor (NT) signal and the transmission speed sensor (NC3 and SP2) signal, the TCM controls engine torque and shift timing. Also, based on the input axis rotation speed and the engine speed signal, lock-up control is performed.

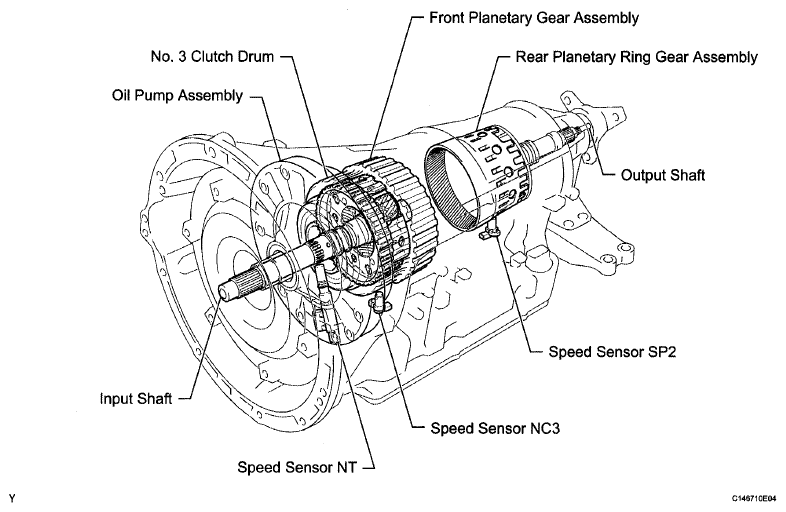

Fig 1: Identifying Speed Sensor (SP2) Location
G06186844Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DTC DETECTION CONDITION CHART

DTC Code DTC Detection Condition
  1. Diagnosis Condition
  2. Malfunction Status
  3. Malfunction Time
  4. Other
 Trouble Area
P0715
  1. +B voltage is 8 V or higher, and no speed sensor (NT) signal malfunction is detected
  2. Speed sensor (NT) voltage is below 0.1 V, or higher than 1.9 V
  3. 4.5 seconds
  4. 1 trip detection logic
  • Speed sensor (NT)
  • Transmission wire
  • Harness and connector
  • TCM
P0717
  1. When shifting between 2nd and 8th gear, output shaft speed is 1000 RPM or more, +B voltage is 8 V or higher, and PNP switch and speed sensor (NT) are normal
  2. Speed sensor (NT) value is less than 300 RPM
  3. 5 seconds
  4. 1 trip detection logic
  • Speed sensor (NT)
  • Transmission wire
  • Harness and connector
  • TCM
