DTC P0715 Input/Turbine Speed Sensor Circuit Malfunction; DTC P0717 Input Speed Sensor Circuit No Signal: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

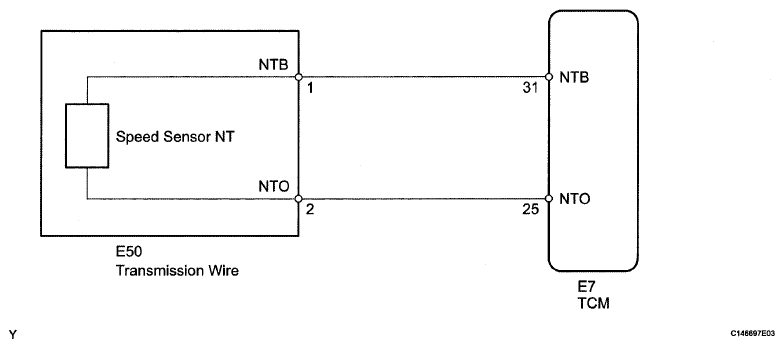

Fig 1: Transmission Wire And TCM - Wiring Diagram
G06186845Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
