DTC P2765 Input/Turbine Speed Sensor "B" Circuit; DTC P2767 Input/Turbine Speed Sensor "B" Circuit No Signal: Description
WARNING: This page is about a different variant/trim than selected.

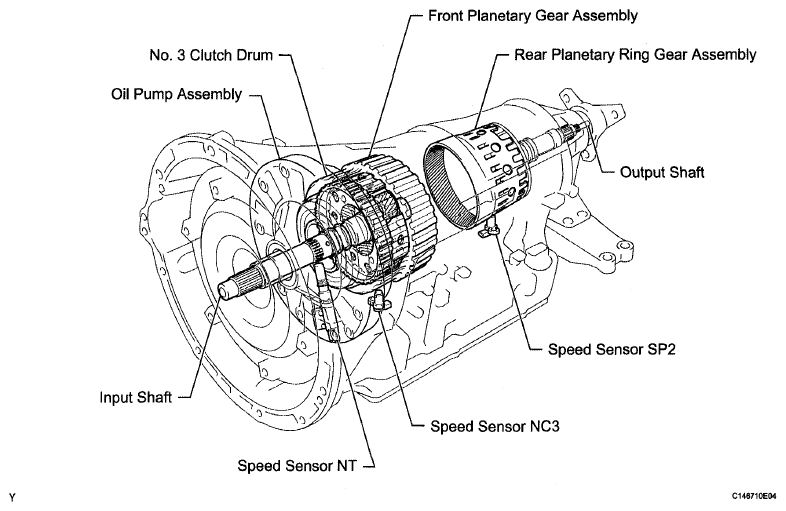

The speed sensor (NC3) detects the automatic transmission's No. 3 clutch drum rotation speed.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002 DTC DETECTION CONDITION CHART
| DTC Code |
DTC Detection Condition
- Diagnosis Condition
- Malfunction Status
- Malfunction Time
- Other
|
Trouble Area |
| P2765 |
- With the PNP switch and speed sensor (NC3) in normal condition, the output shaft speed is 1000 RPM or more (when changing to 7th gear, the output wheel speed is 1400 RPM or more)
- Speed sensor (NC3) output voltage is below 0.1 V, or 1.9 V or higher
- 4.5 seconds
- 1 trip detection logic
|
- Speed sensor (NC3)
- Transmission wire
- Harness and connector
- TCM
|
| P2767 |
- With the PNP switch and speed sensor (NC3) in normal condition, the output shaft speed is 1000 RPM or more (when changing to 7th gear, the output wheel speed is 1400 RPM or more)
- Speed sensor (NC3) sensor value is less than 300 RPM
- 5 seconds
- 1 trip detection logic
|
- Speed sensor (NC3)
- Transmission wire
- Harness and connector
- TCM
|
