Sending Units & Sensors
SENDING UNITS & SENSORS LOCATION
| Component | Location |
|---|---|
| Accelerator Position Sensor | Left side of dash. See Figure. |
| A/C Infrared Rays Sensor | Integral to right rearview mirror assembly. See Figure. |
| A/C Pressure Sensor | Left front of engine compartment. See Figure. |
| Air Fuel Ratio Sensor (Bank 1 Sensor 1) | Left rear of engine. See Figure. |
| Air Fuel Ratio Sensor (Bank 2 Sensor 1) | Right rear of engine. See Figure. |
| Ambient Temperature Sensor | Left side of bumper fascia. See Figure. |
| Battery Current Sensor | Right rear of engine compartment. See Figure. |
| Brake Stroke Sensor | Above brake pedal, on bracket. See Figure. |
| Camshaft Position Sensor | Front of right cylinder head. See Figure. |
| Crankshaft Position Sensor | Right rear of engine. See Figure. |
| Engine Coolant Temperature Sensor | Front left of engine. See Figure. |
| Engine Oil Level Sensor | Lower right side of engine. See Figure. |
| Exhaust Gas Sensor | Front center of engine compartment. See Figure. |
| Front Acceleration Sensor | Left side of dash. See Figure. |
| Front Airbag Sensor LH | Left front of engine compartment. See Figure. |
| Front Air Bag Sensor RH | Right front of engine compartment. See Figure. |
| Front Center Millimeter Wave Radar Sensor | Front center of engine compartment. See Figure. |
| Front Duct Sensor LH | Left side of dash. See Figure. |
| Front Duct Sensor RH | Right side of dash. See Figure. |
| Front Headrest Motor & Position Sensor RH | Front passenger's seat back. See Figure. |
| Front Headrest Position Sensor RH | Front passenger's seat back. See Figure. |
| Front Height Control Sensor LH | Left front wheelwell. See Figure. |
| Front Height Control Sensor RH | Right front wheelwell. See Figure. |
| Front Power Seat Cushion Position Sensor LH | Under driver's seat. See Figure. |
| Front Power Seat Position Sensor LH (Lift Position) | Under driver's seat. See Figure. |
| Front Power Seat Position Sensor LH (Reclining Position) | Under driver's seat. See Figure. |
| Front Power Seat Position Sensor LH (Slide Position) | Under driver's seat. See Figure. |
| Front Power Seat Position Sensor LH (Vertical Position) | Under driver's seat. See Figure. |
| Front Power Seat Position Sensor RH (Lift Position) | Under front passenger's seat. See Figure. |
| Front Power Seat Position Sensor RH (Reclining Position) | Under front passenger's seat. See Figure. |
| Front Power Seat Position Sensor RH (Slide Position) | Under front passenger's seat. See Figure. |
| Front Power Seat Position Sensor RH (Vertical Position) | Under front passenger's seat. See Figure. |
| Front Room Temperature Sensor | Left side of dash. See Figure. |
| Front Side Air Bag Sensor LH | Base of left "B" pillar. See Figure. |
| Front Side Air Bag Sensor RH | Base of right "B" pillar. See Figure. |
| Front Speed Sensor LH | Left front wheel hub assembly. See Figure. |
| Front Speed Sensor RH | Right front wheel hub assembly. See Figure. |
| Fuel Pressure Sensor | Top center of engine. See Figure. |
| Fuel Sender Gauge | Left side of fuel tank. See Figure. |
| Fuel Sender Gauge (Sub) | Right side of fuel tank. See Figure. |
| Heated Oxygen Sensor (Bank 1 Sensor 2) | Exhaust system, below vehicle. See Figure. |
| Heated Oxygen Sensor (Bank 2 Sensor 2) | Exhaust system, below vehicle. See Figure. |
| Knock Sensor (Bank 1 Sensor 1) | Left side of engine. See Figure. |
| Knock Sensor (Bank 1 Sensor 2) | Left side of engine. See Figure. |
| Knock Sensor (Bank 2 Sensor 1) | Right side of engine. See Figure. |
| Knock Sensor (Bank 2 Sensor 2) | Right side of engine. See Figure. |
| Light Control Sensor | Upper center of dash. See Figure. |
| Mass Air Flow Meter (Bank 1) | Top left side of engine. See Figure. |
| Mass Air Flow Meter (Bank 2) | Top right side of engine. See Figure. |
| No. 1 Ultrasonic Sensor (Front Left) | Left side of front bumper fascia. See Figure. |
| No. 1 Ultrasonic Sensor (Front Left Center) | Left side of front bumper fascia. See Figure. |
| No. 1 Ultrasonic Sensor (Front Left Side) | Left side of front bumper fascia. See Figure. |
| No. 1 Ultrasonic Sensor (Front Right) | Right side of front bumper fascia. See Figure. |
| No. 1 Ultrasonic Sensor (Front Right Center) | Right side of front bumper fascia. See Figure. |
| No. 1 Ultrasonic Sensor (Front Right Side) | Right side of front bumper fascia. See Figure. |
| No. 1 Ultrasonic Sensor (Rear Left) | Left side of rear bumper fascia. See Figure. |
| No. 1 Ultrasonic Sensor (Rear Left Center) | Left side of rear bumper fascia. See Figure. |
| No. 1 Ultrasonic Sensor (Rear Right) | Right side of rear bumper fascia. See Figure. |
| No. 1 Ultrasonic Sensor (Rear Right Center) | Right side of rear bumper fascia. See Figure. |
| Occupant Detection Sensor | Under front passenger's seat. See Figure. |
| Ottoman Reclining Sensor | Under center of rear seats. See Figure. |
| Power Steering Sensor | Front of engine compartment. See Figure. |
| Rain Sensor | Top center of windshield. See Figure. |
| Rear Acceleration Sensor | Right rear of luggage compartment. See Figure. |
| Rear Height Control Sensor LH | Left rear wheelwell. See Figure. |
| Rear Height Control Sensor RH | Right rear wheelwell. See Figure. |
| Rear Power Seat Position Sensor LH (Fold Position) | Left rear seat back. See Figure. |
| Rear Power Seat Position Sensor RH (Fold Position) | Right rear seat back. See Figure. |

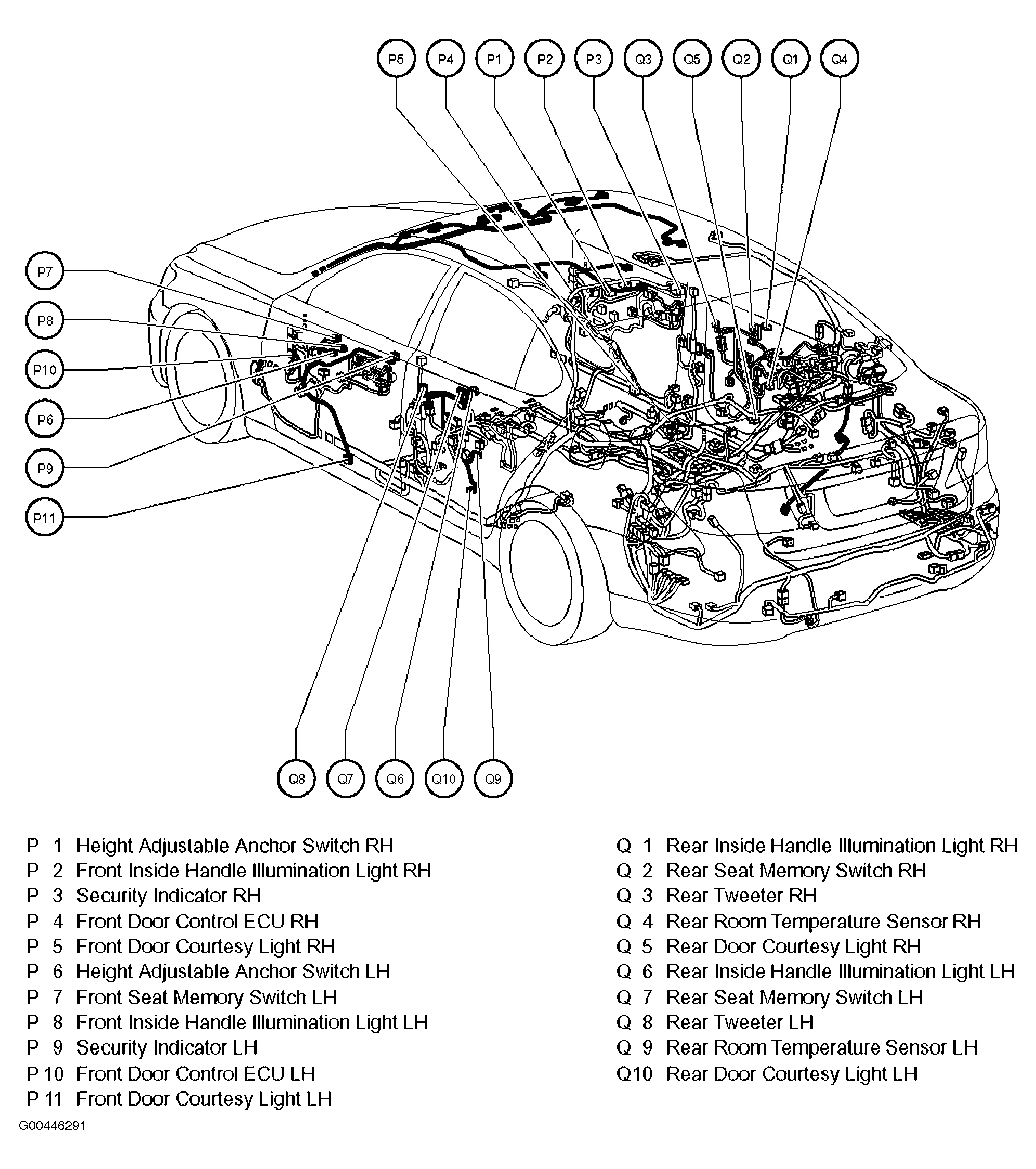

| Rear Room Temperature Sensor LH | Left rear door. See Figure. |
| Rear Room Temperature Sensor RH | Right rear door. See Figure. |
| Rear Side Air Bag Sensor LH | Left "C" pillar. See Figure. |
| Rear Side Air Bag Sensor RH | Right "C" pillar. See Figure. |
| Rear Solar Sensor | Right side of rear parcel shelf. See Figure. |
| Rear Speed Sensor LH | Left rear wheel hub assembly. See Figure. |
| Rear Speed Sensor RH | Right rear wheel hub assembly. See Figure. |
| Seat Belt Tension Sensor | Under driver's seat. See Figure. |
| Steering Angle Sensor | In steering column. See Figure. |
| Steering Torque Sensor | Front of engine compartment. See Figure. |
| Throttle Position Sensor | On throttle body. See Figure. |
| VVT Sensor (Bank 1 Exhaust Side) | Left side of engine. See Figure. |
| VVT Sensor (Bank 1 Intake Side) | Left side of engine. See Figure. |
| VVT Sensor (Bank 2 Exhaust Side) | Right side of engine. See Figure. |
| VVT Sensor (Bank 2 Intake Side) | Right side of engine. See Figure. |
| Washer Fluid Level Sensor | On washer fluid reservoir. See Figure. |
| Yaw Rate Sensor | Under center floor console. See Figure. |
