Automatic Transmission Assembly: Installation

  1. INSPECT TORQUE CONVERTER CLUTCH ASSEMBLY
    1. Inspect the torque converter clutch (see INSPECTION  ).
  2. INSTALL TORQUE CONVERTER CLUTCH ASSEMBLY

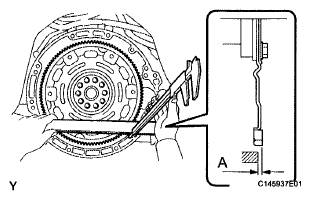

    1. Using a vernier caliper and a straightedge, measure dimension A between the transmission and the end surface of the drive plate.
      Fig 1: Measuring Dimension Between Transmission And End Surface Of Drive Plate
      G06187105Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Aligning the matchmarks on the transmission case and torque converter clutch, engage the splines of the input shaft and turbine runner.

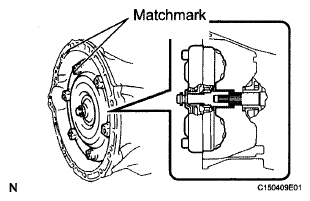

      Fig 2: Identifying Matchmarks On Transmission Case And Torque Converter Clutch
      G06187106Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

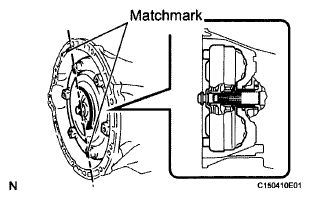

    3. Engage the splines of the stator shaft and stator while turning the torque converter clutch.

      HINT:

      Turn the torque converter clutch approximately 180°.

      Fig 3: Identifying Matchmarks On Stator Shaft
      G06187107Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Turn the torque converter clutch and align the matchmarks on the torque converter clutch and transmission case to engage the key of the oil pump drive gear into the slot on the torque converter clutch.
      NOTE: Do not push on the torque converter when aligning the matchmarks.

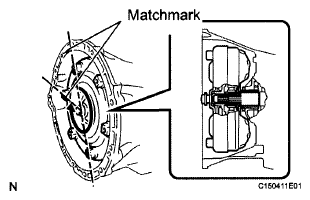

      Fig 4: Identifying Matchmarks On Torque Converter Clutch And Transmission Case
      G06187108Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Using a vernier caliper and a straightedge, measure dimension B shown in the illustration and check that B is greater than A measured in the first step.

      Standard: A + 1 mm (0.04 in.) or more

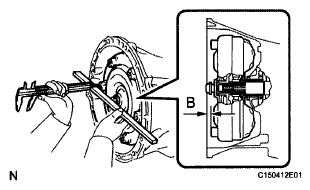

      Fig 5: Measuring Dimension Between Transmission And End Surface Of Drive Plate
      G06187109Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL NO. 1 ENGINE REAR MOUNTING INSULATOR
    1. Install the engine mounting insulator rear with the 4 bolts.

      Torque: 30 N*m (306 kgf*cm, 22 ft.*lbf)

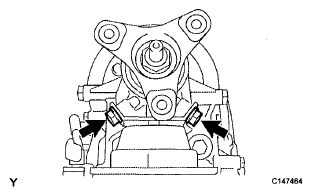

      Fig 6: Locating Engine Mounting Insulator And Bolts
      G06187110Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL AUTOMATIC TRANSMISSION ASSEMBLY
    1. Install the automatic transmission to the engine with the 10 bolts.

      Torque: Bolt A

      71 N*m (724 kgf*cm, 52 ft.*lbf) for 17 mm head bolt

      Bolt B

      37 N*m (377 kgf*cm, 27 ft.*lbf) for 14 mm head bolt

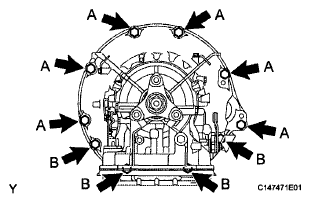

      Fig 7: Locating Automatic Transmission Bolts
      G06187111Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the 6 torque converter clutch mounting bolts.

      Torque: 48 N*m (489 kgf*cm, 35 ft.*lbf)

      HINT:

      First install the black colored bolt and then the remaining 5 bolts.

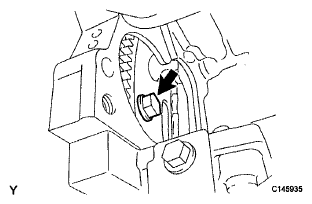

      Fig 8: Locating Crankshaft Pulley Nut
      G06187112Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the flywheel housing side cover.

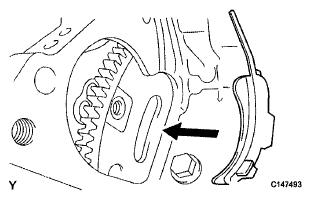

      Fig 9: Installing Flywheel Housing Side Cover
      G06187113Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

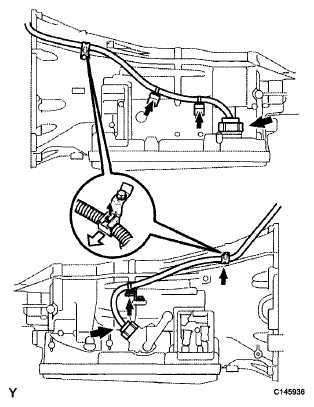

  5. CONNECT WIRE HARNESS AND CONNECTOR
    1. Connect the park/neutral position switch connector.
      Fig 10: Locating Park/Neutral Position Switch Connector
      G06187114Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the transmission wire connector.

      HINT:

      Push up the lever until the claw of the transmission wire connector makes a connection sound.

    3. Attach the 5 harness clamps to the automatic transmission.

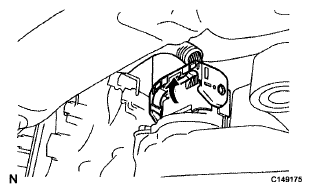

      Fig 11: Locating Wire Connector
      G06187115Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

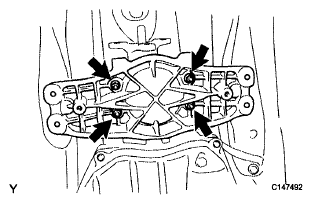

  6. INSTALL ENGINE REAR MOUNTING MEMBER
    1. Install the engine rear mounting member to the automatic transmission assembly with the 4 nuts.

      Torque: 14 N*m (143 kgf*cm, 10 ft.*lbf)

      Fig 12: Locating Mounting Member Nuts
      G06187116Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the engine rear mounting member to the body with the 4 bolts.

      Torque: 26 N*m (265 kgf*cm, 19 ft.*lbf)

    3. Tilt up the automatic transmission assembly.

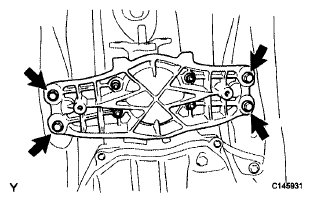

      Fig 13: Locating Engine Rear Mounting Member's Bolts
      G06187117Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Install the bolt and ground wire to the automatic transmission assembly.

      Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

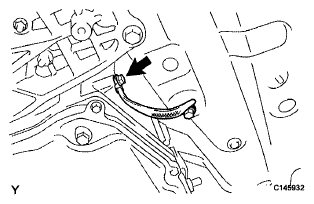

      Fig 14: Locating Bolt And Ground Wire
      G06187118Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. CONNECT OIL COOLER TUBE INLET AND OUTLET

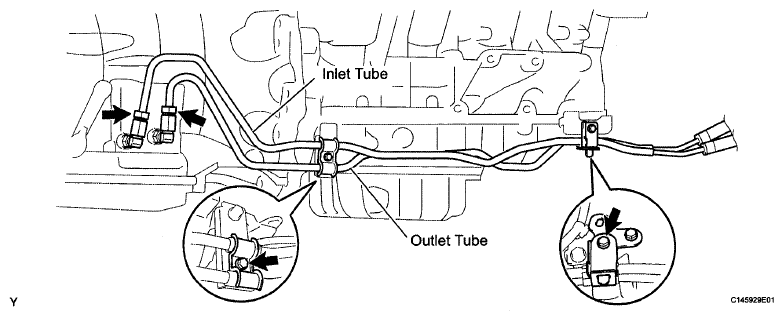

    Fig 15: Locating Oil Cooler Tube Inlet And Outlet
    G06187119Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Temporarily install the oil cooler tube inlet and outlet.
    2. Install the 2 clamps with the 2 bolts.

      Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)

    3. Using SST, tighten union nuts of the oil cooler tube inlet and outlet.

      SST 09023-12701

      Torque: without SST

      44 N*m (449 kgf*cm, 32 ft.*lbf)

      with SST

      39 N*m (398 kgf*cm, 29 ft.*lbf)

      HINT:

      Use a torque wrench with a fulcrum length of 460 mm (18.11 in.).

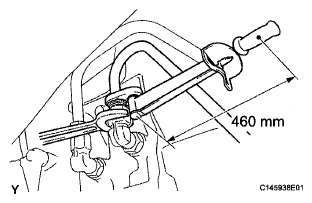

      Fig 16: Identifying Fulcrum Length
      G06187120Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL STARTER ASSEMBLY  (See INSTALLATION )
  9. INSTALL NO. 3 EXHAUST MANIFOLD HEAT INSULATOR  (See INSTALLATION )
  10. INSTALL EXHAUST MANIFOLD SUB-ASSEMBLY RH  (See INSTALLATION )
  11. INSTALL NO. 1 EXHAUST MANIFOLD HEAT INSULATOR  (See INSTALLATION )
  12. INSTALL ENGINE OIL LEVEL DIPSTICK GUIDE  (See INSTALLATION )
  13. INSTALL GENERATOR ASSEMBLY
    1. Install the generator (see INSTALLATION ).
  14. INSTALL EXHAUST MANIFOLD SUB-ASSEMBLY LH
    1. Install a new gasket.

      Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

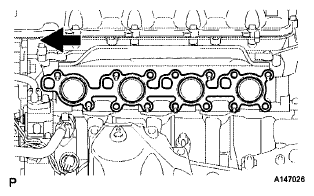

      Fig 17: Installing Exhaust Manifold Sub-Assembly
      G06187121Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the exhaust manifold to the cylinder head with the 8 nuts in the order shown in the illustration.

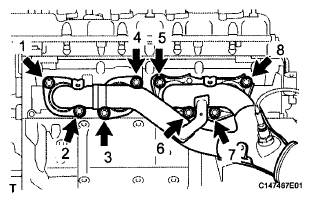

      Fig 18: Locating Exhaust Manifold Nuts
      G06187122Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

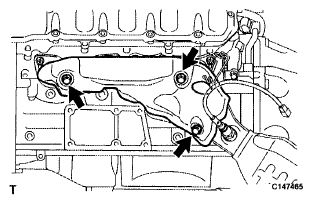

    3. Install the heat insulator with the 3 bolts.

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

      Fig 19: Locating Heat Insulator Bolts
      G06187123Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Connect the sensor connector.

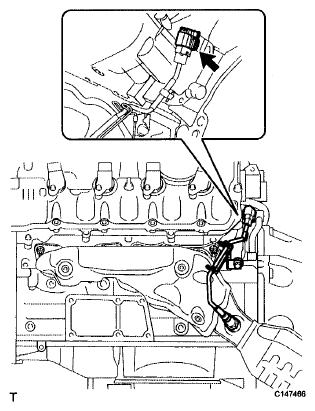

    Fig 20: Locating Air Fuel Ratio Sensor Connector
    G06187124Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. INSTALL NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY (w/o VGRS)  (See INSTALLATION )
  16. INSTALL NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY (w/ VGRS)  (See INSTALLATION )
  17. INSTALL STEERING SLIDING YOKE WITH SHAFT SUB-ASSEMBLY (w/o VGRS)  (See INSTALLATION )
  18. INSTALL STEERING SLIDING YOKE WITH SHAFT SUB-ASSEMBLY (w/VGRS)  (See INSTALLATION )
  19. INSTALL FRONT SUSPENSION MEMBER REINFORCEMENT RH
    1. Install the front suspension member reinforcement RH to the vehicle with the 4 bolts.

      Torque: 50 N*m (510 kgf*cm, 37 ft.*lbf)

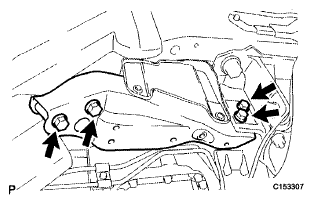

      Fig 21: Locating Front Suspension Member Reinforcement Bolts
      G06187125Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. INSTALL FRONT SUSPENSION MEMBER REINFORCEMENT LH
    1. Install the front suspension member reinforcement LH to the vehicle with the 4 bolts.

      Torque: 50 N*m (510 kgf*cm, 37 ft.*lbf)

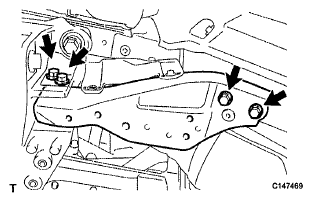

      Fig 22: Locating Front Suspension Member Reinforcement Bolts
      G06187126Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

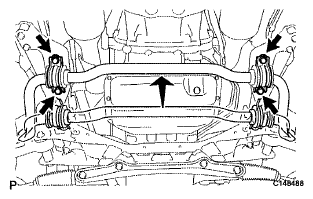

  21. CONNECT FRONT STABILIZER BAR
    1. Connect the stabilizer bar to the rear brace with the 4 bolts.

      Torque: 49 N*m (500 kgf*cm, 36 ft.*lbf)

      Fig 23: Locating Stabilizer Bar Bolts
      G06187127Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. INSTALL ENGINE UNDER COVER REAR RH  (See INSTALLATION )
  23. INSTALL ENGINE UNDER COVER REAR LH  (See INSTALLATION )

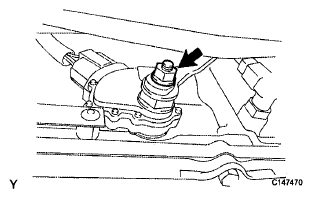

  24. INSTALL TRANSMISSION CONTROL SHAFT LEVER RH
    1. Install the transmission control shaft lever with the nut.

      Torque: 16 N*m (163 kgf*cm, 12 ft.*lbf)

      Fig 24: Locating Transmission Control Shaft Lever Nut
      G06187128Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  25. CONNECT FLOOR SHIFT GEAR SHIFTING ROD SUB-ASSEMBLY
    1. Temporarily connect the shifting rod to the connecting rod swivel with the nut.

      HINT:

      The nut will be tightened to a torque specification during the shift lever position adjustment procedure.

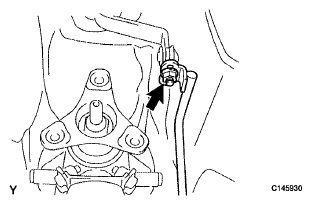

      Fig 25: Locating Gear Shifting Rod Nut
      G06187129Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

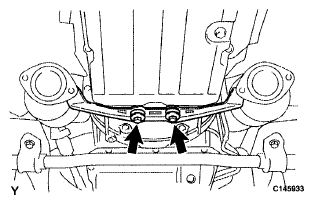

  26. INSTALL NO. 1 EXHAUST PIPE SUPPORT BRACKET SUB-ASSEMBLY
    1. Install the bracket with the 2 bolts.

      Torque: 43 N*m (438 kgf*cm, 32 ft.*lbf)

      Fig 26: Locating Drain Plug
      G06187130Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  27. INSTALL PROPELLER WITH CENTER BEARING SHAFT ASSEMBLY
    1. Install the propeller with center bearing shaft (see INSTALLATION ).
  28. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  29. INSTALL COWL TOP VENTILATOR LOUVER  (See INSTALLATION )
  30. ADJUST SHIFT LEVER POSITION (See  ADJUSTMENT   )
  31. INSPECT SHIFT LEVER POSITION (See  ON-VEHICLE INSPECTION   )
  32. ADD AUTOMATIC TRANSMISSION FLUID
    1. Add the automatic transmission fluid (see AUTOMATIC TRANSMISSION FLUID  ).
  33. CHECK AUTOMATIC TRANSMISSION SYSTEM PRECAUTION
    1. After replacing the automatic transmission assembly, certain procedures are necessary (see PRECAUTION  ).
  34. PERFORM INITIALIZATION
    1. Perform initialization (see INITIALIZATION ).
      NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
