Inspection Procedure

  1. INSPECT TRANSMISSION CONTROL SWITCH
    1. Disconnect the L42 transmission control switch connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      RESISTANCE SPECIFICATION

      Tester Connection Condition Specified Condition
      3 (IG) - 7(S) Shift lever in S, "+" or "-" Below 1 Ω
      2 (SFTU) - 5 (E) Shift lever held in "+" (Up-shift) Below 1 Ω
      1 (SFTD) - 5 (E) Shift lever held in "-" (Down-shift) Below 1 Ω
      3(IG) - 7(S) Shift lever not in S, "+" or "-" 10 kΩ or higher
      2 (SFTU) - 5 (E) Shift lever in S 10 kΩ or higher
      1 (SFTD) - 5 (E) Shift lever in S 10 kΩ or higher

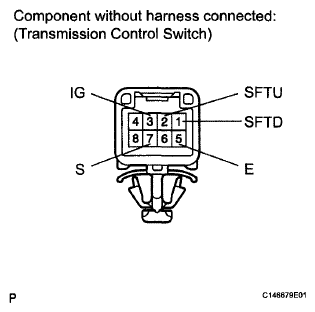

      Fig 1: Identifying Transmission Control Switch Connector Terminals
      G06186913Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      NG: REPLACE TRANSMISSION FLOOR SHIFT ASSEMBLY (TRANSMISSION CONTROL SWITCH) (See  REMOVAL   )

      OK: Go to Next Step

  2. CHECK HARNESS AND CONNECTOR (TRANSMISSION CONTROL SWITCH - BATTERY, BODY GROUND)
    1. Disconnect the L42 transmission control switch connector.
    2. Turn the engine switch on (IG).
    3. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      VOLTAGE SPECIFICATION

      Tester Connection Switch Condition Specified Condition
      L42-3 (IG) - Body ground Engine switch on (IG) 11 to 14 V
      L42-3 (IG) - Body ground Engine switch off Below 1 V

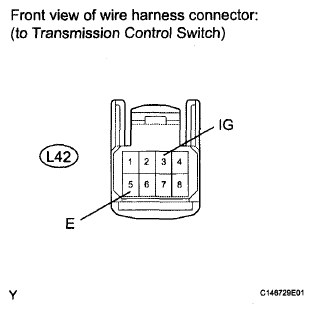

      Fig 2: Identifying L42 Transmission Control Switch Connector Terminal
      G06186914Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Turn the engine switch off.
    5. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      RESISTANCE SPECIFICATION

      Tester Connection Condition Specified Condition
      L42-5 (E) - Body ground Always Below 1 Ω

      NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

      OK: Go to Next Step

  3. CHECK HARNESS AND CONNECTOR (TRANSMISSION CONTROL SWITCH - ECM)
    1. Turn the engine switch on (IG).
    2. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      VOLTAGE SPECIFICATION

      Tester Connection Condition Specified Condition
      A13-16(S) - Body ground
      • Engine switch on (IG)
      • Shift lever in S, "+" or "-"
      		 11 to 14 V
      A13-16(S) - Body ground
      • Engine switch on (IG)
      • Shift lever not in S, "+" or "-"
      		 Below 1 V
      Fig 3: Identifying A13 ECM Connector Terminals
      G06186915Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Turn the engine switch off.
    4. Disconnect the A13 ECM connector.
    5. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      RESISTANCE SPECIFICATION

      Tester Connection Condition Specified Condition
      A13-8 (SFTU) - Body ground Shift lever held in "+" (Up-shift) Below 1 Ω
      A13-7(SFTD) - Body ground Shift lever held in "-" (Down-shift) Below 1 Ω
      A13-8 (SFTU) - Body ground Shift lever in S 10 kΩ or higher
      A13-7 (SFTD) - Body ground Shift lever in S 10 kΩ or higher
      Fig 4: Identifying A13 ECM Connector Terminals
      G06186916Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

      OK: PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE (See  PROBLEM SYMPTOMS TABLE   )
