Automatic Transmission Unit: Components

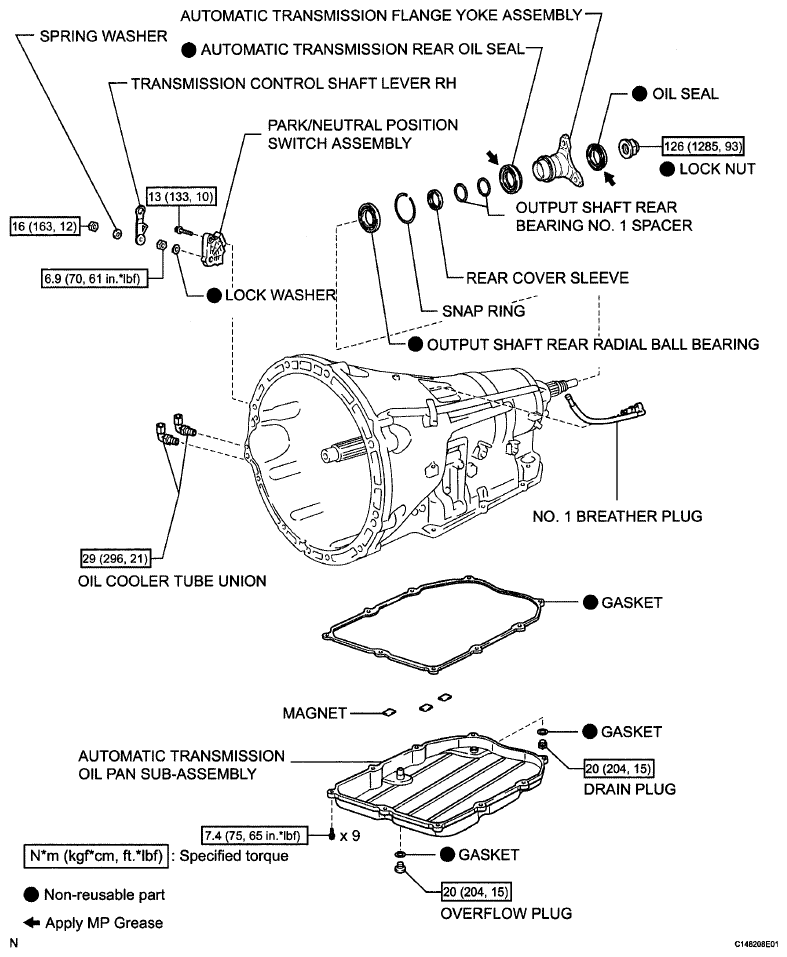

Fig 1: Automatic Transmission Unit Components With Torque Specifications (1 Of 7)
G06187139Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

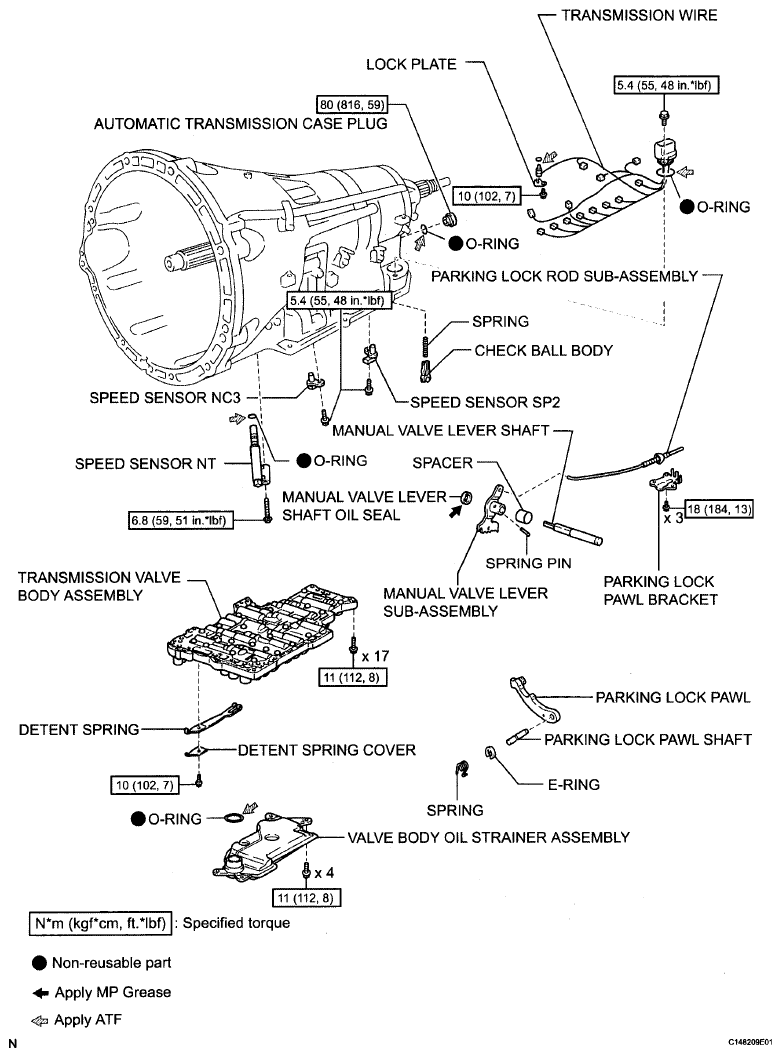

Fig 2: Automatic Transmission Unit Components With Torque Specifications (2 Of 7)
G06187140Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

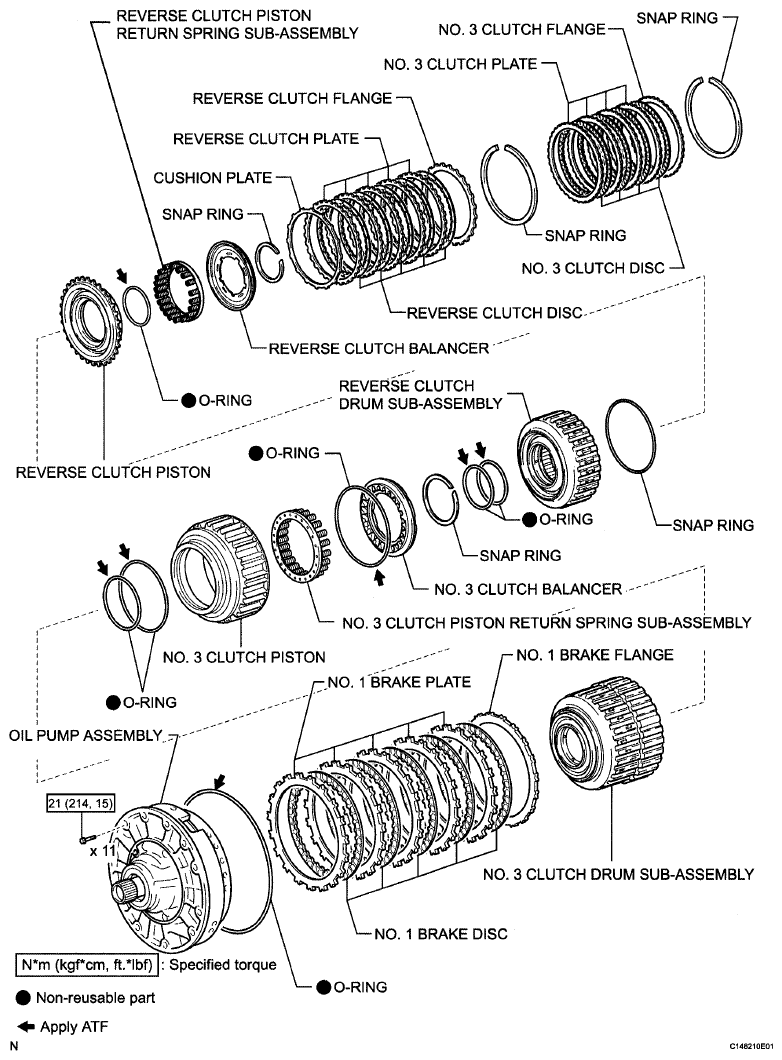

Fig 3: Automatic Transmission Unit Components With Torque Specifications (3 Of 7)
G06187141Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

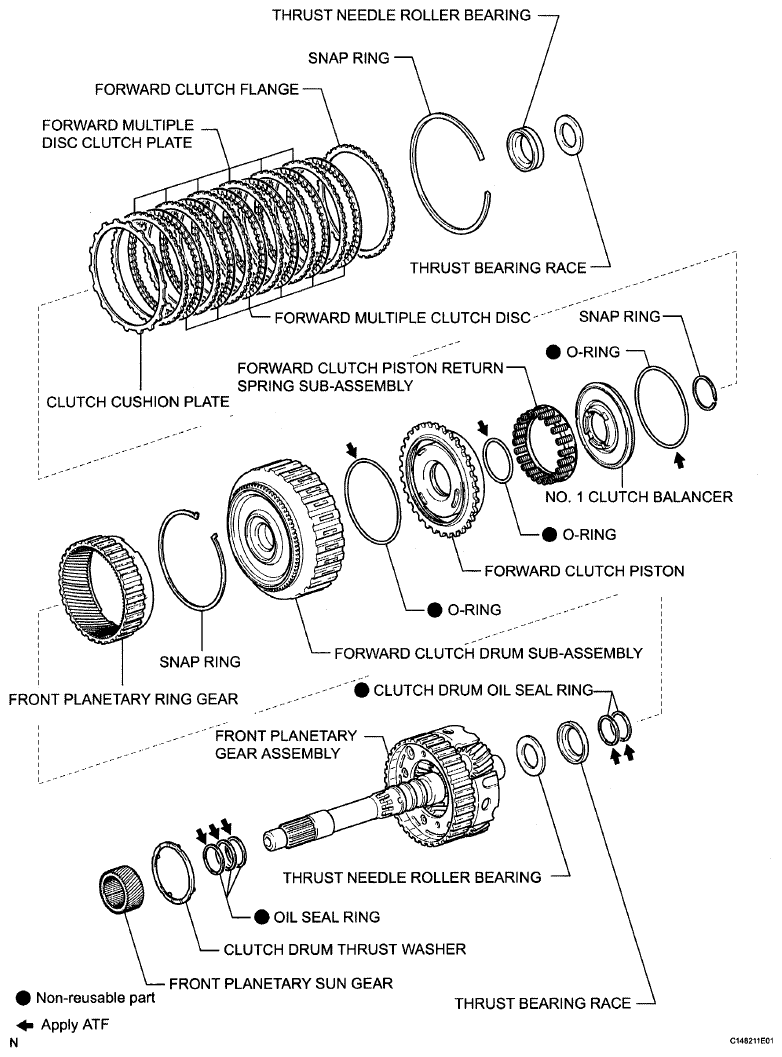

Fig 4: Identifying Automatic Transmission Unit Components (4 Of 7)
G06187142Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

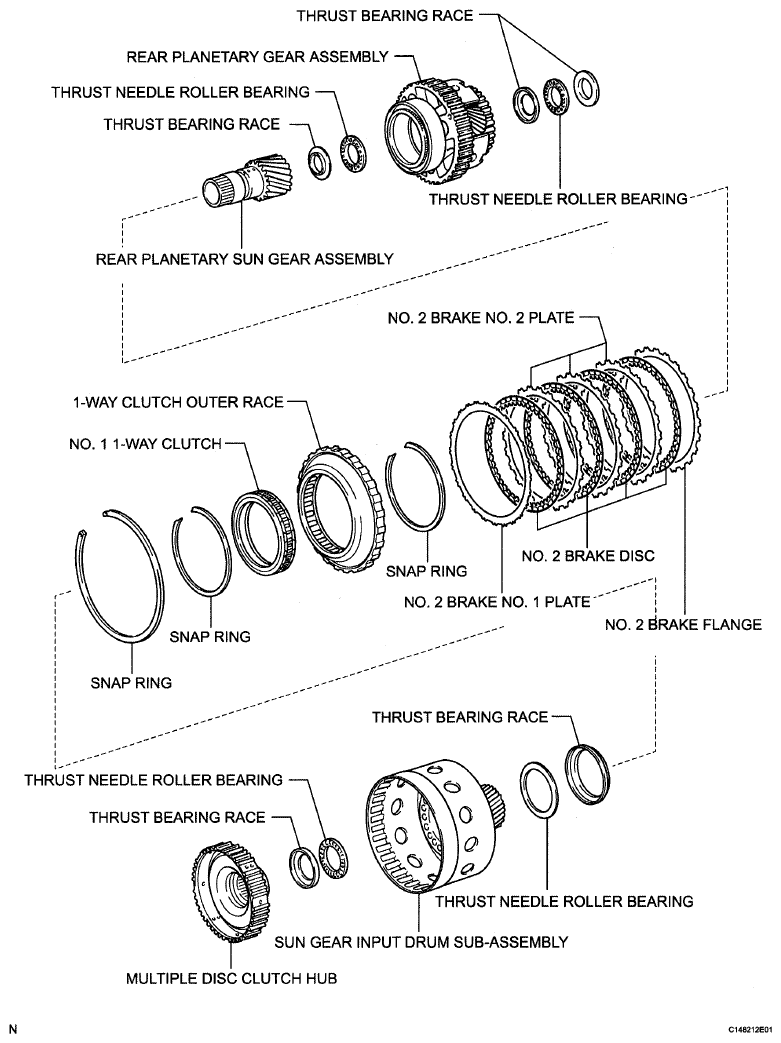

Fig 5: Identifying Automatic Transmission Unit Components (5 Of 7)
G06187143Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

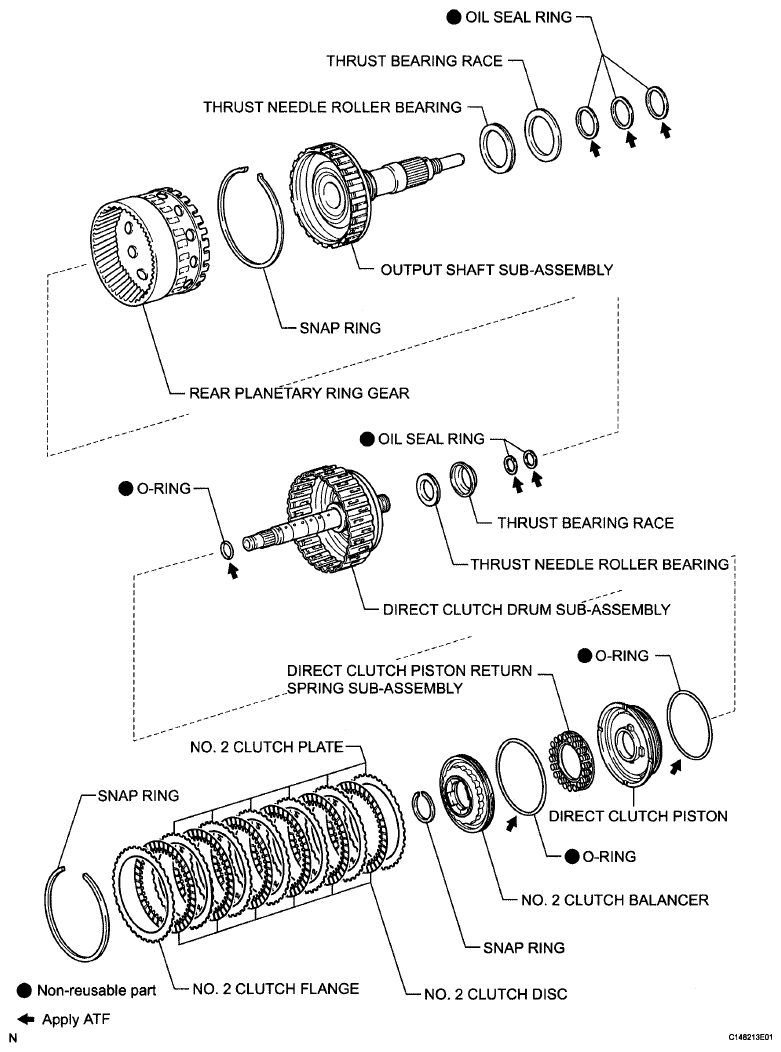

Fig 6: Identifying Automatic Transmission Unit Components (6 Of 7)
G06187144Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

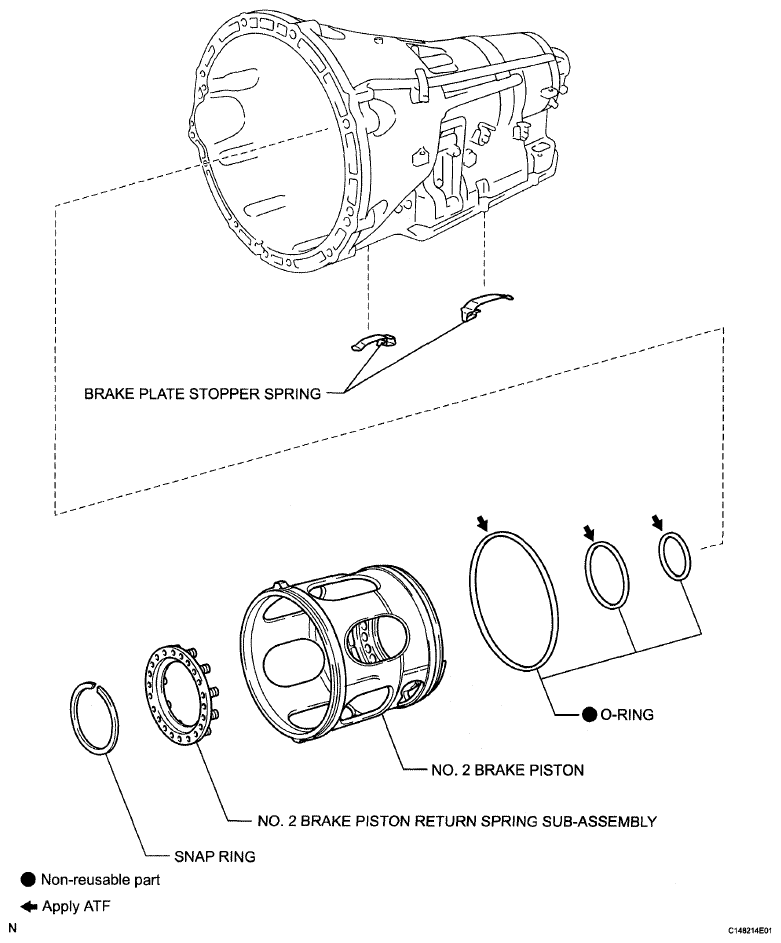

Fig 7: Identifying Automatic Transmission Unit Components (7 Of 7)
G06187145Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
