Automatic Transmission Unit: Inspection

  1. INSPECT NO. 1 BRAKE DISC
    1. Replace all discs if one of the following problems is present: 1) a disc, plate or flange is worn or burnt; 2) the lining of a disc is peeled off or discolored; or 3) grooves or printed numbers have even a little bit of damage.
      NOTE: Before assembling new discs, soak them in ATF for at least 2 hours.
      Fig 1: Inspecting No. 1 Brake Disc
      G06187220Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSPECT FRONT PLANETARY GEAR ASSEMBLY
    1. Using a feeler gauge, measure the front planetary gear pinion thrust clearance.

      Standard clearance: 0.2 to 0.6 mm (0.008 to 0.024 in.)

      If the clearance is not as specified, replace the front planetary gear assembly.

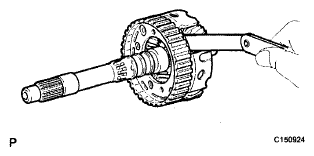

      Fig 2: Measuring Thrust Clearance Of Front Planetary Gear Pinion
      G06187221Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSPECT NO. 3 CLUTCH DISC
    1. Replace all discs if one of the following problems is present: 1) a disc, plate or flange is worn or burnt; 2) the lining of a disc is peeled off or discolored; or 3) grooves or printed numbers have even a little bit of damage.
      NOTE: Before assembling new discs, soak them in ATF for at least 2 hours.

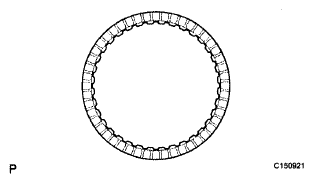

      Fig 3: Identifying No. 3 Clutch Disc
      G06187222Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSPECT REVERSE CLUTCH DISC
    1. Replace all discs if one of the following problems is present: 1) a disc, plate or flange is worn or burnt; 2) the lining of a disc is peeled off or discolored; or 3) grooves or printed numbers have even a little bit of damage.
      NOTE: Before assembling new discs, soak them in ATF for at least 2 hours.

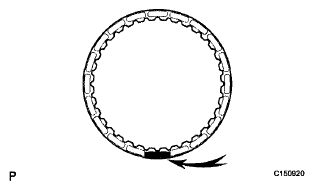

      Fig 4: Inspecting Reverse Clutch Disc
      G06187223Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSPECT REVERSE CLUTCH RETURN SPRING SUB-ASSEMBLY
    1. Using a vernier caliper, measure the free length of the spring together with the spring seat.

      Standard free length:

      22.21 mm (0.8744 in.)

      If the free length is shorter than the standard free length, replace the reverse clutch return spring sub-assembly.

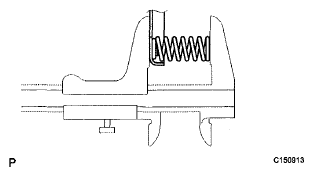

      Fig 5: Measuring Free Length Of Spring
      G06187224Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSPECT OVERDRIVE CLUTCH RETURN SPRING SUB-ASSEMBLY
    1. Using a vernier caliper, measure the free length of the spring together with the spring seat.

      Standard free length:

      21.09 mm (0.8303 in.)

      If the free length is shorter than the standard free length, replace the forward clutch return spring sub-assembly.

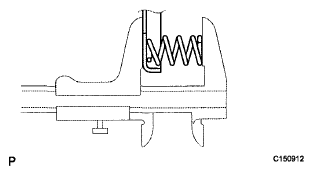

      Fig 6: Measuring Free Length Of Spring With Spring Seat
      G06187225Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSPECT NO. 3 CLUTCH DRUM SUB-ASSEMBLY
    1. Using a caliper gauge, measure the inside diameter of the overdrive and reverse multiple disc clutch drum bush.

      Standard inside diameter for front side:

      67.40 to 67.44 mm (2.6535 to 2.6551 in.)

      Standard inside diameter for rear side:

      55.62 to 55.64 mm (2.1898 to 2.1905 in.)

      If the inside diameter is not as specified, replace the overdrive and reverse multiple disc clutch drum.

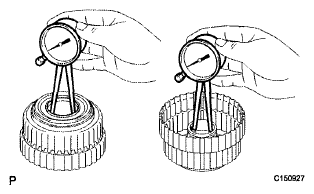

      Fig 7: Measuring Inside Diameter Of Multiple Disc Clutch Drum Bush
      G06187226Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSPECT FORWARD MULTIPLE CLUTCH DISC
    1. Replace all discs if one of the following problems is present: 1) a disc, plate or flange is worn or burnt; 2) the lining of a disc is peeled off or discolored; or 3) grooves or printed numbers have even a little bit of damage.
      NOTE: Before assembling new discs, soak them in ATF for at least 2 hours.

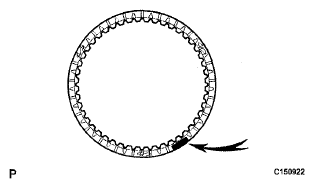

      Fig 8: Inspecting Forward Multiple Clutch Disc
      G06187227Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. INSPECT FORWARD CLUTCH RETURN SPRING SUB-ASSEMBLY
    1. Using a vernier caliper, measure the free length of the spring together with the spring seat.

      Standard free length:

      20.82 mm (0.8197 in.)

      If the free length is shorter than the standard free length, replace the forward clutch return spring sub-assembly.

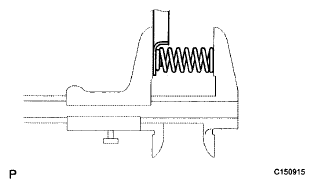

      Fig 9: Measuring Free Length Of Spring With Spring Seat
      G06187228Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. INSPECT FORWARD CLUTCH DRUM SUB-ASSEMBLY
    1. Using a caliper gauge, measure the inside diameter of the forward clutch drum bush.

      Standard inside diameter: 33.200 to 33.225 mm (1.3071 to 1.3081 in.)

      If the inside diameter is not as specified, replace the forward clutch drum sub-assembly.

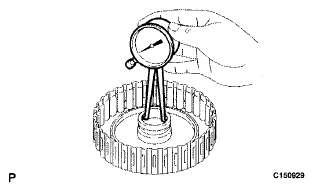

      Fig 10: Measuring Inside Diameter Of Forward Clutch Drum Bush
      G06187229Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. INSPECT SUN GEAR INPUT DRUM SUB-ASSEMBLY
    1. Using a caliper gauge, measure the inside diameter of the sun gear input drum bush.

      Standard inside diameter: 45.075 to 45.100 mm (1.7746 to 1.7756 in.)

      If the inside diameter is not as specified, replace the sun gear input drum sub-assembly.

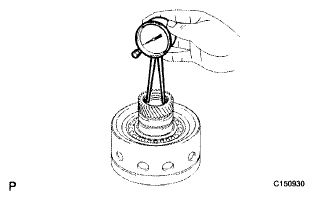

      Fig 11: Measuring Inside Diameter Of Sun Gear Input Drum Bush
      G06187230Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. INSPECT REAR PLANETARY SUN GEAR ASSEMBLY
    1. Using a caliper gauge, measure the inside diameter of the rear planetary sun gear bush.

      Standard inside diameter: 28.700 to 28.721 mm (1.1299 to 1.1307 in.)

      If the inside diameter is not as specified, replace the rear planetary sun gear assembly.

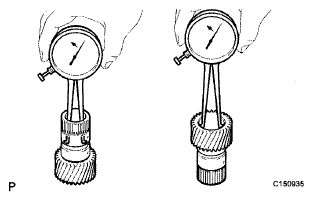

      Fig 12: Measuring Inside Diameter Of Rear Planetary Sun Gear Bush
      G06187231Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. INSPECT REAR PLANETARY GEAR ASSEMBLY
    1. Using a feeler gauge, measure the rear planetary gear pinion long and short thrust clearance.

      Standard clearance: 0.2 to 0.6 mm (0.008 to 0.024 in.)

      If the clearance is not as specified, replace the rear planetary gear assembly.

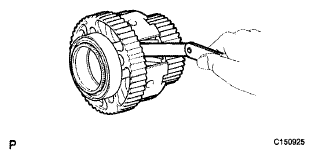

      Fig 13: Measuring Rear Planetary Gear Pinion Long And Short Thrust Clearance
      G06187232Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a caliper gauge, measure the inside diameter of the rear planetary gear bush.

      Standard inside diameter for front side: 71.60 to 71.63 mm (2.8189 to 2.8201 in.)

      Standard inside diameter for rear side: 28.700 to 28.721 mm (1.1299 to 1.1307 in.)

      If the inside diameter is not as specified, replace the rear planetary gear assembly.

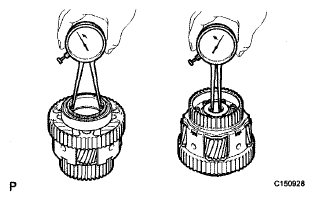

      Fig 14: Measuring Inside Diameter Of Rear Planetary Gear Bush
      G06187233Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. INSPECT NO. 1 1-WAY CLUTCH
    1. Set the 1-way clutch to the rear planetary gear.
    2. Hold the rear planetary gear assembly and turn the 1-way clutch.
    3. Check that the 1-way clutch turns freely counterclockwise and locks clockwise.

      If there is a problem with the 1-way clutch, replace it.

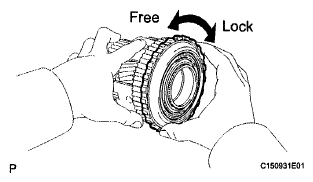

      Fig 15: Inspecting No. 1 1-Way Clutch
      G06187234Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. INSPECT NO. 2 BRAKE DISC
    1. Replace all discs if one of the following problems is present: 1) a disc, plate or flange is worn or burnt; 2) the lining of a disc is peeled off or discolored; or 3) grooves or printed numbers have even a little bit of damage.
      NOTE: Before assembling new discs, soak them in ATF for at least 2 hours.

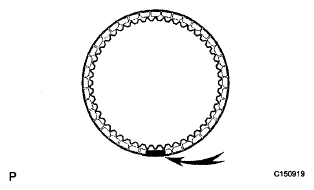

      Fig 16: Inspecting No. 2 Brake Disc
      G06187235Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. INSPECT NO. 2 CLUTCH DISC
    1. Replace all discs if one of the following problems is present: 1) a disc, plate or flange is worn or burnt; 2) the lining of a disc is peeled off or discolored; or 3) grooves or printed numbers have even a little bit of damage.
      NOTE: Before assembling new discs, soak them in ATF for at least 2 hours.

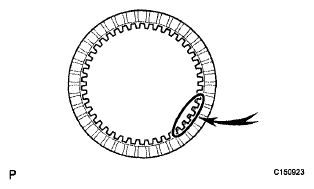

      Fig 17: Inspecting No. 2 Clutch Disc
      G06187236Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. INSPECT DIRECT CLUTCH RETURN SPRING SUB-ASSEMBLY
    1. Using a vernier caliper, measure the free length of the spring together with the spring seat.

      Standard free length:

      20.76 mm (0.8173 in.)

      If the free length is shorter than the standard free length, replace the direct clutch return spring sub-assembly.

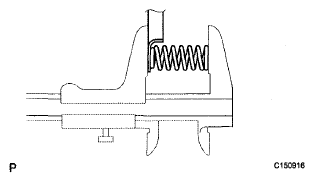

      Fig 18: Measuring Free Length Of Spring With Spring Seat
      G06187237Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. INSPECT 2ND BRAKE PISTON RETURN SPRING SUB-ASSEMBLY
    1. Using a vernier caliper, measure the free length of the spring together with the spring seat.

      Standard free length:

      23.36 mm (0.9197 in.)

      If the free length is shorter than the standard free length, replace the 2nd brake piston return spring sub-assembly.

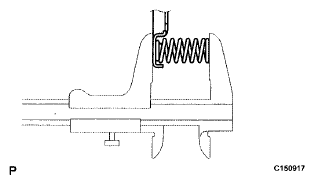

      Fig 19: Measuring Free Length Of Spring With Spring Seat
      G06187238Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. INSPECT AUTOMATIC TRANSMISSION CASE SUB-ASSEMBLY
    1. Using a caliper gauge, measure the inside diameter of the automatic transmission case sleeve bush.

      Standard inside diameter: 49.07 to 49.155 mm (1.9319 to 1.9352 in.)

      If the inside diameter is not as specified, replace the automatic transmission case sub-assembly.

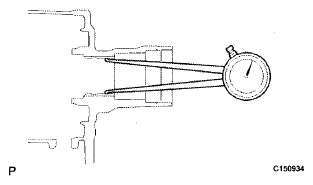

      Fig 20: Measuring Inside Diameter Of Automatic Transmission Case Sleeve Bush
      G06187239Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
