Park/Neutral Position Switch: Components

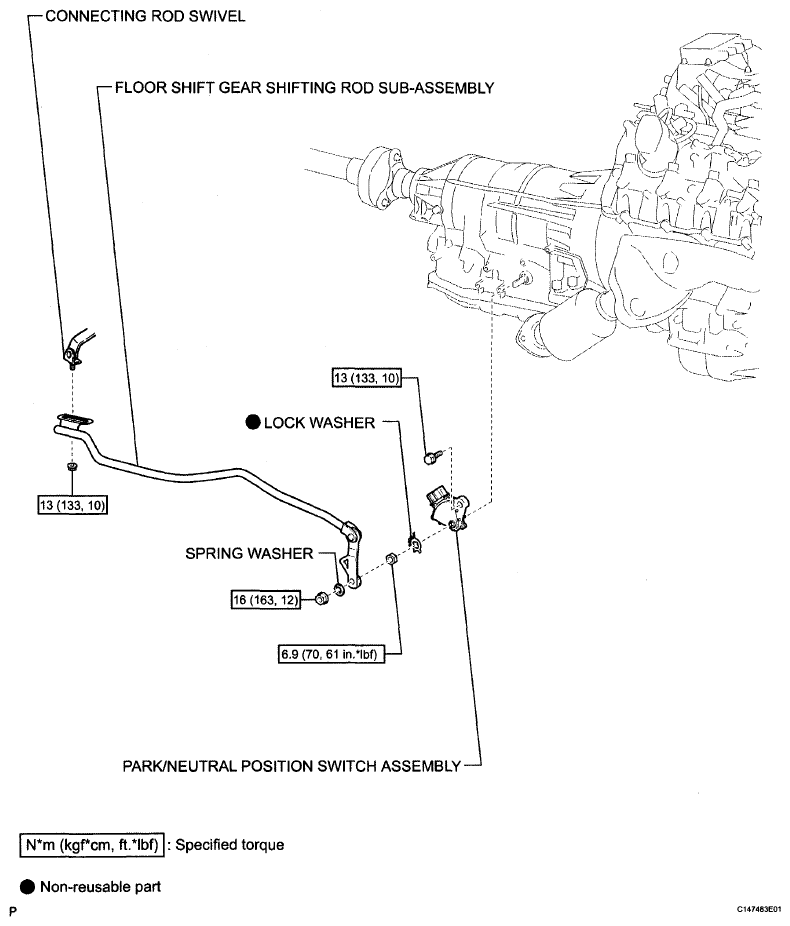

Fig 1: Park / Neutral Position Switch Replacement Components With Torque Specifications
G06186987Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
