Park/Neutral Position Switch: Installation

INSTALL PARK/NEUTRAL POSITION SWITCH ASSEMBLY
1. Install the switch to the manual valve shaft.
2. Temporarily install the bolt.

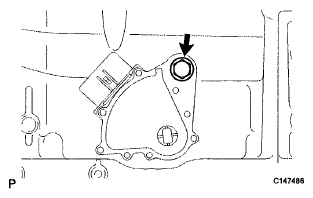

  Fig 1: Locating Park/Neutral Position Switch Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install a new lock washer with the nut.
  Torque: 6.9 N*m (70 kgf*cm, 61 in.*lbf)

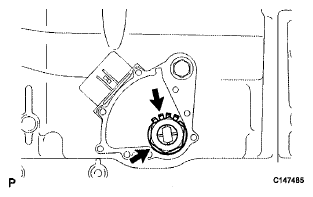

  Fig 2: Locating Lock Nut And Lock Washer
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Temporarily install the control shaft lever.

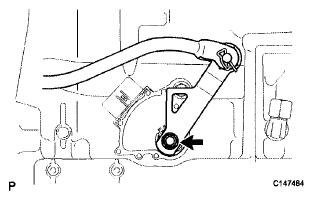

  Fig 3: Locating Transmission Control Shaft Lever Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Turn the control shaft lever counterclockwise until it stops, and then turn it clockwise 2 notches to set it to the N position.
6. Remove the control shaft lever.

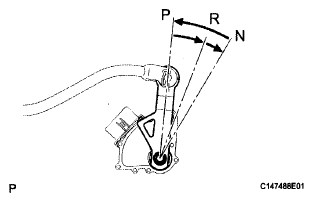

  Fig 4: Identifying Control Shaft Lever Position
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. Align the groove with the neutral basic line.
8. Hold the switch in this position and tighten the bolt.
  Torque: 13 N*m (133 kgf*cm, 10 ft.*lbf)

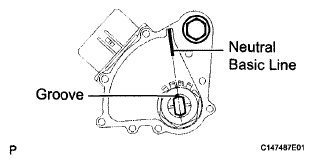

  Fig 5: Aligning Groove With Neutral Basic Line
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
9. Using a screwdriver, bend the tabs of the lock washer.
  HINT:

  Bend at least 2 washer tabs.

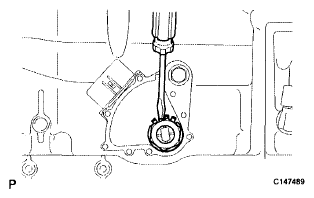

  Fig 6: Prying Lock Washer
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
10. Install the transmission control shaft lever with the spring washer and nut.
  Torque: 16 N*m (163 kgf*cm, 12 ft.*lbf)
11. Connect the switch connector.

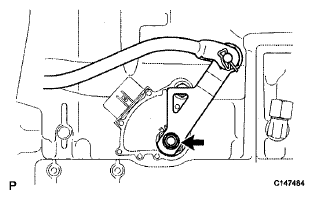

  Fig 7: Locating Transmission Control Shaft Lever Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT FLOOR SHIFT GEAR SHIFTING ROD SUB-ASSEMBLY
1. Temporarily connect the shifting rod to the connecting rod swivel with the nut.
  HINT:

  The nut will be tightened to a torque specification during the shift lever position adjustment procedure.

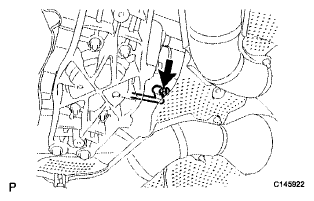

  Fig 8: Locating Floor Shift Gear Shifting Rod
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
INSTALL COWL TOP VENTILATOR LOUVER (See INSTALLATION )
ADJUST SHIFT LEVER POSITION
1. Adjust the shift lever position (see ADJUSTMENT ).
INSPECT PARK/NEUTRAL POSITION SWITCH ASSEMBLY
1. Inspect the switch (see ON-VEHICLE INSPECTION ).
PERFORM INITIALIZATION
1. Perform initialization (see INITIALIZATION ).
  NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
