Shift Lock System: Inspection

INSPECT SHIFT LOCK SOLENOID

Measure the resistance according to the value in the table below.

HINT:

Disconnect the solenoid connector.

Standard resistance

RESISTANCE SPECIFICATION

Tester Connection	Condition	Specified Condition
3 (SLS-) - 4 (SLS+)	Always	104 to 126 Ω

If the result is not as specified, replace the transmission floor shift assembly.

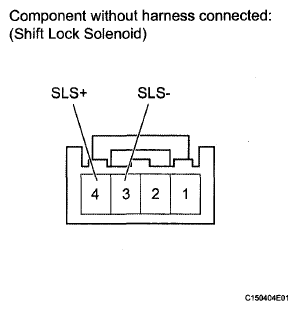

Fig 1: Identifying Shift Lock Solenoid Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Measure the resistance according to the values in the table below.

HINT:

Disconnect the solenoid connector.

Standard resistance

RESISTANCE SPECIFICATION

Tester Connection	Condition	Specified Condition
1 (P+) - 2 (P-)	Push parking position switch	10 kΩ or higher
1 (P+) - 2 (P-)	Release parking position switch	Below 1 Ω

If the result is not as specified, replace the transmission floor shift assembly.

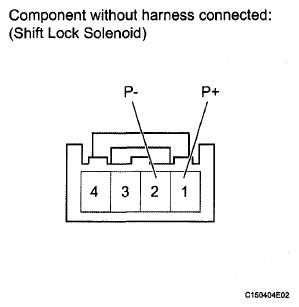

Fig 2: Identifying Shift Lock Solenoid P- And P+ Connector Terminals
