Speed Sensor: Installation

  1. INSTALL SPEED SENSOR SP2
    1. Install the speed sensor to the transmission case with the bolt.

      Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

    2. Connect the sensor connector.

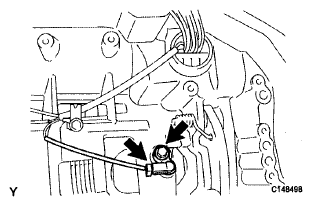

      Fig 1: Locating Speed Sensor SP2 With Bolt
      G06186949Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL SPEED SENSOR NC3
    1. Install the speed sensor to the transmission case with the bolt.

      Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

    2. Connect the sensor connector.

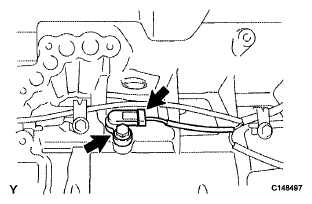

      Fig 2: Locating Speed Sensor NC3 With Bolt
      G06186950Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL SPEED SENSOR NT
    1. Coat a new O-ring with ATF and install it to the speed sensor.
    2. Using a T30 "TORX" wench, install the speed sensor with the bolt.

      Torque: 6.8 N*m (69 kgf*cm, 60 in.*lbf)

    3. Connect the sensor connector.

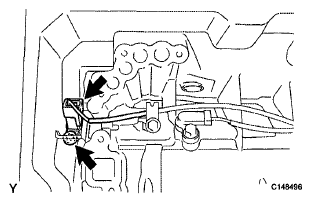

      Fig 3: Locating Speed Sensor NT With Bolt
      G06186951Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL TRANSMISSION VALVE BODY ASSEMBLY
    1. Install the spring and check ball body.

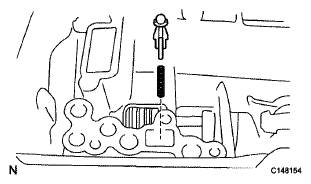

      Fig 4: Identifying Check Ball Body And Spring
      G06186952Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Align the groove of the manual valve with the lever pin.

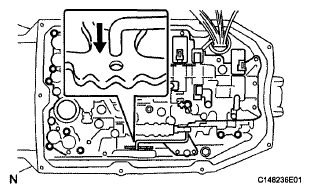

      Fig 5: Aligning Groove Of Manual Valve With Lever Pin
      G06186953Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the 17 bolts.

      Torque: 11 N*m (112 kgf*cm, 8 ft.*lbf)

      HINT:

      Each bolt length is indicated below.

      Bolt length:

      21 mm (0.83 in.) for bolt A

      31 mm (1.22 in.) for bolt B

      64 mm (2.52 in.) for bolt C

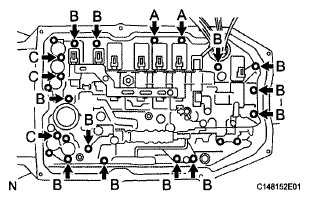

      Fig 6: Locating Transmission Case Bolts
      G06186954Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Install the detent spring and detent spring cover with the bolt.
      NOTE: Make sure to install the detent spring so that its roller is perpendicularly at the center of the manual valve lever.

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

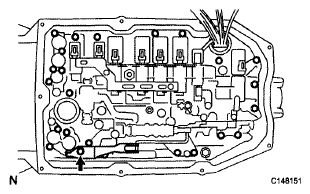

      Fig 7: Locating Detent Spring And Bolt
      G06186955Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Connect the 8 connectors to the solenoid valves.
    6. Connect the oil pressure switch connector.
    7. Coat a new O-ring with ATF and install it to the ATF temperature sensor.
    8. Install the ATF temperature sensor and lock plate with the bolt.

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

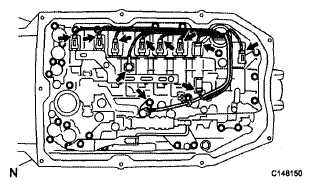

      Fig 8: Locating Solenoid Valves Connectors
      G06186956Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL VALVE BODY OIL STRAINER ASSEMBLY
    1. Coat a new O-ring with ATF and install it to the oil strainer.
      NOTE: Ensure that the O-ring is not twisted or pinched.

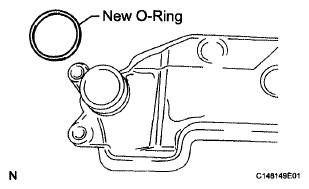

      Fig 9: Identifying O-Ring With ATF
      G06186957Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the oil strainer to the valve body with the 4 bolts.

      Torque: 11 N*m (112 kgf*cm, 8 ft.*lbf)

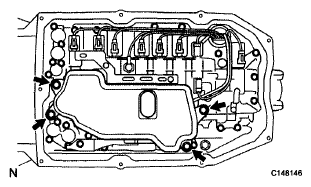

      Fig 10: Locating Oil Strainer Bolts
      G06186958Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL AUTOMATIC TRANSMISSION OIL PAN SUB-ASSEMBLY
    1. Install the 3 magnets to the oil pan.

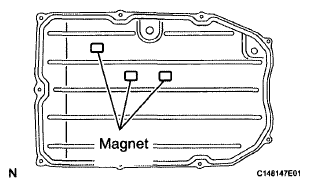

      Fig 11: Identifying Magnets To Oil Pan
      G06186959Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install a new gasket and the oil pan to the transmission case with the 9 bolts.

      Torque: 7.4 N*m (75 kgf*cm, 65 in.*lbf)

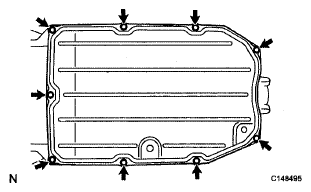

      Fig 12: Locating Automatic Transmission Oil Pan Bolts
      G06186960Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Make sure that there is no oil or foreign matter on the gasket seal surface and oil pan contact surface.
      • Install the gasket so that there is no slack in the gasket, and that the seal surface's entire circumference is level.
      • Make sure that the 9 gasket drop prevention protrusions are set on the oil pan.
      • When tightening the oil pan, make sure that the gasket is not pinched between the gasket tightening area's sleeve and the transmission's seal surface.

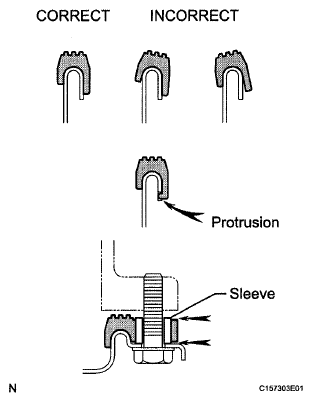

      Fig 13: Identifying Correct And Incorrect Seal Surface Area
      G06186961Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  8. INSTALL COWL TOP VENTILATOR LOUVER  (See INSTALLATION )
  9. ADD AUTOMATIC TRANSMISSION FLUID
    1. Add automatic transmission fluid (see AUTOMATIC TRANSMISSION FLUID  ).
  10. PERFORM INITIALIZATION
    1. Perform initialization (see INITIALIZATION ).
      NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
